Product Details:
Payment & Shipping Terms:
|
| External Size: | 158*90*64mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Function: | Waterproof, Dustproof | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Application: | Electric | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
| Payment: | Western Union, T/T, Paypal | ||
| Highlight: | 158*90*64mm Wall Mount Plastic Enclosure,dustproof Wall Mount Plastic Enclosure,3mm thinkness abs project boxes |
||

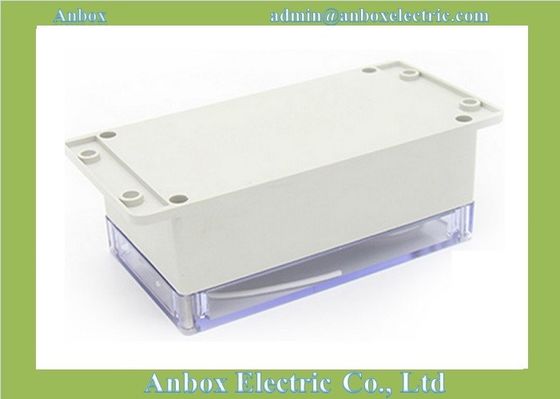

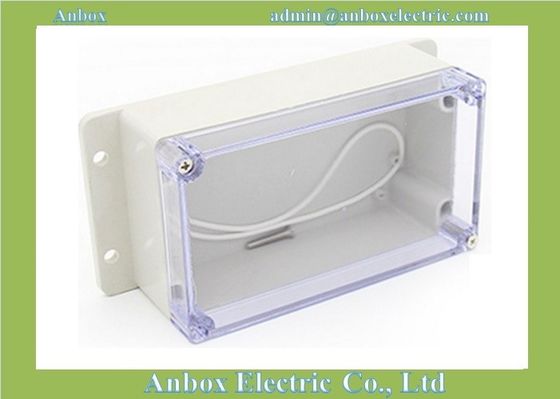

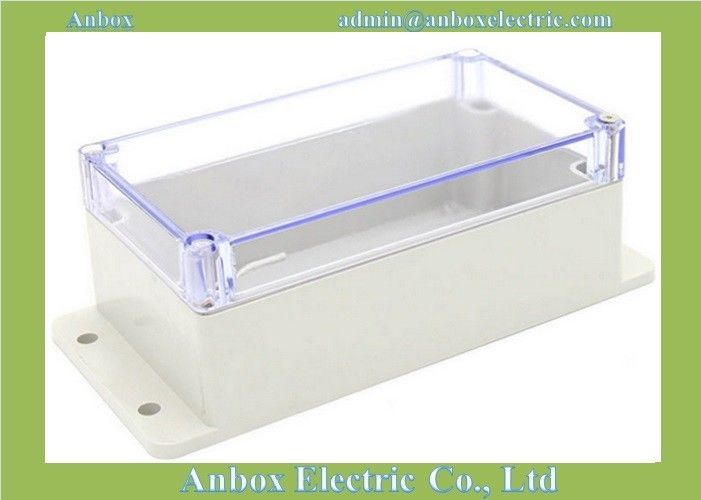

158*90*64mm wall mount plastic waterproof standard plastic enclosures with transparent lid
1, Model:158B-23
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:158*90*64m
6, Assembly screws included.
7, Multi-directional mounting feet
Detailed pictures
Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screws
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime
Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better.
Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency
More sizes for wall mount plastic enclosure with clear lid
| P.N | Model | Size |
| 63A-23 | 63A-23 | 63*58*35 |
| 83A-23 | 83A-23 | 83*58*33 |
| 100C-23 | 100C-23 | 100*68*40 |
| 100A-23 | 100A-23 | 100*68*50 |
| 115B-23 | 115B-23 | 115*85*35 |
| 115C-23 | 115C-23 | 115*90*55 |
| 115A-23 | 115A-23 | 115*90*68 |
| 120B-23 | 120B-23 | 120*81*65 |
| 158C-23 | 158C-23 | 158*90*46 |
| 158D-23 | 158D-23 | 158*90*64 |
| 160E-23 | 160E-23 | 160*160*90 |
| 192A-23 | 192A-23 | 192*188*70 |
| 200B-23 | 200B-23 | 200*120*75 |
| 230A-23 | 230A-23 | 230*150*87 |
