Product Details:
Payment & Shipping Terms:
|
External Size: | 63*58*35mm | Protection Level: | IP65 |
---|---|---|---|
Type: | Junction Box | Function: | Function |
Color: | Grey | Wall Thinkness: | About 3mm |
OEM: | Available | Lead Time: | 7 Days |
High Light: | 35mm Plastic Waterproof Junction Box,63mm plastic waterproof junction box,63A-13 Wall Mount Enclosure |

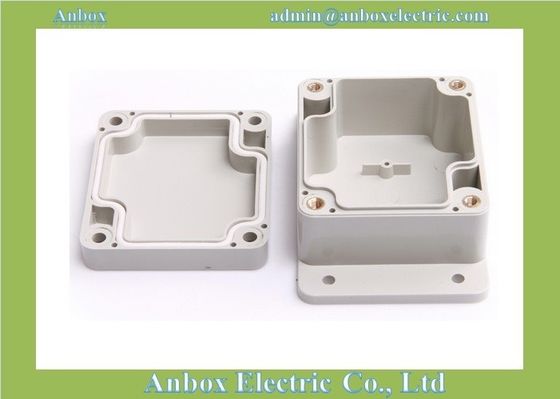

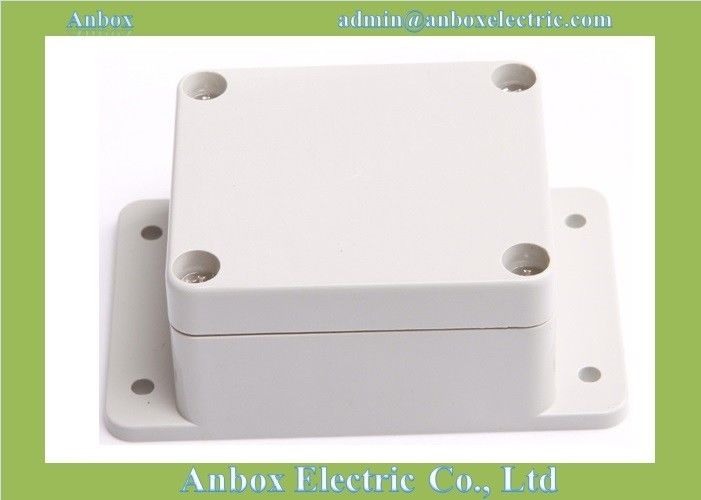

63*58*35mm IP65 Plastic Waterproff Junction Box Wall Mount Enclosure
1, Model:63A-13
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:63*58*35mm
6, Assembly screws included.
7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.
Reference Drawing
FAQ
1. Material and color can be customized.
2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.
3. For modification, there will be surcharge.
4. Drawings from website is just for reference .
5. Making toolings will charge tooling cost.
6. For such waterproof case, we can produce 2 types, one with non-transparent case and another one with transparent lid case.
Other sizes
P.N | Model No. | Size with wall mounting |
1 | 63A-13 | 63*58*35 |
2 | 76A-13 | 76*70*38 |
3 | 83A-13 | 83*58*33 |
4 | 100A-13 | 100*68*40 |
5 | 100B-13 | 100*68*50 |
6 | 115A-13 | 115*85*35 |
7 | 115B-13 | 115*90*55 |
8 | 115C-13 | 115*90*68 |
9 | 120A-13 | 120*81*65 |
10 | 125A-13 | 125*100*52 |
11 | 145A-13 | 145*120*60 |
12 | 158A-13 | 158*90*46 |
13 | 158B-13 | 158*90*64 |
14 | 160A-13 | 160*90*80 |
15 | 160B-13 | 160*100*56 |
16 | 160C-13 | 160*110*96 |
17 | 160D-13 | 160*160*90 |
18 | 180A-13 | 180*150*70 |
19 | 192A-13 | 192*100*45 |
20 | 192B-13 | 192*100*62 |
21 | 192C-13 | 192*188*70 |
22 | 200A-13 | 200*120*67 |
23 | 200B-13 | 200*120*75 |
24 | 200C-13 | 200*120*113 |
25 | 215A-13 | 215*185*85 |
26 | 230A-13 | 230*150*87 |
27 | 255A-13 | 255*230*100 |
28 | 300A-13 | 300*270*110 |
29 | 320A-13 | 320*240*110 |
30 | 330A-13 | 330*300*90 |
