| External Size: | 95*65*55 | Protection Level: | IP67 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS, PC |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. | ||
| High Light: | IP65 Waterproof Electrical Connection Box,95x65x55mm Waterproof Electrical Connection Box,PCB Outdoor Waterproof Connection Box |
||

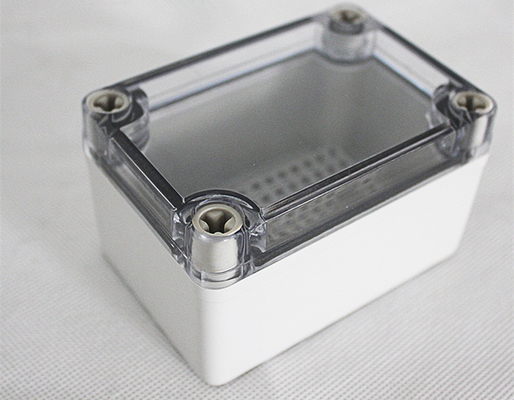

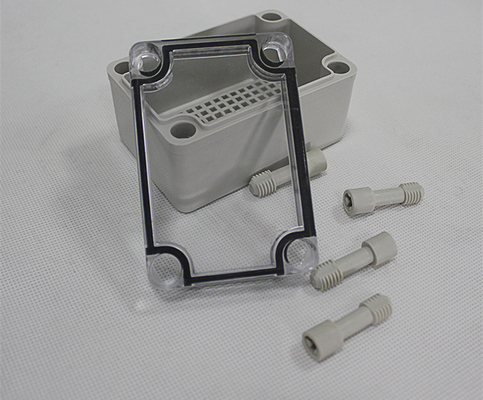

95*65*55mm Low Price IP65 Plastic Waterproof Enclosure Connection Box For PCB With Plastic Screws
1. Material :ABS,PC, or ABS+PC with flame retardant.
2. IP67 rating
3. Operating Temperature:-20℃ to 90℃

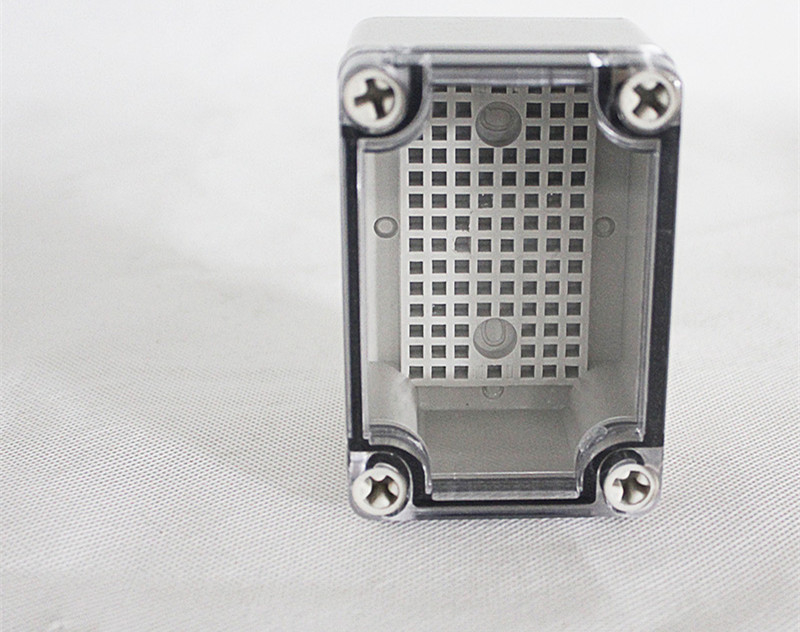

4. Bosses on internal base allow fixing PCB horizontally or connection of terminals ,etc into threaded brass
5. Higher intensity, and more durable.
6. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
7. Color and material can be changed as your requirement
8. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen , printing and etc.
9. Your design is welcome

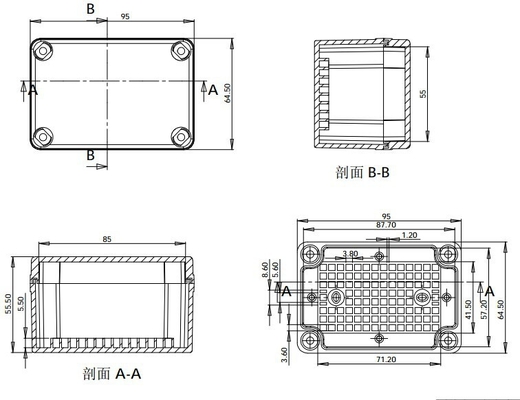

| W*H*D | W1 | W2 | W3 | H1 | H2 | H3 | h4 | D1 | D2 |
| 50*65*55 | 50 | 43 | 38 | 65 | 58 | 53 | 39.8 | 35 | 20 |
| 65*95*55 | 65 | 58 | 47 | 95 | 88 | 77 | 40 | 15 | |
| 80*110*45 | 80 | 73 | 62 | 110 | 103 | 92 | 80 | 25 | 20 |
| 80*110*70 | 80 | 73 | 62 | 110 | 103 | 92 | 80 | 55 | 15 |
| 80*110*85 | 80 | 73 | 62 | 110 | 103 | 92 | 80 | 55 | 30 |
| 80*130*70 | 80 | 73 | 62 | 130 | 123 | 112 | 100 | 55 | 15 |
| 80*130*85 | 80 | 73 | 62 | 130 | 123 | 112 | 100 | 55 | 30 |
| 80*180*70 | 80 | 73 | 62 | 180 | 173 | 162 | 150 | 50 | 20 |
| 80*180*85 | 80 | 73 | 62 | 180 | 173 | 162 | 150 | 50 | 35 |
| 80*250*70 | 80 | 73 | 62 | 250 | 243 | 232 | 220 | 50 | 20 |
| 80*250*85 | 80 | 73 | 62 | 250 | 243 | 232 | 220 | 50 | 35 |
| 100*100*75 | 100 | 93 | 82 | 100 | 93 | 82 | 60 | 55 | 20 |
| 125*125*75 | 125 | 118 | 107 | 125 | 118 | 107 | 70 | 55 | 20 |
| 125*125*100 | 125 | 118 | 107 | 125 | 118 | 107 | 70 | 80 | 20 |
| 125*175*75 | 125 | 118 | 107 | 175 | 168 | 157 | 140 | 60 | 15 |
| 125*175*100 | 125 | 118 | 107 | 175 | 168 | 157 | 140 | 60 | 40 |
| 140*170*95 | 140 | 132 | 122 | 170 | 162 | 152 | 130 | 75 | 20 |
| 150*200*75 | 150 | 142 | 132 | 200 | 192 | 182 | 160 | 55 | 20 |
| 150*200*100 | 150 | 142 | 132 | 200 | 192 | 182 | 160 | 80 | 20 |
| 150*200*130 | 150 | 142 | 132 | 200 | 192 | 182 | 160 | 80 | 50 |
| 175*175*75 | 175 | 167 | 157 | 175 | 167 | 157 | 140 | 50 | 25 |
| 175*175*100 | 175 | 167 | 157 | 175 | 167 | 157 | 140 | 50 | 50 |
| 200*200*95 | 200 | 192 | 182 | 200 | 192 | 182 | 159.5 | 75 | 20 |
| 200*200*130 | 200 | 192 | 182 | 200 | 192 | 182 | 159.5 | 110 |
20 |
