| Material: | ABS | Color: | Grey |
|---|---|---|---|
| Wall Thinkness: | About 3mm | OEM: | Available |
| Lead Time: | 7 Days | Type: | Junction Box |
| Usage: | Electric | ||
| High Light: | 70mm Plastic Enclosures For Electronics Projects,150mm plastic enclosures for electronics projects,AnBox electronic project box |
||

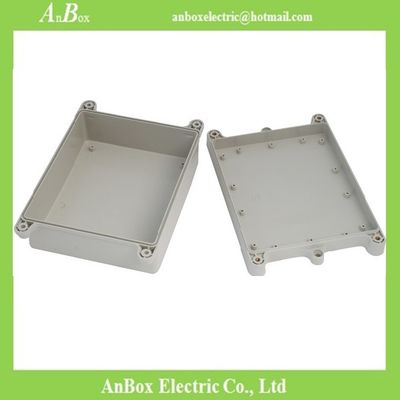

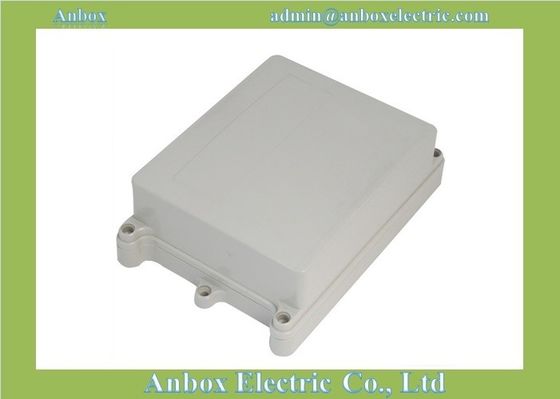

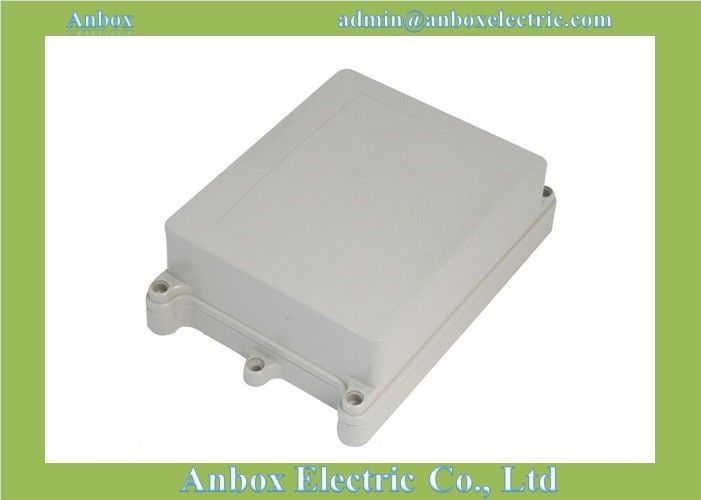

180x150x70mm Custom Weatherproof Outdoor Plastic Junction Box For Project
1, Model: 180A-13
2,Material: ABS
3, Color: Grey
4, Components: Lid, base, O-ring, screws.
5, Size:180x150x70mm
7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.
Application
Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation
Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.
Reference Drawing
Other sizes
| P.N | Model No. | Size with wall mounting |
| 1 | 63A-13 | 63*58*35 |
| 2 | 76A-13 | 76*70*38 |
| 3 | 83A-13 | 83*58*33 |
| 4 | 100A-13 | 100*68*40 |
| 5 | 100B-13 | 100*68*50 |
| 6 | 115A-13 | 115*85*35 |
| 7 | 115B-13 | 115*90*55 |
| 8 | 115C-13 | 115*90*68 |
| 9 | 120A-13 | 120*81*65 |
| 10 | 125A-13 | 125*100*52 |
| 11 | 145A-13 | 145*120*60 |
| 12 | 158A-13 | 158*90*46 |
| 13 | 158B-13 | 158*90*64 |
| 14 | 160A-13 | 160*90*80 |
| 15 | 160B-13 | 160*100*56 |
| 16 | 160C-13 | 160*110*96 |
| 17 | 160D-13 | 160*160*90 |
| 18 | 180A-13 | 180*150*70 |
| 19 | 192A-13 | 192*100*45 |
| 20 | 192B-13 | 192*100*62 |
| 21 | 192C-13 | 192*188*70 |
| 22 | 200A-13 | 200*120*67 |
| 23 | 200B-13 | 200*120*75 |
| 24 | 200C-13 | 200*120*113 |
| 25 | 215A-13 | 215*185*85 |
| 26 | 230A-13 | 230*150*87 |
| 27 | 255A-13 | 255*230*100 |
| 28 | 300A-13 | 300*270*110 |
| 29 | 320A-13 | 320*240*110 |
| 30 | 330A-13 | 330*300*90 |
