Product Details:
Payment & Shipping Terms:
|
| Size: | Range Sizes | IP Level: | IP65 |
|---|---|---|---|
| Type: | Waterproof Junction Box | Material: | ABS |
| Service: | OEM | Custom Desig: | Available |
| High Light: | 235x165x45mm electronic plastic box,abs plastic junction box,Plastic Box For Electronic Projects |
||

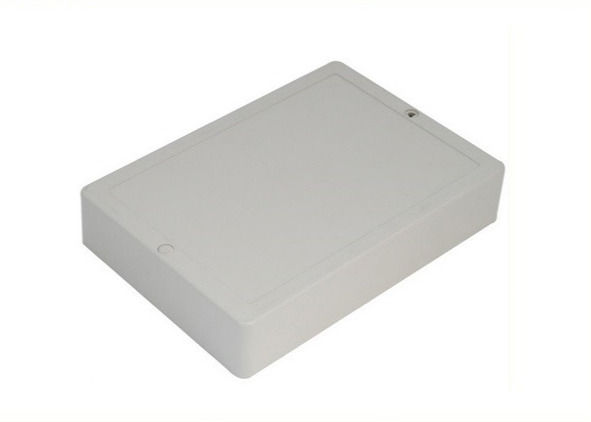

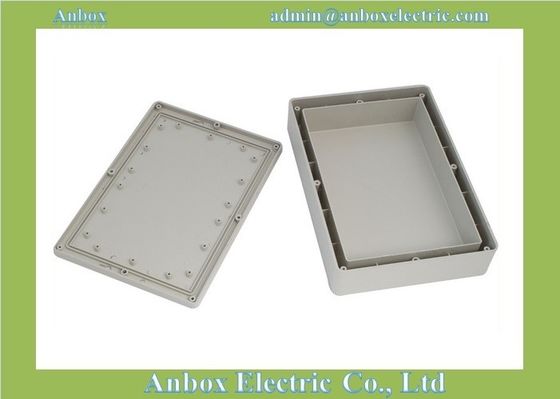

235x165x45mm cheap price enclosure plastic box companies in China
Anbox electric Co., Ltd, providing you various size of enclosure, electrical junction box, diy project boxes, waterproof case, plastic enclosures, weatherproof enclosures, etc.
1. Material :ABS,PC,or ABS+PC with flame retardant.
2. IP65 rating
3. Operating Temperature:-20℃ to 90℃
4. Higher intensity, and more durable.
5. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
6. Color and material can be changed as your requirement
7. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc
Reference Drawing
Other sizes
| P.N | Model No. | Dimension |
| 1 | 63A-1 | 63*58*35 |
| 2 | 65A-1 | 65*50*55 |
| 3 | 83A-1 | 83*58*33 |
| 4 | 83B-1 | 83*81*56 |
| 5 | 95A-1 | 95*65*55 |
| 6 | 96A-1 | 96*96*60 |
| 7 | 100A-1 | 100*68*50 |
| 8 | 100B-1 | 100*100*50 |
| 9 | 100C-1 | 100*100*75 |
| 10 | 100D-1 | 100*100*90 |
| 11 | 110A-1 | 110*80*45 |
| 12 | 110B-1 | 110*80*70 |
| 13 | 110C-1 | 110*80*85 |
| 14 | 115A-1 | 115*90*55 |
| 15 | 120A-1 | 120*120*90 |
| 16 | 125A-1 | 125*85*60 |
| 17 | 125B-1 | 125*125*75 |
| 18 | 125C-1 | 125*125*100 |
| 19 | 130A-1 | 130*80*70 |
| 20 | 130B-1 | 130*80*85 |
| 21 | 135A-1 | 135*80*90 |
| 22 | 140A-1 | 140*105*45 |
| 23 | 140B-1 | 140*105*63 |
| 24 | 145A-1 | 145*102*31 |
| 25 | 145B-1 | 145*145*60 |
| 26 | 145C-1 | 145*145*90 |
| 27 | 150A-1 | 150*150*120 |
| 28 | 155A-1 | 155*115*75 |
| 29 | 158A-1 | 158*90*40 |
| 30 | 158B-1 | 158*90*60 |
| 31 | 158C-1 | 158*90*75 |
| 32 | 160A-1 | 160*45*55 |
| 33 | 160B-1 | 160*80*55 |
| 34 | 160D-1 | 160*110*90 |
| 35 | 160F-1 | 160*160*60 |
| 36 | 160E-1 | 160*160*90 |
| 37 | 160C-1 | 160*160*120 |
| 38 | 170C-1 | 170*120*21 |
| 39 | 170A-1 | 170*120*100 |
| 40 | 170B-1 | 170*140*95 |
| 41 | 175A-1 | 175*125*75 |
| 42 | 175B-1 | 175*125*100 |
| 43 | 175C-1 | 175*175*100 |
| 44 | 180A-1 | 180*80*70 |
| 45 | 180B-1 | 180*80*85 |
| 46 | 180C-1 | 180*130*60 |
| 47 | 180D-1 | 180*130*90 |
| 48 | 190A-1 | 190*140*70 |
| 49 | 192A-1 | 192*188*100 |
| 50 | 194A-1 | 194*80*56 |
| 51 | 200A-1 | 200*120*56 |
| 52 | 200B-1 | 200*120*75 |
| 53 | 200C-1 | 200*120*90 |
| 54 | 200D-1 | 200*120*113 |
| 55 | 200E-1 | 200*150*100 |
| 56 | 200F-1 | 200*150*130 |
| 57 | 200H-1 | 200*200*95 |
| 58 | 200I-1 | 200*200*130 |
| 59 | 210A-1 | 210*120*110 |
| 60 | 210B-1 | 210*155*65 |
| 61 | 210C-1 | 210*155*94 |
| 62 | 210D-1 | 210*155*112 |
| 63 | 230A-1 | 230*150*60 |
| 64 | 230B-1 | 230*150*85 |
| 65 | 235A-1 | 235*165*45 |
| 66 | 240A-1 | 240*160*90 |
| 67 | 240B-1 | 240*160*120 |
| 68 | 240D-1 | 240*175*68 |
| 69 | 240E-1 | 240*175*117 |
| 70 | 240C-1 | 240*190*90 |
| 71 | 248A-1 | 248*77*85 |
| 72 | 248B-1 | 248*148*100 |
| 73 | 250A-1 | 250*80*70 |
| 74 | 250B-1 | 250*80*85 |
| 75 | 250C-1 | 250*150*100 |
| 76 | 250D-1 | 250*150*130 |
| 77 | 250E-1 | 250*170*120 |
| 78 | 250F-1 | 250*190*99 |
| 79 | 263A-1 | 263*182*60 |
| 80 | 263B-1 | 263*182*95 |
| 81 | 263C-1 | 263*182*125 |
| 82 | 280A-1 | 280*190*130 |
| 83 | 280B-1 | 280*190*180 |
| 84 | 280E-1 | 280*195*86 |
| 85 | 280C-1 | 280*195*135 |
| 86 | 280D-1 | 280*280*130 |
| 87 | 280E-1 | 280*280*180 |
| 88 | 290A-1 | 290*200*130 |
| 89 | 290B-1 | 290*210*60 |
| 90 | 290C-1 | 290*210*100 |
| 91 | 295A-1 | 295*155*56 |
| 92 | 295B-1 | 295*155*96 |
| 93 | 295C-1 | 295*155*112 |
| 94 | 300B-1 | 300*200*125 |
| 95 | 300A-1 | 300*280*140 |
| 96 | 320B-1 | 320*240*60 |
| 97 | 320A-1 | 320*240*110 |
| 98 | 320B-1 | 320*240*140 |
| 99 | 320C-1 | 320*240*155 |
| 100 | 340A-1 | 340*270*60 |
| 101 | 340B-1 | 340*280*130 |
| 102 | 340C-1 | 340*280*180 |
| 103 | 380A-1 | 380*190*130 |
| 104 | 380B-1 | 380*190*180 |
| 105 | 380C-1 | 380*260*105 |
| 106 | 380D-1 | 380*260*120 |
| 107 | 380E-1 | 380*260*140 |
| 108 | 380F-1 | 380*280*130 |
| 109 | 380G-1 | 380*280*180 |
