85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper

I'm Online Chat Now
Good quality and good service.Very professional supplier, we will have nice cooperation in the near future.

—— Kim

Product was good quality! Fast Shipping! Service was excellent and very helpful. Item arrive quickly.

—— Pierre

Good company with nice service and high quality.One of our reliable supplier.Goods are delivered in time and nice package.

—— Houston

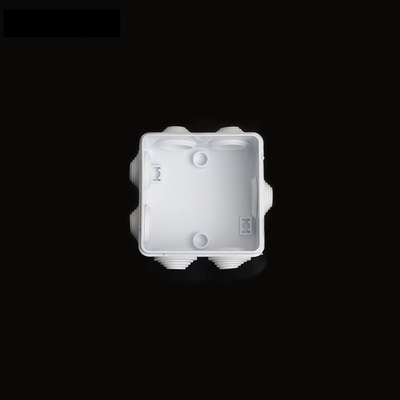

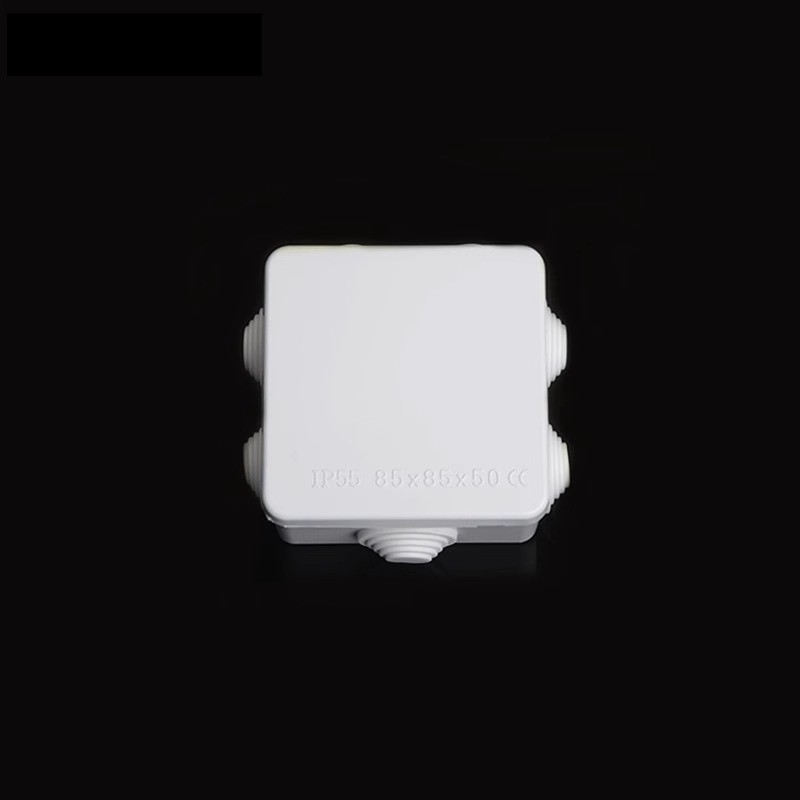

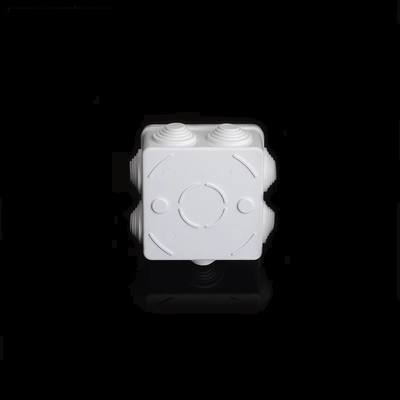

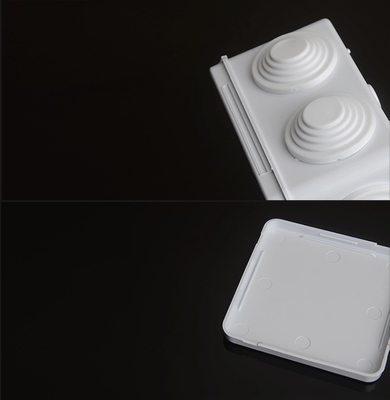

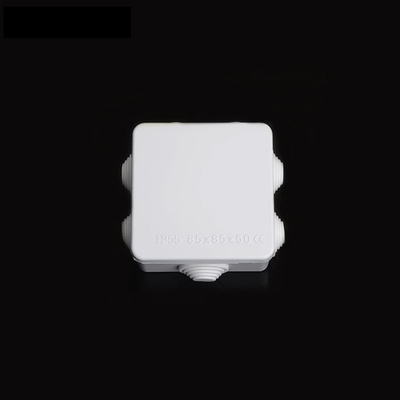

85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper

85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper
85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper 85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper 85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper 85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper

Large Image :  85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: RA 85X85X50
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD0.95
Packaging Details: cartons
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs / day
Detailed Product Description
Material: ABS Color: White
Hole Quantity: 7 Hole Size: ø25mm
IP Rating: IP65
High Light:

Knockout Holes Waterproof Junction Box

,

85x85x50mm Waterproof Junction Box

,

IP65 Waterproof ABS Enclosure Box

85x85x50mm IP65 ABS Waterproof Junction Box Knock-Out Holes With Stopper

Product Description

◇ Body Material: ABS
◇ Stopper Material:PVC
◇ Material Feature: can resistant the stock, heat, low temperature,and chemicals. Excellent electrical properties, good surface gloss
◇ Certification: CE ROHS
◇ Usage: Suitable for indoor and outdoor electrical, communications, fire equipment, steel smelting, Petrochemical, electronics, electric power, railway, construction site, mining field, airport, hotel, ship, large factory, coastal factory, unloading terminal equipment Sewage treatment facilities, environmental pollution facilities and so on.
◇ Installation method:
1. inside of the box have the circuit board or the rails are mounted on the boss
2. External installation:can use the hole of the bottoms of the box directly fixed on the wall (can by the four angles,use the screw or nail fixed the box on the wall or board.
◇ Entry hole: Waterproof Junction Box can be selected according to the size of the wire in the existing hole plug, or with set the waterproof clamping joints, to achieve the best waterproof effect.





Product Drawing



85x85x50mm IP65 ABS Waterproof Junction Box Knockout Holes With Stopper 0





Model Code Hole Qty Hole Size IP N.Weight GW/CTN NW/CTN Qty/CTN Carton Size Unit price
(USD)
RA 50X50 4 25 55 45 13.5 12.3 300 46X38X51 US$0.92
RA 80X50 4 25 55 68 14.7 13.4 240 53X35X62 US$0.93
RA 85X85X50 7 25 55 86 17.2 16 200 53X41X53 US$0.95
RA 100X100X70 7 25 65 150 17.9 13.5 100 62X49X35 US$1.23
RA 150X110X70 10 25 65 230 15.1 13.8 60 67X33X46.5 US$1.85
RA 150X150X70 8 25 65 270 16.3 15 60 84.5X34X45 US$2.05
RA 200X100X70 8 25 65 260 16.6 15.3 60 61X46X42 US$2.15
RA 200X155X80 10 36 65 360 14.5 13.2 40 69.5X43.5X42 US$2.46
RA 200X200X80 12 36 65 470 18 16.6 40 90X46X40.5 US$3.69
RA 255X200X80 12 36 65 530 21.9 20.1 40 55X45X78.5 US$3.85
RA 255X200X120 12 36 65 630 21.9 20.1 30 64X55X62 US$5.90
RA 300X250X120 12 36 65 900 20.3 18.4 20 61.5X55.5X63 US$8.00
RA 400X350X120 16 36 65 1450 15 13.3 10 74.5X42.5X61.5 US$13.00
