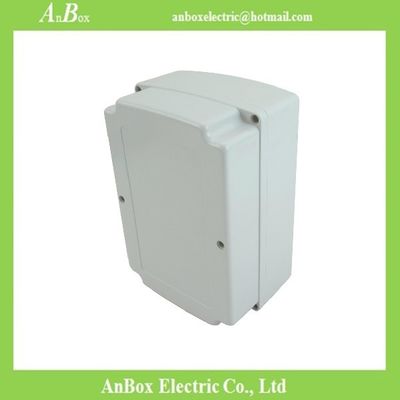

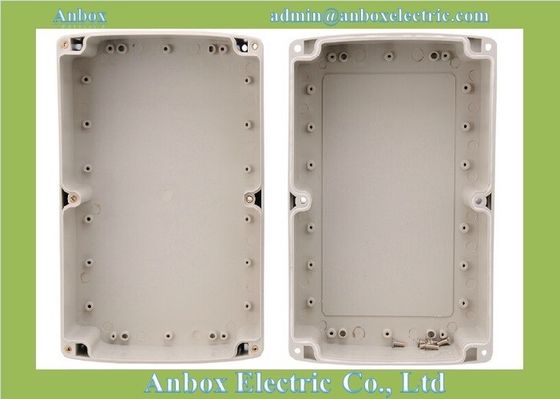

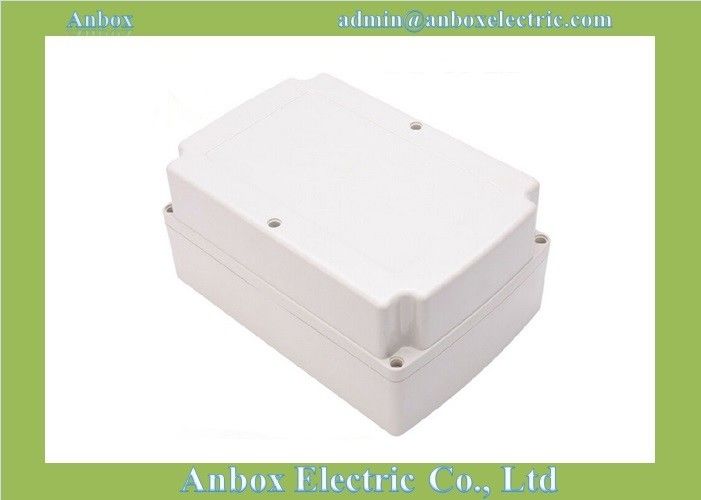

Large ABS IP67 250x170x120mm Plastic Pcb Enclosures

Large ABS IP67 250x170x120mm Plastic Pcb Enclosures
Large ABS IP67 250x170x120mm Plastic Pcb Enclosures Large ABS IP67 250x170x120mm Plastic Pcb Enclosures Large ABS IP67 250x170x120mm Plastic Pcb Enclosures

Large Image :  Large ABS IP67 250x170x120mm Plastic Pcb Enclosures Get Best Price

Product Details:
Place of Origin: China
Brand Name: Anbox
Certification: CE
Model Number: 250E-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pc
Price: $3~$10
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000pcs/day
Detailed Product Description
Type: Junctio Din Rail,cable Glandn Box Fittings: Din Rail,cable Gland
Hole: Customized Electrical Enclosure Funtion: Waterproof, Dustproof, Resistant To 80 Degrees
Material: ABS OEM: Welcome
High Light:

250x170x120mm Plastic Pcb Enclosures

,

ABS Plastic Pcb Enclosures

,

IP67 plastic pcb enclosures

250x170x120mm Large size Plastic ABS Case for PCB





Material ABSPC New material
Waterproof Level IP67
Flame Retardant Rating UL94V-0 is customizable
Certification RoHS;UL(Materia);SGS;CE;IP68
Function Impact resistance,Heat resistance,Cold resistance,Chemical resistance, Excellent electrical performance smooth surface etc......
Feature Sealing ring is designed with casting 360 degree sealing ,has good resilience, and IP rate can be upto ip68. the bottom is mounted with terminal base for inserting the terminals
Impact Strength Rating of Plastic ABS in IK07, PC in 08
Application

Widely used in indoor and outdoor equipment of electrical , telecommunication ,fire protection

steel and iron smelting , petrol and chemical ,power system,railway,construction building,mine,

seaport hotel,vessel,engineering etc..

Product Processing Can be customized according to customer requirements
Product Acessories Optional grid backplane ,hanging feet,rails
Product Size Can be customized in many specifications,specific consulting customer service
Packing Customer service
MOQ Small order can be accepted
Lead Time 5-9 workdays
Payment Term TT,Paypal
Design Ability We can supply sample,OEM&ODM is welcomed(Design,Engineering,Photographing,Sample,Production









Reference drawing

Large ABS IP67 250x170x120mm Plastic Pcb Enclosures 0

Other sizes





P.N Model No. Dimension
1 63A-1 63*58*35
2 65A-1 65*50*55
3 83A-1 83*58*33
4 83B-1 83*81*56
5 95A-1 95*65*55
6 96A-1 96*96*60
7 100A-1 100*68*50
8 100B-1 100*100*50
9 100C-1 100*100*75
10 100D-1 100*100*90
11 110A-1 110*80*45
12 110B-1 110*80*70
13 110C-1 110*80*85
14 115A-1 115*90*55
15 120A-1 120*120*90
16 125A-1 125*85*60
17 125B-1 125*125*75
18 125C-1 125*125*100
19 130A-1 130*80*70
20 130B-1 130*80*85
21 135A-1 135*80*90
22 140A-1 140*105*45
23 140B-1 140*105*63
24 145A-1 145*102*31
25 145B-1 145*145*60
26 145C-1 145*145*90
27 150A-1 150*150*120
28 155A-1 155*115*75
29 158A-1 158*90*40
30 158B-1 158*90*60
31 158C-1 158*90*75
32 160A-1 160*45*55
33 160B-1 160*80*55
34 160D-1 160*110*90
35 160F-1 160*160*60
36 160E-1 160*160*90
37 160C-1 160*160*120
38 170C-1 170*120*21
39 170A-1 170*120*100
40 170B-1 170*140*95
41 175A-1 175*125*75
42 175B-1 175*125*100
43 175C-1 175*175*100
44 180A-1 180*80*70
45 180B-1 180*80*85
46 180C-1 180*130*60
47 180D-1 180*130*90
48 190A-1 190*140*70
49 192A-1 192*188*100
50 194A-1 194*80*56
51 200A-1 200*120*56
52 200B-1 200*120*75
53 200C-1 200*120*90
54 200D-1 200*120*113
55 200E-1 200*150*100
56 200F-1 200*150*130
57 200H-1 200*200*95
58 200I-1 200*200*130
59 210A-1 210*120*110
60 210B-1 210*155*65
61 210C-1 210*155*94
62 210D-1 210*155*112
63 230A-1 230*150*60
64 230B-1 230*150*85
65 235A-1 235*165*45
66 240A-1 240*160*90
67 240B-1 240*160*120
68 240D-1 240*175*68
69 240E-1 240*175*117
70 240C-1 240*190*90
71 248A-1 248*77*85
72 248B-1 248*148*100
73 250A-1 250*80*70
74 250B-1 250*80*85
75 250C-1 250*150*100
76 250D-1 250*150*130
77 250E-1 250*170*120
78 250F-1 250*190*99
79 263A-1 263*182*60
80 263B-1 263*182*95
81 263C-1 263*182*125
82 280A-1 280*190*130
83 280B-1 280*190*180
84 280E-1 280*195*86
85 280C-1 280*195*135
86 280D-1 280*280*130
87 280E-1 280*280*180
88 290A-1 290*200*130
89 290B-1 290*210*60
90 290C-1 290*210*100
91 295A-1 295*155*56
92 295B-1 295*155*96
93 295C-1 295*155*112
94 300B-1 300*200*125
95 300A-1 300*280*140
96 320B-1 320*240*60
97 320A-1 320*240*110
98 320B-1 320*240*140
99 320C-1 320*240*155
100 340A-1 340*270*60
101 340B-1 340*280*130
102 340C-1 340*280*180
103 380A-1 380*190*130
104 380B-1 380*190*180
105 380C-1 380*260*105
106 380D-1 380*260*120
107 380E-1 380*260*140
108 380F-1 380*280*130
109 380G-1 380*280*180
