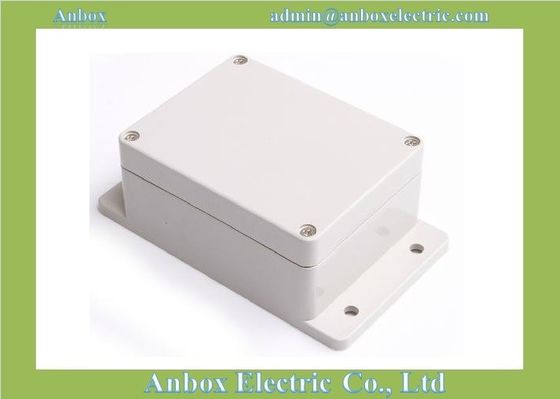

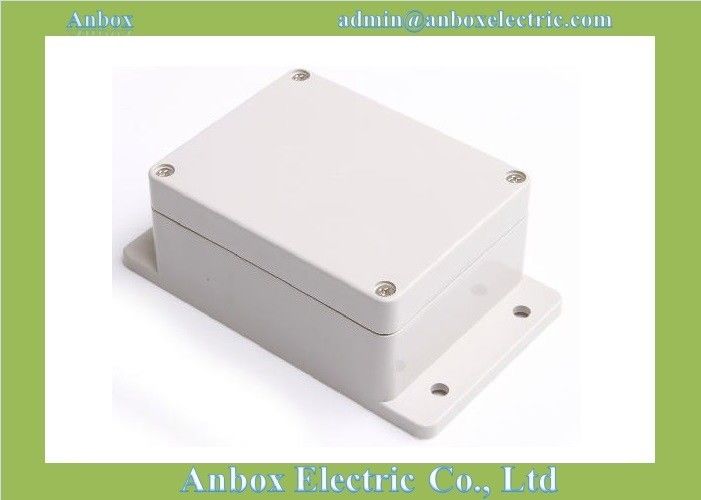

115*90*55mm Plastic Electrical Junction Box

115*90*55mm Plastic Electrical Junction Box
115*90*55mm Plastic Electrical Junction Box 115*90*55mm Plastic Electrical Junction Box

Large Image :  115*90*55mm Plastic Electrical Junction Box Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: 115B-13
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $1~$10
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
External Size: 115*90*55mm Protection Level: IP65
Type: Junction Box Material: ABS
Application: Electric Wall Thinkness: About 3mm
OEM: Available Lead Time: 7 Days
Payment: Western Union, T/T,paypal
High Light:

115*90*55mm Plastic Electrical Junction Box

,

3mm Plastic Electrical Junction Box

,

Grey waterproof junction box ip65


115*90*55mm IP65 waterproof abs enclosures electronics pcb enclosure box


Specifications

1, Model:115B-13
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:115*90*55mm
6, Assembly screws included.
7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.

Reference Drawing
115*90*55mm Plastic Electrical Junction Box 0

Other sizes


P.NModel No.Size
with wall mounting
163A-1363*58*35
276A-1376*70*38
383A-1383*58*33
4100A-13100*68*40
5100B-13100*68*50
6115A-13115*85*35
7115B-13115*90*55
8115C-13115*90*68
9120A-13120*81*65
10125A-13125*100*52
11145A-13145*120*60
12158A-13158*90*46
13158B-13158*90*64
14160A-13160*90*80
15160B-13160*100*56
16160C-13160*110*96
17160D-13160*160*90
18180A-13180*150*70
19192A-13192*100*45
20192B-13192*100*62
21192C-13192*188*70
22200A-13200*120*67
23200B-13200*120*75
24200C-13200*120*113
25215A-13215*185*85
26230A-13230*150*87
27255A-13255*230*100
28300A-13300*270*110
29320A-13320*240*110
30330A-13

330*300*90





Custom Services
1,  Change Color, Materail to PC or flame retardant

2, Drill holes

3, Silk Screen logo

4, Install terminal block

5,  Connecting cable gland

6, Install metal/plastic wall mount

7, Developing new moulds



Application

Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.





Characteristics

n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.

n Installation

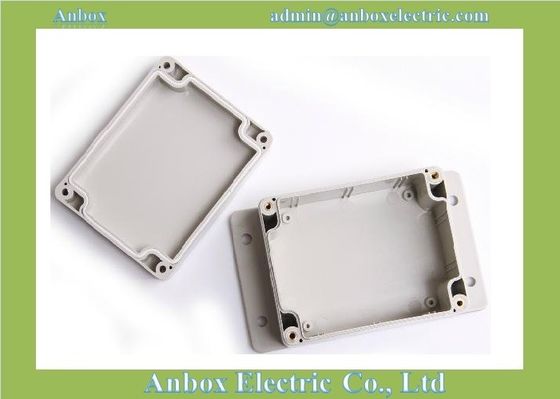

Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces

of M4 standard brass nuts in each box)

Outside: The products can be directly fixed on the wall or other flat board with screws or

nails via the screw holes in the base.
