82*28*100mm Black Aluminum Heatsink Enclosure For Electronic Project Box With Wall-mount
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | Aluminum Heatsink Enclosure | Color: | Black, Silver, And Customized Colors |
|---|---|---|---|
| External Size: | 104*28*100 / 110/150mm, Any Length Available | Length: | Can Be Cut As Per Your Requests |
| Application: | For Electronic Project Box | Material: | Aluminum |
| Surface Treatment: | Anodized | ||
| Highlight: | 104*28*120mm aluminium extrusion enclosure,M3*8 aluminium extrusion enclosure,104*28mm aluminium junction box |
||
82*28*100mm Black Aluminum Heatsink Enclosure For Electronic Project Box With Wall-mount
This Aluminum Heatsink Enclosure measure 104.4*28.3*100 / 110/ 120/ 150mm with Wall mount, Lengh can be cut to any size as per your demands, this Aluminum Heat Sink Case is suitable to house Width 76mm PCB, the P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body. It's ideal for Electronic projects like switch/converter, power supply units, audio amplifier projects,etc.
Description for this Aluminum Heatsink Enclosure
- Extruded aluminum enclosure with heat-sink sides.
- Sturdy extruded case construction
- Black / Silver sandblast / matte anodized finish

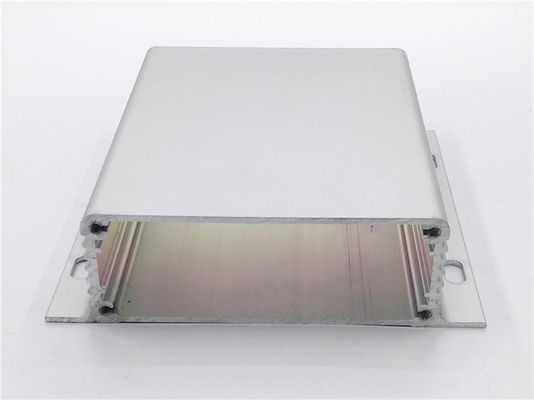

- Built-in slots/grooves are for holding PCB or circuit boards.
- Excellent electromagnetic shielding performance, good heat dissipation performance
- Aluminum PCB Box with Flanged Ear Body for Electronics Development Black
- Customization is welcomed, such as cut out, LOGO print, Or customized as per your drawing or sample.
Paremeters of this Extruded Aluminum Heatsink Wall-mount Enclosure
| Model NO. | E8228 |
| Structure | one body |

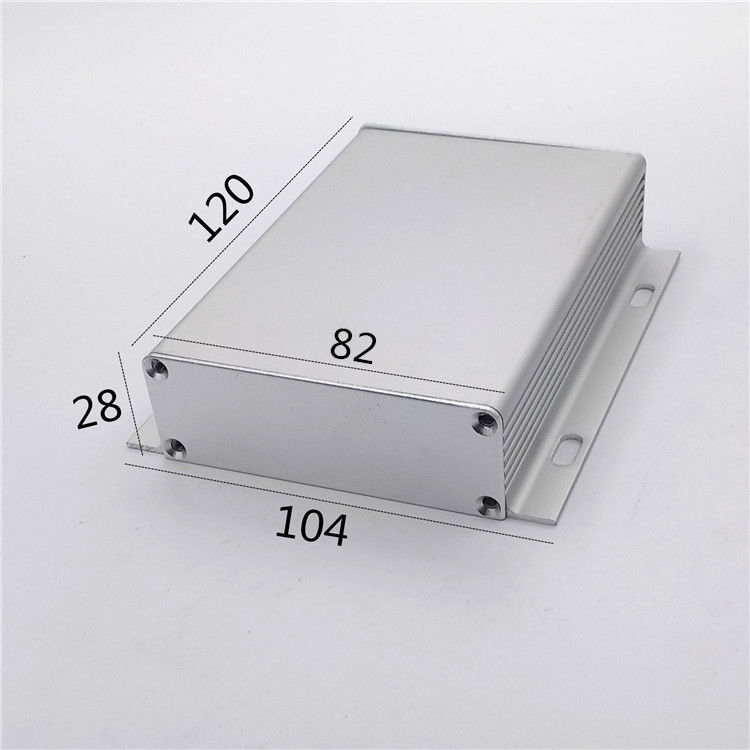

| Outer Size | 104.4*28.3*100mm (W*H*L) L can be change |
| Surface treatment | matt black sandblasting anodizing |
| Color | Black and Silver, can be customized |

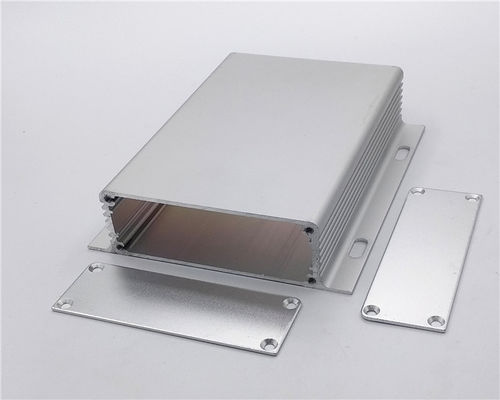

| Components | 1 body, Front end plate, Rear end plate, Screws M3*8 |
| Material | Extrusion Aluminum Profile 6063-T5 |
| Cusomization | color ,cutout, laser silkscreen,label, drill holes, change length |
Drawing
Over 200 sizes available, your OEM / ODM order is highly welcomed.
