Product Details:
Payment & Shipping Terms:
|
External Size: | 83*58*33mm | Protection Level: | IP65 |
---|---|---|---|
Type: | Junction Box | Function: | Waterproof, Dustproof |
Color: | Grey Base Transparent Lid, | Operating Temperature: | -20°C~80°C |
OEM: | Drilling ,painting ,punching ,silk-screen , Printing | Application: | To Protect Circuit Breakers Installed In The Panel Box |
Highlight: | 33mm Wall Mount Plastic Enclosure,83*58mm Wall Mount Plastic Enclosure,3mm wall mounted plastic box |
Model No. | 83A-23 |
Material | ABS for base, PC for lid |
Outer size | 83*58*33mm |
Protection level | IP65 |
Color | clear lid, opaque base |
Customized | Cutout holes, drilling, silkscreen printing etc |

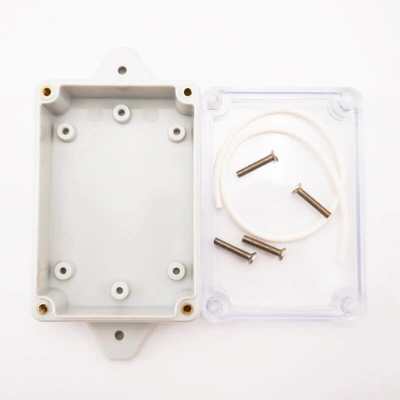

Components | 1*junction box, 1*o-ring, 4*screws |
Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screws
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime
Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better.

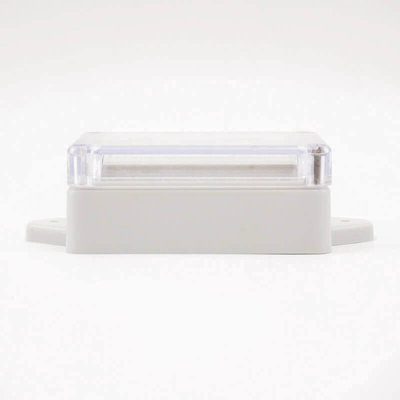

Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency
