Product Details:
Payment & Shipping Terms:
|
External Size: | 120*81*65mm | Protection Level: | IP65 |
---|---|---|---|
Type: | Junction Box | Material: | ABS, PC |
Color: | Grey, Clear | Wall Thinkness: | About 3mm |
OEM: | Available | Lead Time: | 7 Days |
Packing: | Pp Bag For Each Box, Several Boxes To A Carton | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
Payment: | Western Union, T/T, Paypal | ||
High Light: | 12*8.1*6.5cm Wall Mount Plastic Enclosure,120A Wall Mount Plastic Enclosure,12*8.1*6.5cm electrical wall mounting box |

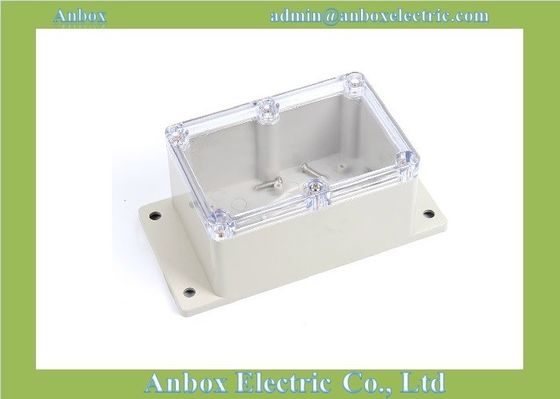

120*81*65mm wall mounting clear plastic waterproof box plastic junction box
1, Model:120A-23
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:120*81*65mm
6, Assembly screws included.
7, Multi-directional mounting feet
Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation
Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.

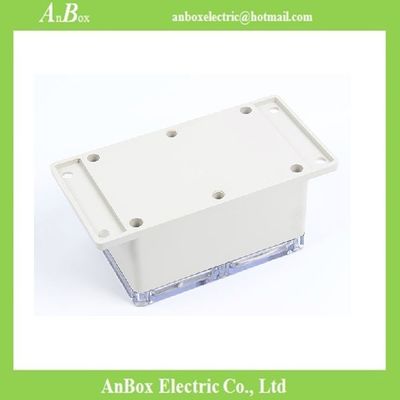

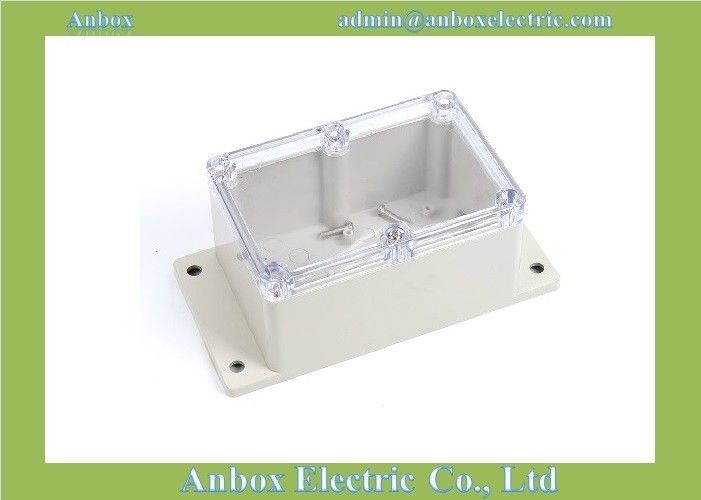

Detailed pictures
Reference drawing
More sizes for wall mount enclosure with clear lid
P.N | Model | Size |
63A-23 | 63A-23 | 63*58*35 |
83A-23 | 83A-23 | 83*58*33 |
100C-23 | 100C-23 | 100*68*40 |
100A-23 | 100A-23 | 100*68*50 |
115B-23 | 115B-23 | 115*85*35 |
115C-23 | 115C-23 | 115*90*55 |
115A-23 | 115A-23 | 115*90*68 |
120B-23 | 120B-23 | 120*81*65 |
158C-23 | 158C-23 | 158*90*46 |
158D-23 | 158D-23 | 158*90*64 |
160E-23 | 160E-23 | 160*160*90 |
192A-23 | 192A-23 | 192*188*70 |
200B-23 | 200B-23 | 200*120*75 |
230A-23 | 230A-23 | 230*150*87 |
Custom Services
1, Change Color, Materail to PC or flame retardant
2, Drill holes
3, Silk Screen
4, Install terminal block
5, Connecting cable gland
6, Install metal/plastic wall mount
7, Developing new moulds
