Product Details:
Payment & Shipping Terms:
|
| External Size: | 100*68*40mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Packing: | Pp Bag For Each Box, Several Boxes To A Carton | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
| Payment: | Western Union, T/T | ||
| High Light: | 100*68*40mm Wall Mount Plastic Enclosure,10*6.8*4cm Wall Mount Plastic Enclosure,Anti Corrosion clear plastic enclosure |
||

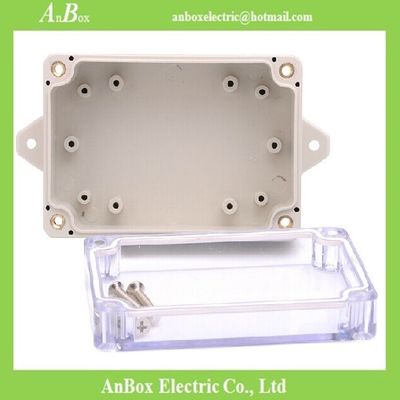

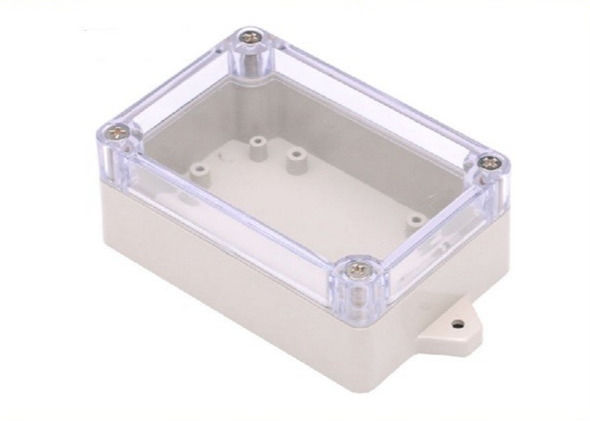

100*68*40mm IP65 Electrical Clear Waterproof Wall Mount Box Electronic Design Case
1, Model:100A-23
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:100*68*40mm
6, Assembly screws included.
7, Multi-directional mounting feet
Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screws
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime
Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better.
Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency
Detailed pictures
More sizes for wall mount plastic enclosure with clear lid
| P.N | Model | Size |
| 63A-23 | 63A-23 | 63*58*35 |
| 83A-23 | 83A-23 | 83*58*33 |
| 100C-23 | 100C-23 | 100*68*40 |
| 100A-23 | 100A-23 | 100*68*50 |
| 115B-23 | 115B-23 | 115*85*35 |
| 115C-23 | 115C-23 | 115*90*55 |
| 115A-23 | 115A-23 | 115*90*68 |
| 120B-23 | 120B-23 | 120*81*65 |
| 158C-23 | 158C-23 | 158*90*46 |
| 158D-23 | 158D-23 | 158*90*64 |
| 160E-23 | 160E-23 | 160*160*90 |
| 192A-23 | 192A-23 | 192*188*70 |
| 200B-23 | 200B-23 | 200*120*75 |
| 230A-23 | 230A-23 | 230*150*87 |
