SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips

SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips
SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips

Large Image :  SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: R99-12
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $1~$2
Packaging Details: box
Delivery Time: 5 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
High Light:

35mm Din Rail Mounting Clips

,

SRR Din Rail Mounting Clips

,

Heat Sink DIN Rail Mounting plates

35mm DIN rail bracket snaps SRR electrical installation heat sink DIN Rail Mounting plates

  • Sturdy metal construction
  • Versatile design
  • Clips onto 35mm DIN rail

General Description

This sturdy steel DIN rail mounting brackets/clips are useful for mounting a wide variety of devices onto standard DIN rail. It feature a flat mounting surface and pre-drilled mounting holes; It is designed for standard 35mm DIN rail.

The DIN Rail mount has six threaded mounting holes, allowing one to simply screw through the mounted device and into the DIN rail bracket without using any nuts.

These clips are very easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity. To remove the DIN clip from the rail, simply pull the release tab on the bottom edge of the bracket or alternately push the tab on the top edge (both tabs are part of the same sliding mechanism). This releases the sliding hooks gripping the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire bracket can then be lifted off the DIN rail.

These brackets are alternately known as DIN rail mounting plates, DIN clips, DIN rail brackets, etc.



Datasheet for the heat sink installation din clip din rail mount



Mounts on 35mm DIN RAIL
For use with Solid State Relays
Material Steel, Nickel plated finish
Threaded Mounting holes M6, 6x
Two types available R99-12, FHS-D35
Rail clip  not include
N.W 54g
Package 100pcs/bag
Shipping DHL/UPS/Fedex/TNT,etc.
Lead time 5 days







Detailed pictures

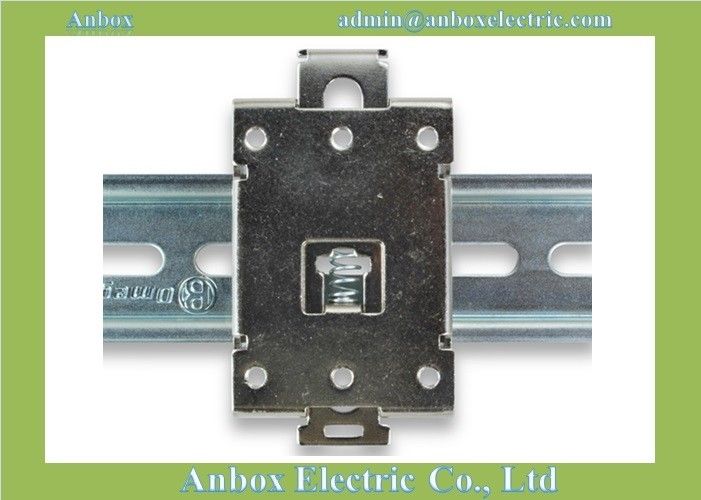

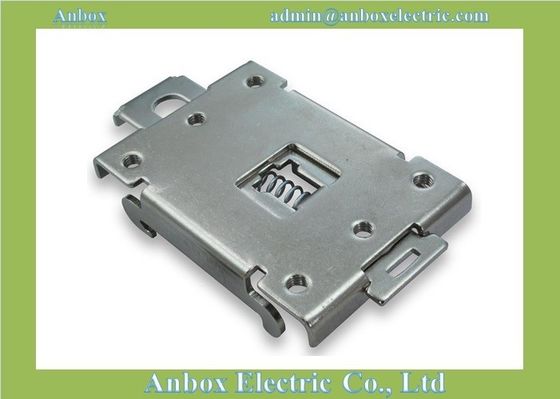

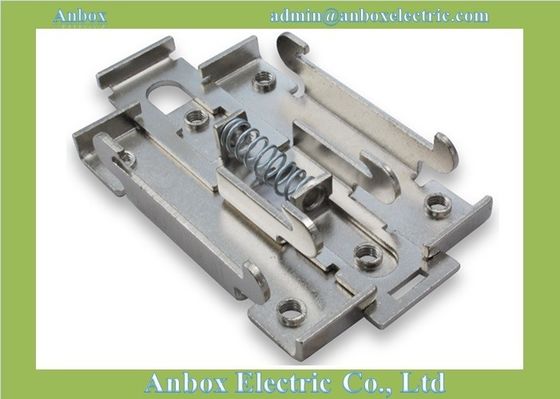

SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips 0SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips 1SRR Electrical Installation Heat Sink 35mm Din Rail Mounting Clips 2
