Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips

Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips
Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips

Large Image :  Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: FHS-D35
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $1~$2
Packaging Details: box
Delivery Time: 5 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
High Light:

FHSD35 Din Rail Mounting Clips

,

AnBox Din Rail Mounting Clips

,

M4 Solid State Relay Clip

FHS-D35 solid state relay clip rail Metal DIN Rail Mounting Clips

General Description

This sturdy steel DIN rail mounting brackets/clips are useful for mounting a wide variety of devices onto standard DIN rail. It feature a flat mounting surface and pre-drilled mounting holes; It is designed for standard 35mm DIN rail.

The DIN Rail mount has six threaded mounting holes, allowing one to simply screw through the mounted device and into the DIN rail bracket without using any nuts.

These clips are very easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity. To remove the DIN clip from the rail, simply pull the release tab on the bottom edge of the bracket or alternately push the tab on the top edge (both tabs are part of the same sliding mechanism). This releases the sliding hooks gripping the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire bracket can then be lifted off the DIN rail.

These brackets are alternately known as DIN rail mounting plates, DIN clips, DIN rail brackets, etc.



Datasheet for the heat sink installation din clip din rail mount

1, Mounts on: DIN RAIL

2, For use with: Solid state relays

3, Material: Steel, Nickel Plated finish

4, Threaded Mounting holes: M4

5, Two skyles available

6, DIN RAIL not included

7, N.W:54g/pc

8, Package: 100pcs/carton

9, Shipping: DHL,UPS,Fedex, TNT

10, Lead time:  5 days





Detailed pictures

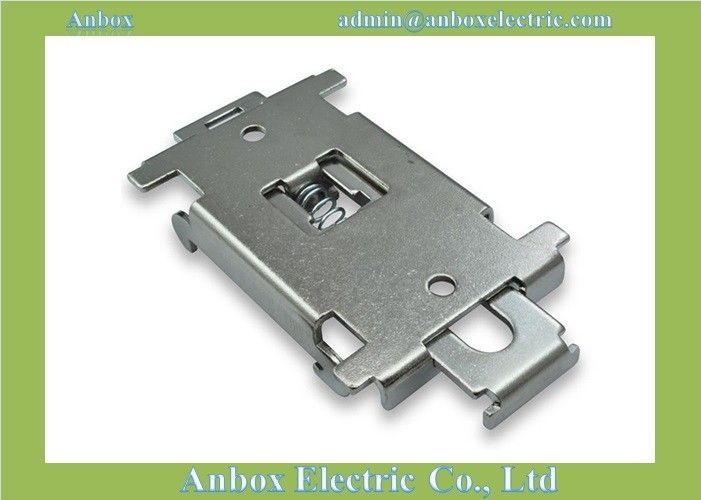

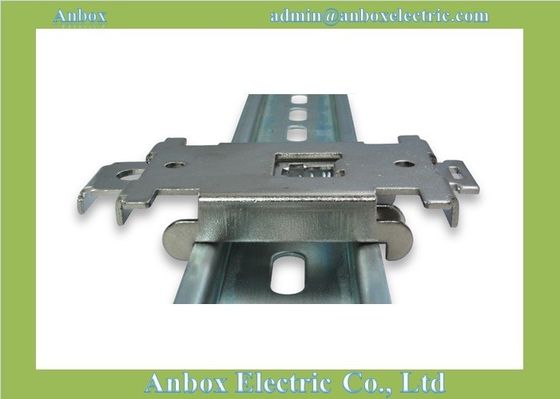

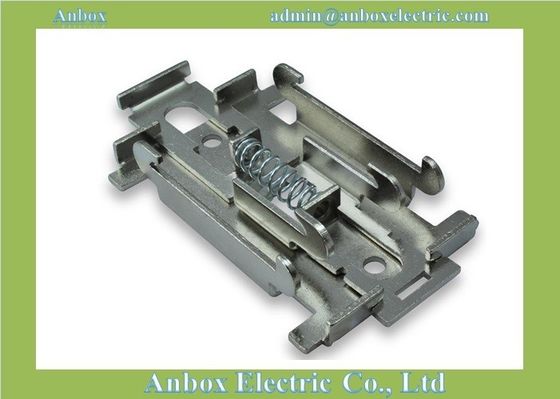

Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips 0Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips 1Metal Solid State Relay Clip FHSD35 Din Rail Mounting Clips 2
