Product Details:
Payment & Shipping Terms:
|
| Function: | Waterproof, Dustproof, Resistant To 80 Degrees | Fittings: | Din Rail,cable Gland |
|---|---|---|---|
| OEM: | Offer | Product Name: | Waterproof Box |
| Lock: | With Screws | Color: | Gray |
| High Light: | 240x160x120mm Waterproof Plastic Enclosure Box,SGS Waterproof Plastic Enclosure Box,weather tight enclosure For Enquipment |
||

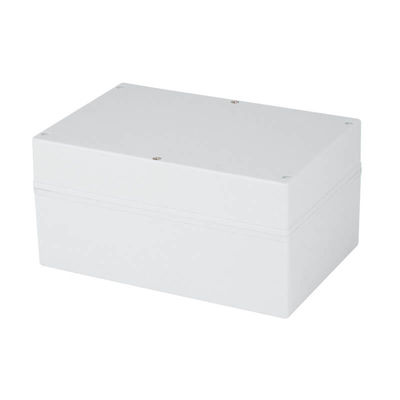

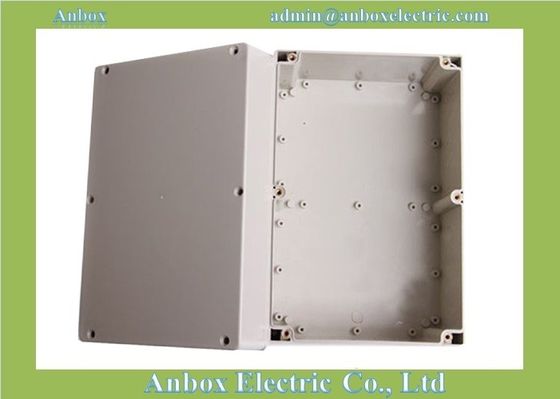

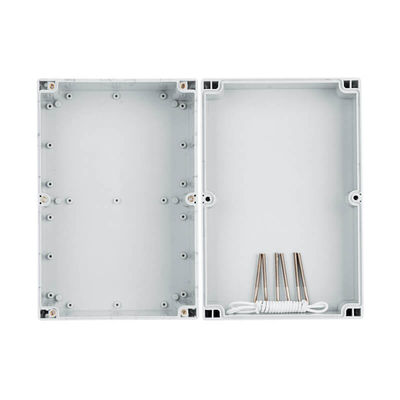

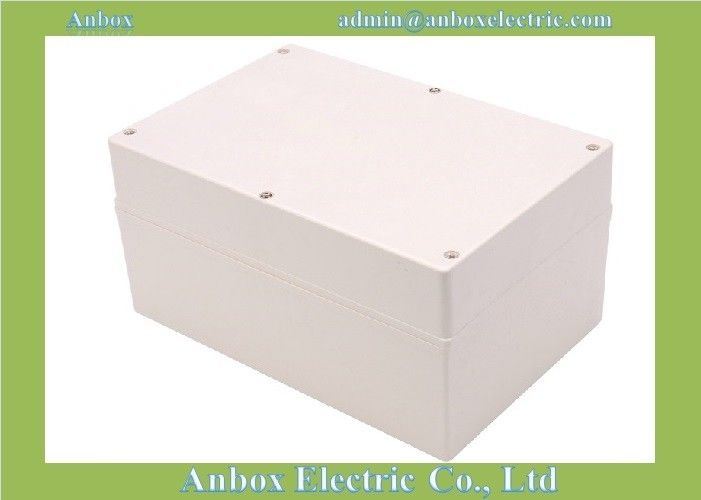

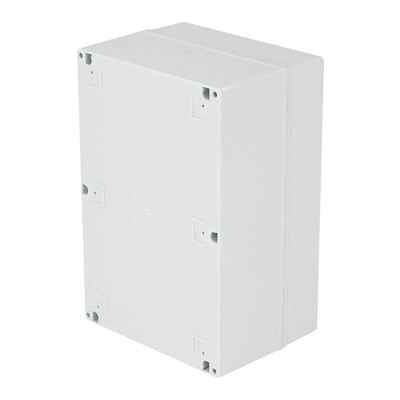

240x160x120mm Weather tight Waterproof Plastic Enclosure with cut holes For Enquipment
| Material | ABSPC New material |
| Waterproof Level | IP67 |
| Flame Retardant Rating | UL94V-0 is customizable |
| Certification | RoHS;UL(Materia);SGS;CE;IP68 |
| Function | Impact resistance,Heat resistance,Cold resistance,Chemical resistance, Excellent electrical performance smooth surface etc...... |
| Feature | Sealing ring is designed with casting 360 degree sealing ,has good resilience, and IP rate can be upto ip68. the bottom is mounted with terminal base for inserting the terminals |
| Impact Strength Rating of Plastic | ABS in IK07, PC in 08 |
| Application |
Widely used in indoor and outdoor equipment of electrical , telecommunication ,fire protection steel and iron smelting , petrol and chemical ,power system,railway,construction building,mine, seaport hotel,vessel,engineering etc.. |
| Product Processing | Can be customized according to customer requirements |
| Product Acessories | Optional grid backplane ,hanging feet,rails |
| Product Size | Can be customized in many specifications,specific consulting customer service |
| Packing | Customer service |
| MOQ | Small order can be accepted |
| Lead Time | 5-9 workdays |
| Payment Term | TT,Paypal |
| Design Ability | We can supply sample,OEM&ODM is welcomed(Design,Engineering,Photographing,Sample,Production |
Reference drawing
Other sizes
| P.N | Model No. | Dimension |
| 1 | 63A-1 | 63*58*35 |
| 2 | 65A-1 | 65*50*55 |
| 3 | 83A-1 | 83*58*33 |
| 4 | 83B-1 | 83*81*56 |
| 5 | 95A-1 | 95*65*55 |
| 6 | 96A-1 | 96*96*60 |
| 7 | 100A-1 | 100*68*50 |
| 8 | 100B-1 | 100*100*50 |
| 9 | 100C-1 | 100*100*75 |
| 10 | 100D-1 | 100*100*90 |
| 11 | 110A-1 | 110*80*45 |
| 12 | 110B-1 | 110*80*70 |
| 13 | 110C-1 | 110*80*85 |
| 14 | 115A-1 | 115*90*55 |
| 15 | 120A-1 | 120*120*90 |
| 16 | 125A-1 | 125*85*60 |
| 17 | 125B-1 | 125*125*75 |
| 18 | 125C-1 | 125*125*100 |
| 19 | 130A-1 | 130*80*70 |
| 20 | 130B-1 | 130*80*85 |
| 21 | 135A-1 | 135*80*90 |
| 22 | 140A-1 | 140*105*45 |
| 23 | 140B-1 | 140*105*63 |
| 24 | 145A-1 | 145*102*31 |
| 25 | 145B-1 | 145*145*60 |
| 26 | 145C-1 | 145*145*90 |
| 27 | 150A-1 | 150*150*120 |
| 28 | 155A-1 | 155*115*75 |
| 29 | 158A-1 | 158*90*40 |
| 30 | 158B-1 | 158*90*60 |
| 31 | 158C-1 | 158*90*75 |
| 32 | 160A-1 | 160*45*55 |
| 33 | 160B-1 | 160*80*55 |
| 34 | 160D-1 | 160*110*90 |
| 35 | 160F-1 | 160*160*60 |
| 36 | 160E-1 | 160*160*90 |
| 37 | 160C-1 | 160*160*120 |
| 38 | 170C-1 | 170*120*21 |
| 39 | 170A-1 | 170*120*100 |
| 40 | 170B-1 | 170*140*95 |
| 41 | 175A-1 | 175*125*75 |
| 42 | 175B-1 | 175*125*100 |
| 43 | 175C-1 | 175*175*100 |
| 44 | 180A-1 | 180*80*70 |
| 45 | 180B-1 | 180*80*85 |
| 46 | 180C-1 | 180*130*60 |
| 47 | 180D-1 | 180*130*90 |
| 48 | 190A-1 | 190*140*70 |
| 49 | 192A-1 | 192*188*100 |
| 50 | 194A-1 | 194*80*56 |
| 51 | 200A-1 | 200*120*56 |
| 52 | 200B-1 | 200*120*75 |
| 53 | 200C-1 | 200*120*90 |
| 54 | 200D-1 | 200*120*113 |
| 55 | 200E-1 | 200*150*100 |
| 56 | 200F-1 | 200*150*130 |
| 57 | 200H-1 | 200*200*95 |
| 58 | 200I-1 | 200*200*130 |
| 59 | 210A-1 | 210*120*110 |
| 60 | 210B-1 | 210*155*65 |
| 61 | 210C-1 | 210*155*94 |
| 62 | 210D-1 | 210*155*112 |
| 63 | 230A-1 | 230*150*60 |
| 64 | 230B-1 | 230*150*85 |
| 65 | 235A-1 | 235*165*45 |
| 66 | 240A-1 | 240*160*90 |
| 67 | 240B-1 | 240*160*120 |
| 68 | 240D-1 | 240*175*68 |
| 69 | 240E-1 | 240*175*117 |
| 70 | 240C-1 | 240*190*90 |
| 71 | 248A-1 | 248*77*85 |
| 72 | 248B-1 | 248*148*100 |
| 73 | 250A-1 | 250*80*70 |
| 74 | 250B-1 | 250*80*85 |
| 75 | 250C-1 | 250*150*100 |
| 76 | 250D-1 | 250*150*130 |
| 77 | 250E-1 | 250*170*120 |
| 78 | 250F-1 | 250*190*99 |
| 79 | 263A-1 | 263*182*60 |
| 80 | 263B-1 | 263*182*95 |
| 81 | 263C-1 | 263*182*125 |
| 82 | 280A-1 | 280*190*130 |
| 83 | 280B-1 | 280*190*180 |
| 84 | 280E-1 | 280*195*86 |
| 85 | 280C-1 | 280*195*135 |
| 86 | 280D-1 | 280*280*130 |
| 87 | 280E-1 | 280*280*180 |
| 88 | 290A-1 | 290*200*130 |
| 89 | 290B-1 | 290*210*60 |
| 90 | 290C-1 | 290*210*100 |
| 91 | 295A-1 | 295*155*56 |
| 92 | 295B-1 | 295*155*96 |
| 93 | 295C-1 | 295*155*112 |
| 94 | 300A-1 | 300*200*125 |
| 95 | 300B-1 | 300*280*140 |
| 96 | 320A-1 | 320*240*60 |
| 97 | 320B-1 | 320*240*110 |
| 98 | 320C-1 | 320*240*140 |
| 99 | 320D-1 | 320*240*155 |
| 100 | 340A-1 | 340*270*60 |
| 101 | 340B-1 | 340*280*130 |
| 102 | 340C-1 | 340*280*180 |
| 103 | 380A-1 | 380*190*130 |
| 104 | 380B-1 | 380*190*180 |
| 105 | 380C-1 | 380*260*105 |
| 106 | 380D-1 | 380*260*120 |
| 107 | 380E-1 | 380*260*140 |
| 108 | 380F-1 | 380*280*130 |
| 109 | 380G-1 | 380*280*180 |
