Product Details:
Payment & Shipping Terms:
|
| External Size: | 320*240*110mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. | Payment: | Western Union, T/T |
| High Light: | 320mm Clear Plastic Enclosures For Electronics,4.33inch clear plastic enclosures for electronics,320*240*110mm clear enclosure box |
||

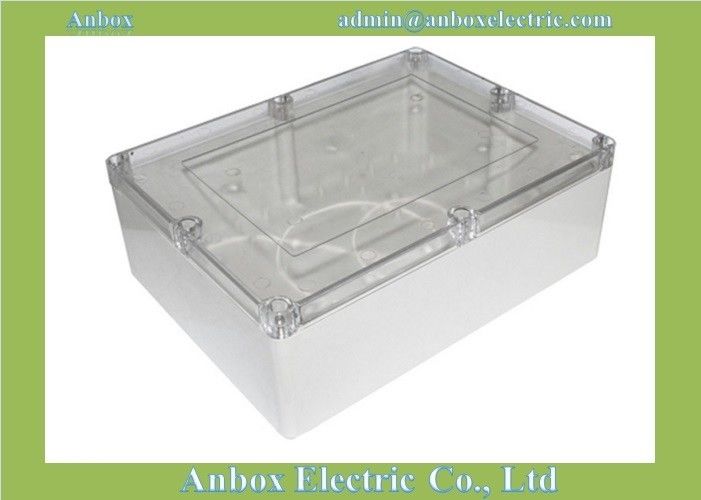

320*240*110mm Plastic Electrical Switch Protector Junction Box Case
1, Model:320A-2
2,Material: ABS
3, Color: Gray with clear cover
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH)
6, Assembly screws included.
7, Multi-directional mounting feet

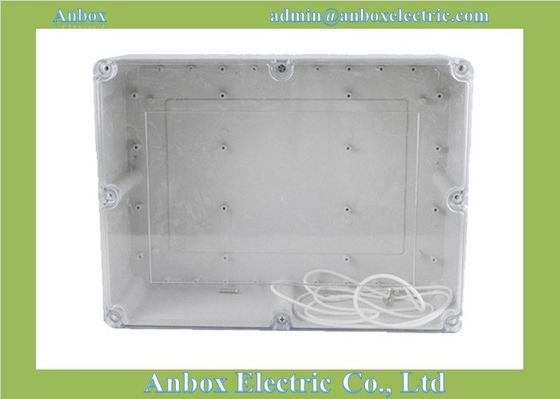

Detailed pictures
Referece Drawing
More sizes
| P.N | Model No. | Dimension |
| 1 | 63A-2 | 63*58*35 |
| 2 | 83A-2 | 83*58*33 |
| 3 | 83B-2 | 83*81*56 |
| 4 | 95A-2 | 95*65*55 |
| 5 | 96A-2 | 96*96*60 |
| 6 | 100A-2 | 100*68*50 |
| 7 | 110A-2 | 110*80*45 |
| 8 | 110B-2 | 110*80*70 |
| 9 | 110C-2 | 110*80*85 |
| 10 | 115A-2 | 115*90*55 |
| 11 | 120A-2 | 120*120*90 |
| 12 | 125A-2 | 125*125*75 |
| 13 | 125B-2 | 125*125*100 |
| 14 | 130A-2 | 130*80*70 |
| 15 | 130B-2 | 130*80*85 |
| 16 | 145C-2 | 145*145*90 |
| 17 | 158B-2 | 158*90*40 |
| 18 | 158A-2 | 158*90*60 |
| 19 | 160A-2 | 160*45*55 |
| 20 | 160B-2 | 160*80*55 |
| 21 | 160C-2 | 160*110*90 |
| 22 | 160E-2 | 160*160*90 |
| 23 | 170A-2 | 170*120*100 |
| 24 | 170B-2 | 170*140*95 |
| 25 | 175A-2 | 175*125*75 |
| 26 | 175B-2 | 175*125*100 |
| 27 | 180A-2 | 180*80*70 |
| 28 | 192B-2 | 192*188*100 |
| 29 | 200A-2 | 200*120*56 |
| 30 | 200B-2 | 200*120*75 |
| 31 | 200C-2 | 200*120*113 |
| 32 | 200D-2 | 200*200*95 |
| 33 | 200F-2 | 200*200*130 |
| 34 | 230A-2 | 230*150*87 |
| 35 | 240A-2 | 240*160*90 |
| 36 | 240B-2 | 240*160*120 |
| 37 | 250A-2 | 250*80*70 |
| 38 | 250B-2 | 250*80*85 |
| 39 | 250C-2 | 250*150*100 |
| 40 | 250D-2 | 250*150*130 |
| 41 | 263A-2 | 263*182*60 |
| 42 | 263B-2 | 263*182*95 |
| 43 | 263C-2 | 263*182*125 |
| 44 | 280A-2 | 280*190*130 |
| 45 | 290A-2 | 290*210*60 |
| 46 | 290B-2 | 290*210*100 |
| 47 | 300A-2 | 300*280*140 |
| 48 | 320A-1 | 320*240*60 |
| 49 | 320A-2 | 320*240*110 |
| 50 | 320B-2 | 320*240*140 |
| 51 | 380A-2 | 380*260*85 |
| 52 | 380B-2 | 380*260*105 |
| 53 | 380C-2 | 380*260*120 |
| 54 | 380D-2 | 380*260*140 |
