Square Plastic IP66 250*150*130mm Clear Lid Enclosures

I'm Online Chat Now
Good quality and good service.Very professional supplier, we will have nice cooperation in the near future.

—— Kim

Product was good quality! Fast Shipping! Service was excellent and very helpful. Item arrive quickly.

—— Pierre

Good company with nice service and high quality.One of our reliable supplier.Goods are delivered in time and nice package.

—— Houston

Square Plastic IP66 250*150*130mm Clear Lid Enclosures

Square Plastic IP66 250*150*130mm Clear Lid Enclosures
Square Plastic IP66 250*150*130mm Clear Lid Enclosures Square Plastic IP66 250*150*130mm Clear Lid Enclosures Square Plastic IP66 250*150*130mm Clear Lid Enclosures

Large Image :  Square Plastic IP66 250*150*130mm Clear Lid Enclosures Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: 250D-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $1~$10
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
External Size: 250*150*130mm Protection Level: IP65
Type: Junction Box Material: ABS PC
Color: Grey , Transparent Wall Thinkness: About 3mm
OEM: Available Lead Time: 7 Days
Packing: Pp Bag For Each Box, Several Boxes To A Carton Shipping: DHL/UPS/TNT/Fedex/China Post/sea/etc.
Payment: Western Union, T/T
High Light:

250*150*130mm Clear Lid Enclosures

,

IP66 Clear Lid Enclosures

,

AnBox plastic enclosure box

250*150*130mm IP66 Square Clear Lid Plastic Enclosures & Boxes For Electronics



Specifications

1, Model:250D-2

2,Material: ABS, PC

3, Color: Gray with clear cover

4, Weatherproofing via user-fitted O-ring (supplied).

5, Dimensions (WxDxH)

  • in: 9.84x5.91x5.12
  • mm: 250*80*85

6, Assembly screws included.

7, Multi-directional mounting feet



Features



1. Material :ABS,PC,or ABS+PC with flame retardant.
2. IP65 rating
3. Operating Temperature:-40 to 80
4. Bosses on internal base allow fixing PCB horizontally or connection of terminals ,etc into threaded brass
5. Higher intensity, and more durable.
6. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
7. Color and material can be changed as your requirement
8. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc ,
9. Your design is welcome



Detailed pictures

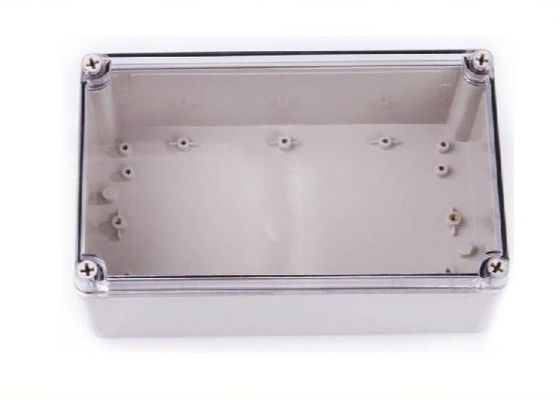

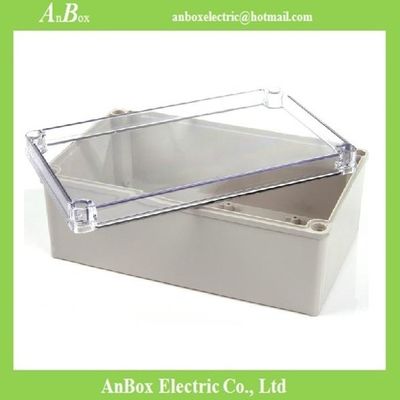

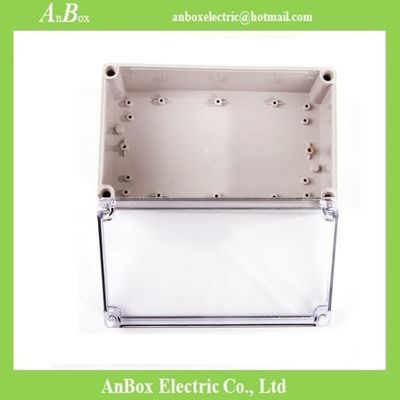

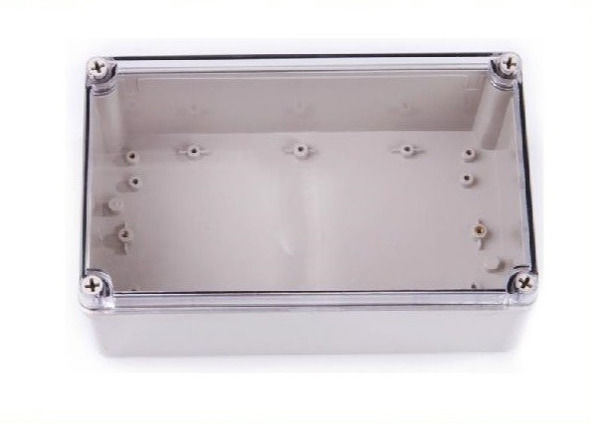

Square Plastic IP66 250*150*130mm Clear Lid Enclosures 0

Square Plastic IP66 250*150*130mm Clear Lid Enclosures 1



Square Plastic IP66 250*150*130mm Clear Lid Enclosures 2

Square Plastic IP66 250*150*130mm Clear Lid Enclosures 3



Reference drawing

Square Plastic IP66 250*150*130mm Clear Lid Enclosures 4



More sizes



P.N Model No. Dimension
1 63A-2 63*58*35
2 83A-2 83*58*33
3 83B-2 83*81*56
4 95A-2 95*65*55
5 96A-2 96*96*60
6 100A-2 100*68*50
7 110A-2 110*80*45
8 110B-2 110*80*70
9 110C-2 110*80*85
10 115A-2 115*90*55
11 120A-2 120*120*90
12 125A-2 125*125*75
13 125B-2 125*125*100
14 130A-2 130*80*70
15 130B-2 130*80*85
16 145C-2 145*145*90
17 158B-2 158*90*40
18 158A-2 158*90*60
19 160A-2 160*45*55
20 160B-2 160*80*55
21 160C-2 160*110*90
22 160E-2 160*160*90
23 170A-2 170*120*100
24 170B-2 170*140*95
25 175A-2 175*125*75
26 175B-2 175*125*100
27 180A-2 180*80*70
28 192B-2 192*188*100
29 200A-2 200*120*56
30 200B-2 200*120*75
31 200C-2 200*120*113
32 200D-2 200*200*95
33 200F-2 200*200*130
34 230A-2 230*150*87
35 240A-2 240*160*90
36 240B-2 240*160*120
37 250A-2 250*80*70
38 250B-2 250*80*85
39 250C-2 250*150*100
40 250D-2 250*150*130
41 263A-2 263*182*60
42 263B-2 263*182*95
43 263C-2 263*182*125
44 280A-2 280*190*130
45 290A-2 290*210*60
46 290B-2 290*210*100
47 300A-2 300*280*140
48 320A-1 320*240*60
49 320A-2 320*240*110
50 320B-2 320*240*140
51 380A-2 380*260*85
52 380B-2 380*260*105
53 380C-2 380*260*120
54 380D-2 380*260*140
