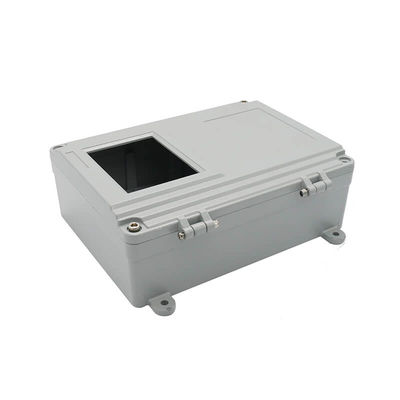

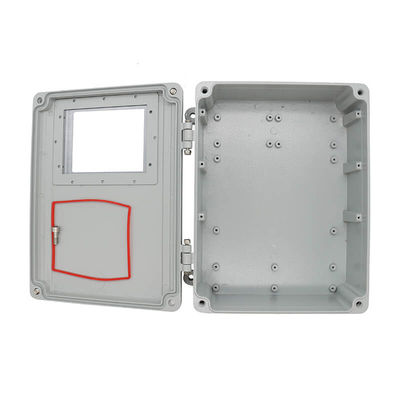

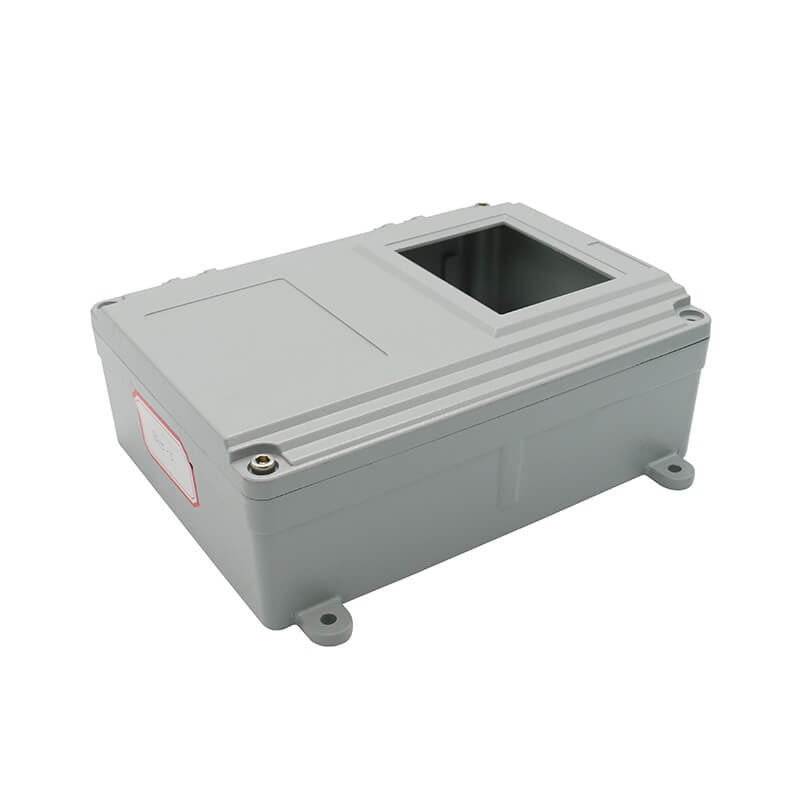

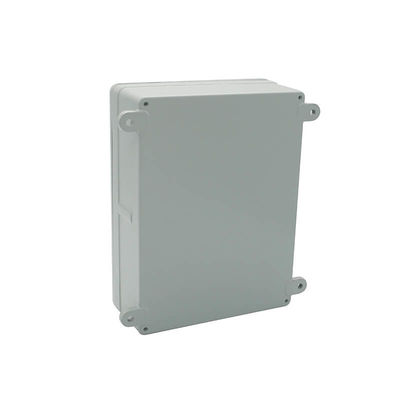

25x19x9cm Hinged Electrical Metal Junction Box With Window

25x19x9cm Hinged Electrical Metal Junction Box With Window
25x19x9cm Hinged Electrical Metal Junction Box With Window 25x19x9cm Hinged Electrical Metal Junction Box With Window 25x19x9cm Hinged Electrical Metal Junction Box With Window 25x19x9cm Hinged Electrical Metal Junction Box With Window

Large Image :  25x19x9cm Hinged Electrical Metal Junction Box With Window Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: AB-FA-15w
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $12~$20
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 1000pcs/day
Detailed Product Description
External Size: 250x190x90 Protection Level: IP66
Type: Junction Box Material: Aluminum Alloy
Box Color: Light Grey OEM: Available
Surface Finish: Powder Painting Product Name: Die Casting Enclosure
Application: Electrical And Wires Installation
High Light:

Hinged Electrical Metal Junction Box

,

25x19x9cm electrical metal junction box

,

25x19x9cm metal conduit box

Product Description

250x190x90mm Metal Hinged Die Cast Enclosure With Window Wall Mount

1.Die-casting aluminium alloy enclosure, with the matte surface;

2.Operating Temperature: -40°C to 120°C;

3.Radio frequency interference resistance, easy tooling;

4.External mounting brackets allow the box to be mounted on the wall or panels;

5.Using silica gel sealing strip, good sealing performance, waterproof, dustproof and anti-corrosion, the Protection rank up to IP66;

6.Most of products can be modifications, such as drilling holes, adding and changing PCB pillars;

7.Your design is welcome



Specifications

1, Model: AB-FA-15w
2,Material: Aluminum Alloy
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH):250*190*90mm
6, Assembly screws included.



Drawing Reference

25x19x9cm Hinged Electrical Metal Junction Box With Window 0


 Other sizes



Model NO. Size(mm) Model NO. Size(mm)
AB-FA-1 64*58*35 AB-FA-5-1 222*145*55
AB-FA-18 80*75*60 AB-FA-5 222*145*55
AB-FA-9 90*36*31 AB-FA-6 222*145*75
AB-FA-7-1 98*64*35 AB-FA-6-1 222*145*80
AB-FA-4 100*68*50 AB-FA-10 228*150*75
AB-FA-43 100*100*60 AB-FA-24-16 240*160*80
AB-FA-7 111*64*37 AB-FA-64 240*160*100
AB-FA-24 115*65*55 AB-FA-21 250*80*64
AB-FA-34 115*90*58 AB-FA-22 250*80*80
AB-FA-34-1 115*90*58 AB-FA-36 250*120*82
AB-FA-VT2-1 120*80*55 AB-FA-15 250*190*90
AB-FA-VT2 120*80*55 AB-FA-15 window 250*190*90
AB-FA-VT120 120*80*65 AB-FA-39 260*160*90
AB-FA-60 120*120*82 AB-FA-66 260*185*96
AB-FA-2-3 125*80*58 AB-FA-67 260*185*128
AB-FA-2-2 135*85*56 AB-FA-67-1 260*185*128
AB-FA-44 140*140*75 AB-FA-65 265*185*75
AB-FA-58 145*100*45 AB-FA-75 280*230*110
AB-FA-7-2 150*64*37 AB-FA-75-1 280*230*110
AB-FA-29 150*100*80 AB-FA-68 300*210*100
AB-FA-25 160*100*60 AB-FA-68-1 300*210*100 hinge
AB-FA-26 160*100*65 AB-FA-69 300*210*130
AB-FA-61 160*160*70 AB-FA-38 320*120*90
AB-FA-62 160*160*90 AB-FA-38-1 320*120*90 hinge
AB-FA-62-1 160*160*90 AB-FA-70 340*235*95
AB-FA-25-1 165*95*39 AB-FA-70-1 340*235*95 hinge
AB-FA-20 175*80*56 AB-FA-71 340*235*120
AB-FA-20-1 175*80*80 AB-FA-71-1 340*235*120 hinge
AB-FA-8 180*140*55 AB-FA-72 340*235*135
AB-FA-13 185*135*85 AB-FA-72-1 340*235*135 hinge
AB-FA-3 188*120*78 AB-FA-73 340*235*160
AB-FA-12-S 200*130*60 AB-FA-73-1 340*235*160 hinge
AB-FA-12-1 200*130*80 AB-FA-40 360*160*95
AB-FA-14 220*155*95 AB-FA-41 360*160*135
