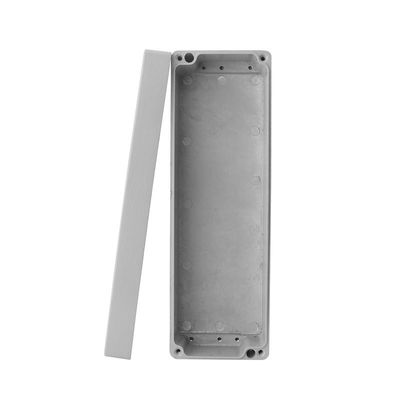

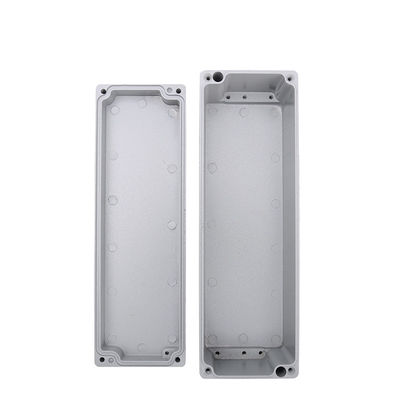

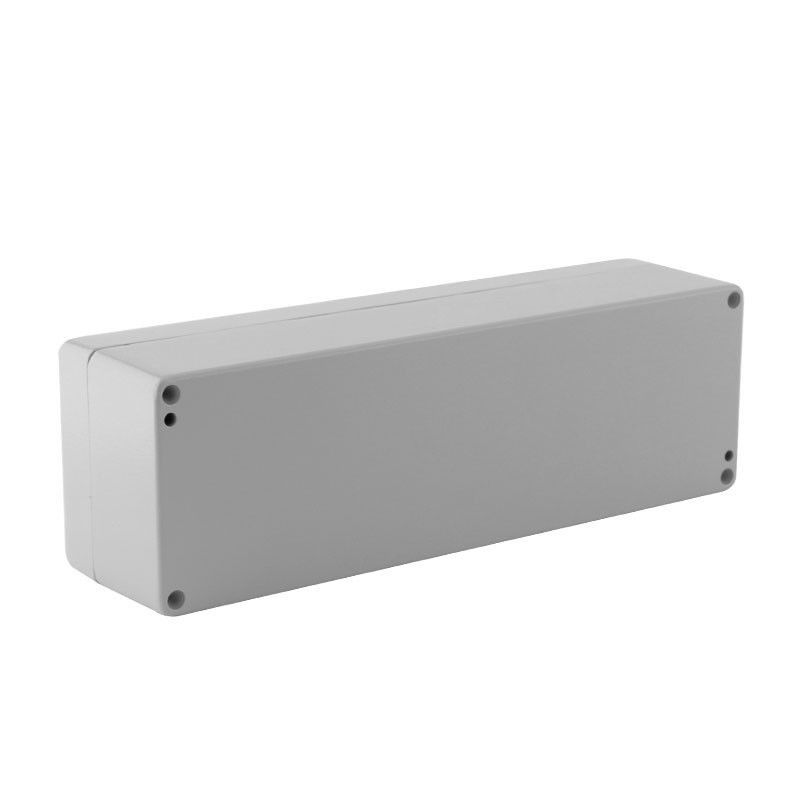

250x80x80mm Rectangular Waterproof Metal Junction Box

250x80x80mm Rectangular Waterproof Metal Junction Box
250x80x80mm Rectangular Waterproof Metal Junction Box 250x80x80mm Rectangular Waterproof Metal Junction Box 250x80x80mm Rectangular Waterproof Metal Junction Box 250x80x80mm Rectangular Waterproof Metal Junction Box

Large Image :  250x80x80mm Rectangular Waterproof Metal Junction Box Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: AB-FA-22
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $12~$20
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 1000pcs/day
Detailed Product Description
External Size: 250x80x80 Protection Level: IP66
Type: Junction Box Material: Aluminum Alloy
Surface Finish: Powder Painting OEM: Available
Lead Time: 7 Days Product Name: Die Casting Enclosure
Application: Electrical And Wires Installation
High Light:

250x80x80mm Waterproof Metal Junction Box

,

Rectangular Waterproof Metal Junction Box

,

250x80x80mm aluminum junction box

Product Description

250x80x80mm Rectangular Metal Cast Weatherproof Outlet Box With Lid

1.Die-casting aluminium alloy enclosure, with the matte surface;

2.Operating Temperature: -40°C to 120°C;

3.Radio frequency interference resistance, easy tooling;

4.External mounting brackets allow the box to be mounted on the wall or panels;

5.Using silica gel sealing strip, good sealing performance, waterproof, dustproof and anti-corrosion, the Protection rank up to IP66;

6.Most of products can be modifications, such as drilling holes, adding and changing PCB pillars;

7.Your design is welcome





Specifications

1, Model: AB-FA-22
2,Material: Aluminum Alloy
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH):250*80*80mm
6, Assembly screws included.



Drawing Reference

250x80x80mm Rectangular Waterproof Metal Junction Box 0


 Other sizes



Model NO. Size(mm) Model NO. Size(mm)
AB-FA-1 64*58*35 AB-FA-5-1 222*145*55
AB-FA-18 80*75*60 AB-FA-5 222*145*55
AB-FA-9 90*36*31 AB-FA-6 222*145*75
AB-FA-7-1 98*64*35 AB-FA-6-1 222*145*80
AB-FA-4 100*68*50 AB-FA-10 228*150*75
AB-FA-43 100*100*60 AB-FA-24-16 240*160*80
AB-FA-7 111*64*37 AB-FA-64 240*160*100
AB-FA-24 115*65*55 AB-FA-21 250*80*64
AB-FA-34 115*90*58 AB-FA-22 250*80*80
AB-FA-34-1 115*90*58 AB-FA-36 250*120*82
AB-FA-VT2-1 120*80*55 AB-FA-15 250*190*90
AB-FA-VT2 120*80*55 AB-FA-15 window 250*190*90
AB-FA-VT120 120*80*65 AB-FA-39 260*160*90
AB-FA-60 120*120*82 AB-FA-66 260*185*96
AB-FA-2-3 125*80*58 AB-FA-67 260*185*128
AB-FA-2-2 135*85*56 AB-FA-67-1 260*185*128
AB-FA-44 140*140*75 AB-FA-65 265*185*75
AB-FA-58 145*100*45 AB-FA-75 280*230*110
AB-FA-7-2 150*64*37 AB-FA-75-1 280*230*110
AB-FA-29 150*100*80 AB-FA-68 300*210*100
AB-FA-25 160*100*60 AB-FA-68-1 300*210*100 hinge
AB-FA-26 160*100*65 AB-FA-69 300*210*130
AB-FA-61 160*160*70 AB-FA-38 320*120*90
AB-FA-62 160*160*90 AB-FA-38-1 320*120*90 hinge
AB-FA-62-1 160*160*90 AB-FA-70 340*235*95
AB-FA-25-1 165*95*39 AB-FA-70-1 340*235*95 hinge
AB-FA-20 175*80*56 AB-FA-71 340*235*120
AB-FA-20-1 175*80*80 AB-FA-71-1 340*235*120 hinge
AB-FA-8 180*140*55 AB-FA-72 340*235*135
AB-FA-13 185*135*85 AB-FA-72-1 340*235*135 hinge
AB-FA-3 188*120*78 AB-FA-73 340*235*160
AB-FA-12-S 200*130*60 AB-FA-73-1 340*235*160 hinge
AB-FA-12-1 200*130*80 AB-FA-40 360*160*95
AB-FA-14 220*155*95 AB-FA-41 360*160*135
