Product Details:
Payment & Shipping Terms:
|
External Size: | 228x150x75 | Protection Level: | IP66 |
---|---|---|---|
Type: | Metal Junction Box | Material: | Aluminum Alloy |
Box Color: | Light Grey | Application: | Electrical And Wires Installation |
Function: | Airtight, Waterproof, Dustproof | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
Payment Terms: | Western Union, T/T, Paypal | ||
High Light: | 228x150x75mm Waterproof Metal Junction Box,Aluminium Waterproof Metal Junction Box,AnBox metal box for electronics |
This serial enclosure is widely used for liquid fluid, pressure, moisture etc, sensor industry, with watertight and explosion proof capability, material is aluminum alloy

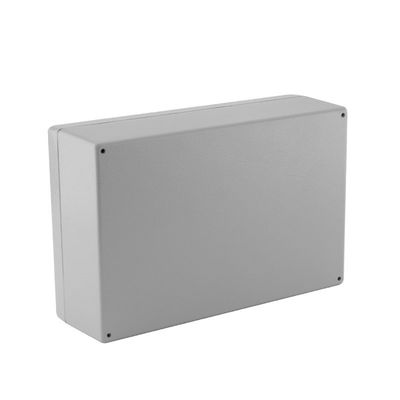

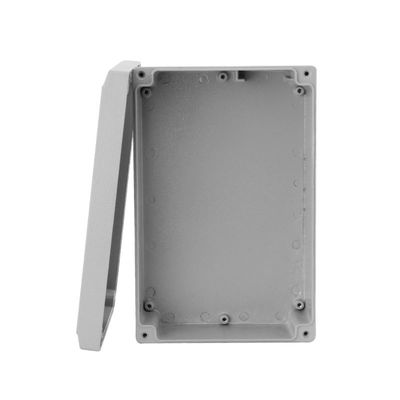

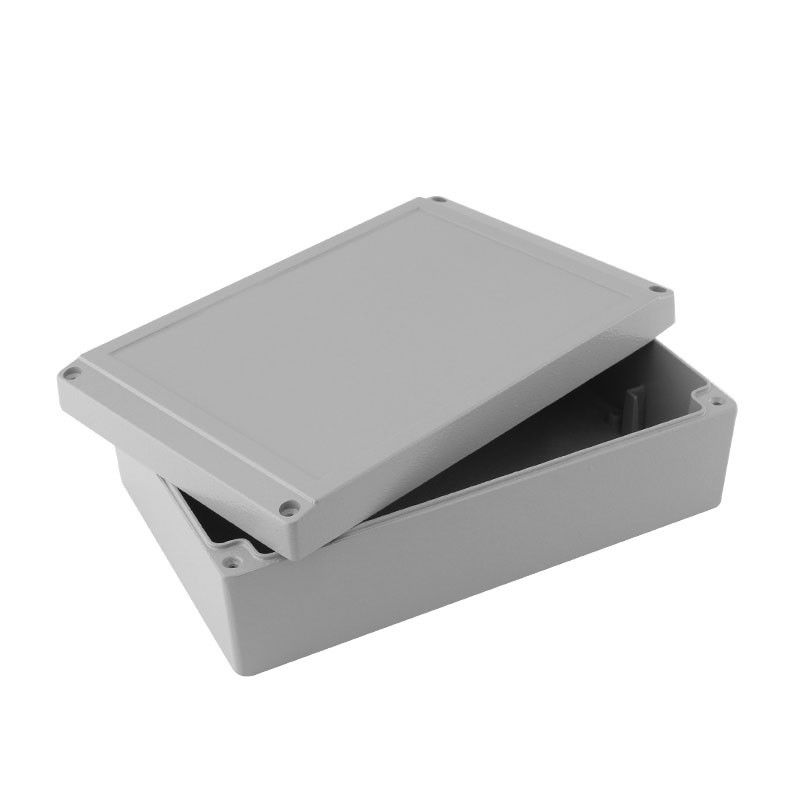

228x150x75mm Outdoor Metal Enclosure Aluminium Box Manufacturers
1, Model: AB-FA-10
2,Material: Aluminum Alloy
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH):228*150*75mm
6, Assembly screws included.
Other sizes
Model NO. | Size(mm) | Model NO. | Size(mm) |
AB-FA-1 | 64*58*35 | AB-FA-5-1 | 222*145*55 |
AB-FA-18 | 80*75*60 | AB-FA-5 | 222*145*55 |
AB-FA-9 | 90*36*31 | AB-FA-6 | 222*145*75 |
AB-FA-7-1 | 98*64*35 | AB-FA-6-1 | 222*145*80 |
AB-FA-4 | 100*68*50 | AB-FA-10 | 228*150*75 |
AB-FA-43 | 100*100*60 | AB-FA-24-16 | 240*160*80 |
AB-FA-7 | 111*64*37 | AB-FA-64 | 240*160*100 |
AB-FA-24 | 115*65*55 | AB-FA-21 | 250*80*64 |
AB-FA-34 | 115*90*58 | AB-FA-22 | 250*80*80 |
AB-FA-34-1 | 115*90*58 | AB-FA-36 | 250*120*82 |
AB-FA-VT2-1 | 120*80*55 | AB-FA-15 | 250*190*90 |
AB-FA-VT2 | 120*80*55 | AB-FA-15 window | 250*190*90 |
AB-FA-VT120 | 120*80*65 | AB-FA-39 | 260*160*90 |
AB-FA-60 | 120*120*82 | AB-FA-66 | 260*185*96 |
AB-FA-2-3 | 125*80*58 | AB-FA-67 | 260*185*128 |
AB-FA-2-2 | 135*85*56 | AB-FA-67-1 | 260*185*128 |
AB-FA-44 | 140*140*75 | AB-FA-65 | 265*185*75 |
AB-FA-58 | 145*100*45 | AB-FA-75 | 280*230*110 |
AB-FA-7-2 | 150*64*37 | AB-FA-75-1 | 280*230*110 |
AB-FA-29 | 150*100*80 | AB-FA-68 | 300*210*100 |
AB-FA-25 | 160*100*60 | AB-FA-68-1 | 300*210*100 hinge |
AB-FA-26 | 160*100*65 | AB-FA-69 | 300*210*130 |
AB-FA-61 | 160*160*70 | AB-FA-38 | 320*120*90 |
AB-FA-62 | 160*160*90 | AB-FA-38-1 | 320*120*90 hinge |
AB-FA-62-1 | 160*160*90 | AB-FA-70 | 340*235*95 |
AB-FA-25-1 | 165*95*39 | AB-FA-70-1 | 340*235*95 hinge |
AB-FA-20 | 175*80*56 | AB-FA-71 | 340*235*120 |
AB-FA-20-1 | 175*80*80 | AB-FA-71-1 | 340*235*120 hinge |
AB-FA-8 | 180*140*55 | AB-FA-72 | 340*235*135 |
AB-FA-13 | 185*135*85 | AB-FA-72-1 | 340*235*135 hinge |
AB-FA-3 | 188*120*78 | AB-FA-73 | 340*235*160 |
AB-FA-12-S | 200*130*60 | AB-FA-73-1 | 340*235*160 hinge |
AB-FA-12-1 | 200*130*80 | AB-FA-40 | 360*160*95 |
AB-FA-14 | 220*155*95 | AB-FA-41 | 360*160*135 |
