180x140x55mm Waterproof Metal Junction Box

I'm Online Chat Now
Good quality and good service.Very professional supplier, we will have nice cooperation in the near future.

—— Kim

Product was good quality! Fast Shipping! Service was excellent and very helpful. Item arrive quickly.

—— Pierre

Good company with nice service and high quality.One of our reliable supplier.Goods are delivered in time and nice package.

—— Houston

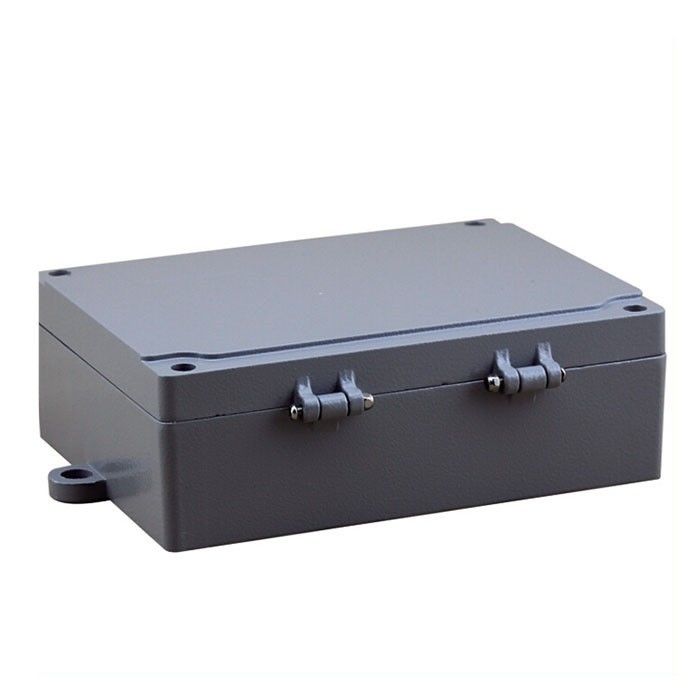

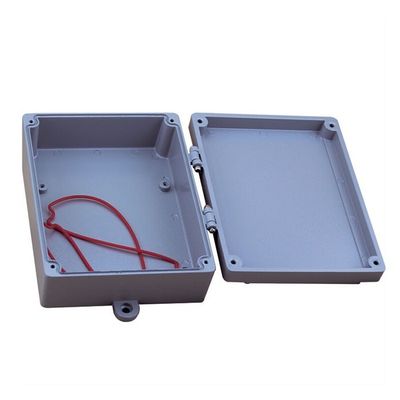

180x140x55mm Waterproof Metal Junction Box

180x140x55mm Waterproof Metal Junction Box
180x140x55mm Waterproof Metal Junction Box 180x140x55mm Waterproof Metal Junction Box

Large Image :  180x140x55mm Waterproof Metal Junction Box Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: AB-FA-8
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $8~$20
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 1000pcs/day
Detailed Product Description
External Size: 180x140x55 Protection Level: IP66
Type: Metal Junction Box Material: Aluminum Alloy
Box Color: Light Grey Application: Electrical And Wires Installation
Function: Airtight, Waterproof, Dustproof Shipping: DHL/UPS/TNT/Fedex/China Post/sea/etc.
Payment Terms: Western Union, T/T, Paypal
High Light:

140x55mm Waterproof Metal Junction Box

,

180mm Waterproof Metal Junction Box

,

IP66 wall mounting enclosure

Specification:

1.Die-casting Al alloy enclosure, with the matte surface;

2.Operating Temperature: -40℃ to 120℃;

3.Radio frequency interference resistance, easy tooling;

4.External mounting brackets allow the box to be mounted on the wall or panels;

5.Using silica gel sealing strip, good sealing performance, waterproof, dustproof and anti-corrosion, Protection rank up to IP67;

6.Most of products can be modifications, such as drilling holes, adding and changing PCB pillars;

7.Your design is welcome





Specifications

1, Model: AB-FA-8
2,Material: Aluminum Alloy
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH): 180x140x55mm
6, Assembly screws included.






 Other sizes



Model NO. Size(mm) Model NO. Size(mm)
AB-FA-1 64*58*35 AB-FA-5-1 222*145*55
AB-FA-18 80*75*60 AB-FA-5 222*145*55
AB-FA-9 90*36*31 AB-FA-6 222*145*75
AB-FA-7-1 98*64*35 AB-FA-6-1 222*145*80
AB-FA-4 100*68*50 AB-FA-10 228*150*75
AB-FA-43 100*100*60 AB-FA-24-16 240*160*80
AB-FA-7 111*64*37 AB-FA-64 240*160*100
AB-FA-24 115*65*55 AB-FA-21 250*80*64
AB-FA-34 115*90*58 AB-FA-22 250*80*80
AB-FA-34-1 115*90*58 AB-FA-36 250*120*82
AB-FA-VT2-1 120*80*55 AB-FA-15 250*190*90
AB-FA-VT2 120*80*55 AB-FA-15 window 250*190*90
AB-FA-VT120 120*80*65 AB-FA-39 260*160*90
AB-FA-60 120*120*82 AB-FA-66 260*185*96
AB-FA-2-3 125*80*58 AB-FA-67 260*185*128
AB-FA-2-2 135*85*56 AB-FA-67-1 260*185*128
AB-FA-44 140*140*75 AB-FA-65 265*185*75
AB-FA-58 145*100*45 AB-FA-75 280*230*110
AB-FA-7-2 150*64*37 AB-FA-75-1 280*230*110
AB-FA-29 150*100*80 AB-FA-68 300*210*100
AB-FA-25 160*100*60 AB-FA-68-1 300*210*100 hinge
AB-FA-26 160*100*65 AB-FA-69 300*210*130
AB-FA-61 160*160*70 AB-FA-38 320*120*90
AB-FA-62 160*160*90 AB-FA-38-1 320*120*90 hinge
AB-FA-62-1 160*160*90 AB-FA-70 340*235*95
AB-FA-25-1 165*95*39 AB-FA-70-1 340*235*95 hinge
AB-FA-20 175*80*56 AB-FA-71 340*235*120
AB-FA-20-1 175*80*80 AB-FA-71-1 340*235*120 hinge
AB-FA-8 180*140*55 AB-FA-72 340*235*135
AB-FA-13 185*135*85 AB-FA-72-1 340*235*135 hinge
AB-FA-3 188*120*78 AB-FA-73 340*235*160
AB-FA-12-S 200*130*60 AB-FA-73-1 340*235*160 hinge
AB-FA-12-1 200*130*80 AB-FA-40 360*160*95
AB-FA-14 220*155*95 AB-FA-41 360*160*135
