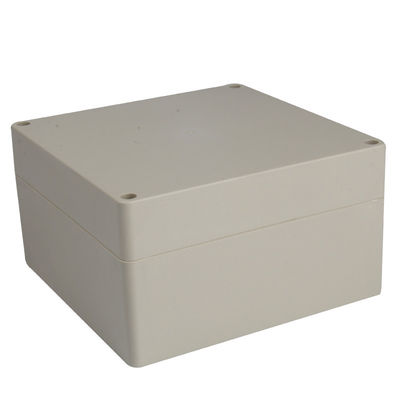

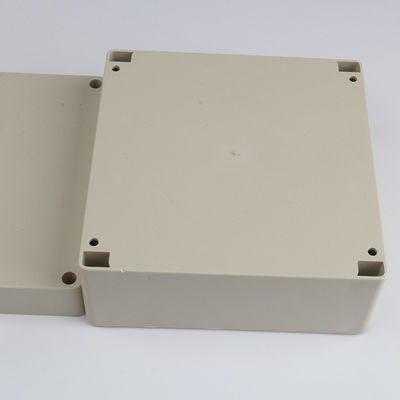

160x160x90mm Plastic Electronic Enclosures With Brass Inserts

160x160x90mm Plastic Electronic Enclosures With Brass Inserts
160x160x90mm Plastic Electronic Enclosures With Brass Inserts 160x160x90mm Plastic Electronic Enclosures With Brass Inserts 160x160x90mm Plastic Electronic Enclosures With Brass Inserts 160x160x90mm Plastic Electronic Enclosures With Brass Inserts

Large Image :  160x160x90mm Plastic Electronic Enclosures With Brass Inserts Get Best Price

Product Details:
Place of Origin: China
Brand Name: Anbox
Certification: CE
Model Number: 160E-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $3~$6
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000pcs/day
Detailed Product Description
Type: Electronic Enclosure Material: Plastic ABS Or PC
Protection Level: IP65 Usage: Indoor And Outdooor, Industry
Size: Range Sizes OEM: Welcome
High Light:

160x160x90mm Plastic Electronic Enclosures

,

380g Plastic Electronic Enclosures

,

Industry abs project enclosure

160x160x90mm waterproof high impact ABS project enclosures with brass inserts



Features:



  1. Designed to IP65 of IEC60529.
  2. Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  3. Captive steel screws thread into brass inserts for cover on/cover off applications
  4. Plastic PCB mounting bosses are standard
  5. Durable, high impact ABS, PC raw material
  6. The Min.average wall thickness is 3mm
  7. Gray cover and transparent cover are available

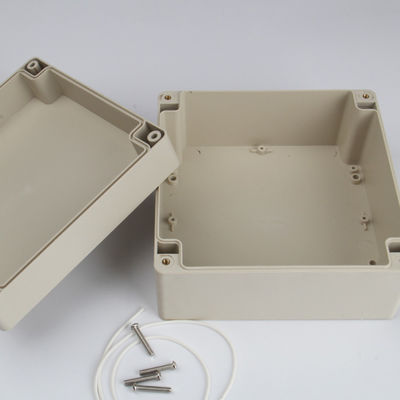

  8. Assembly includes base, gasket, cover, and 4 steel enclosure screws
  9. Custom requirements are available.
  10. Accept OEM order as per your design.





Specifications:



Model No. 160E-1
External Size 160*160*90mm
Net weight 380g
Protection Level IP65
Material ABS, PC, Flame retardant, UV stabilized
Flame rating UL 94-HB, UL94-V2, UL94-V0, UL94-5VA
Temperature Range -20°C~80°C(ABS), -40°C~100°C (PC)
Impact resistant IK07(ABS), IK08(PC)

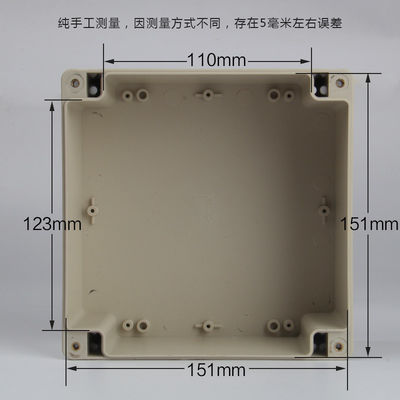

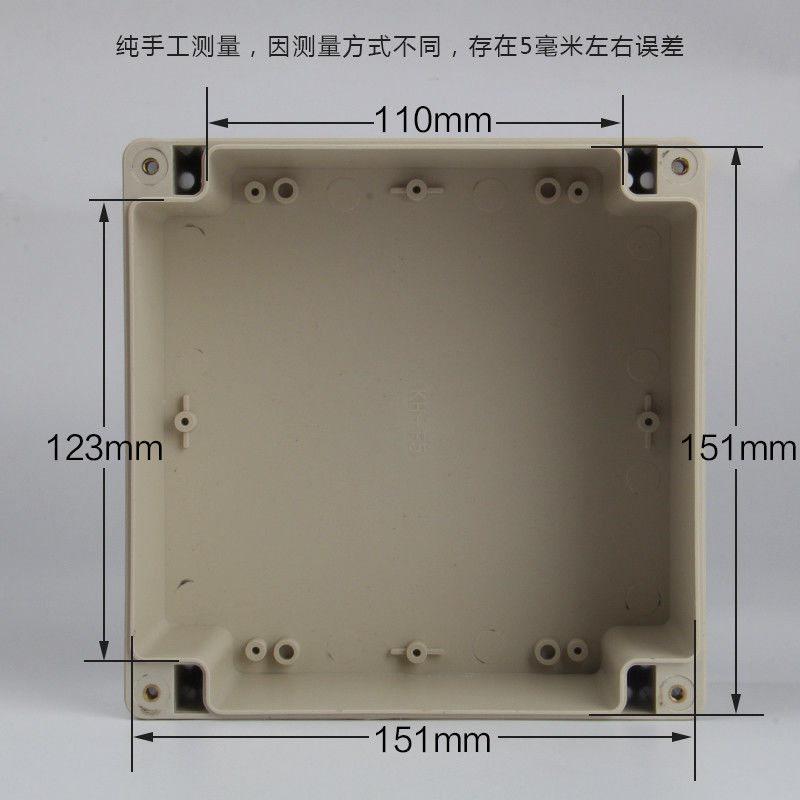

Drawing reference

(might have tolerance)



160x160x90mm Plastic Electronic Enclosures With Brass Inserts 0

Other sizes



P.N Model No. Dimension
1 63A-1 63*58*35
2 65A-1 65*50*55
3 83A-1 83*58*33
4 83B-1 83*81*56
5 95A-1 95*65*55
6 96A-1 96*96*60
7 100A-1 100*68*50
8 100B-1 100*100*50
9 100C-1 100*100*75
10 100D-1 100*100*90
11 110A-1 110*80*45
12 110B-1 110*80*70
13 110C-1 110*80*85
14 115A-1 115*90*55
15 120A-1 120*120*90
16 125A-1 125*85*60
17 125B-1 125*125*75
18 125C-1 125*125*100
19 130A-1 130*80*70
20 130B-1 130*80*85
21 135A-1 135*80*90
22 140A-1 140*105*45
23 140B-1 140*105*63
24 145A-1 145*102*31
25 145B-1 145*145*60
26 145C-1 145*145*90
27 150A-1 150*150*120
28 155A-1 155*115*75
29 158A-1 158*90*40
30 158B-1 158*90*60
31 158C-1 158*90*75
32 160A-1 160*45*55
33 160B-1 160*80*55
34 160D-1 160*110*90
35 160F-1 160*160*60
36 160E-1 160*160*90
37 160C-1 160*160*120
38 170C-1 170*120*21
39 170A-1 170*120*100
40 170B-1 170*140*95
41 175A-1 175*125*75
42 175B-1 175*125*100
43 175C-1 175*175*100
44 180A-1 180*80*70
45 180B-1 180*80*85
46 180C-1 180*130*60
47 180D-1 180*130*90
48 190A-1 190*140*70
49 192A-1 192*188*100
50 194A-1 194*80*56
51 200A-1 200*120*56
52 200B-1 200*120*75
53 200C-1 200*120*90
54 200D-1 200*120*113
55 200E-1 200*150*100
56 200F-1 200*150*130
57 200H-1 200*200*95
58 200I-1 200*200*130
59 210A-1 210*120*110
60 210B-1 210*155*65
61 210C-1 210*155*94
62 210D-1 210*155*112
63 230A-1 230*150*60
64 230B-1 230*150*85
65 235A-1 235*165*45
66 240A-1 240*160*90
67 240B-1 240*160*120
68 240D-1 240*175*68
69 240E-1 240*175*117
70 240C-1 240*190*90
71 248A-1 248*77*85
72 248B-1 248*148*100
73 250A-1 250*80*70
74 250B-1 250*80*85
75 250C-1 250*150*100
76 250D-1 250*150*130
77 250E-1 250*170*120
78 250F-1 250*190*99
79 263A-1 263*182*60
80 263B-1 263*182*95
81 263C-1 263*182*125
82 280A-1 280*190*130
83 280B-1 280*190*180
84 280E-1 280*195*86
85 280C-1 280*195*135
86 280D-1 280*280*130
87 280E-1 280*280*180
88 290A-1 290*200*130
89 290B-1 290*210*60
90 290C-1 290*210*100
91 295A-1 295*155*56
92 295B-1 295*155*96
93 295C-1 295*155*112
94 300B-1 300*200*125
95 300A-1 300*280*140
96 320B-1 320*240*60
97 320A-1 320*240*110
98 320B-1 320*240*140
99 320C-1 320*240*155
100 340A-1 340*270*60
101 340B-1 340*280*130
102 340C-1 340*280*180
103 380A-1 380*190*130
104 380B-1 380*190*180
105 380C-1 380*260*105
106 380D-1 380*260*120
107 380E-1 380*260*140
108 380F-1 380*280*130
109 380G-1 380*280*180
