Product Details:
Payment & Shipping Terms:
|
| Type: | Aluminum Enclosure | Color In Stock: | Anodized White， Black |
|---|---|---|---|
| External Size: | 54*23*80mm In Stock | Length: | Can Be Changed |
| Application: | Electric | Material: | Extrution Alunimum Profile 6063-T5 |
| High Light: | 80mm Extruded Aluminum Project Box,54*23mm extruded aluminum project box,Laser Silkscreen aluminium profile case |
||

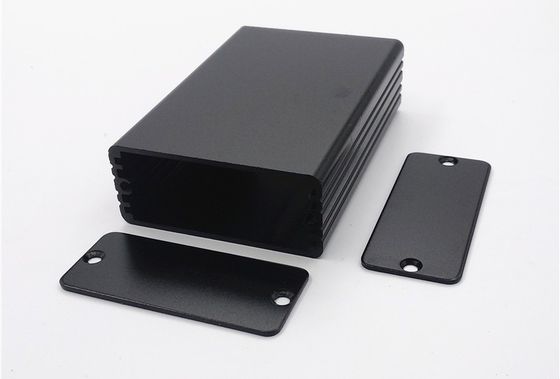

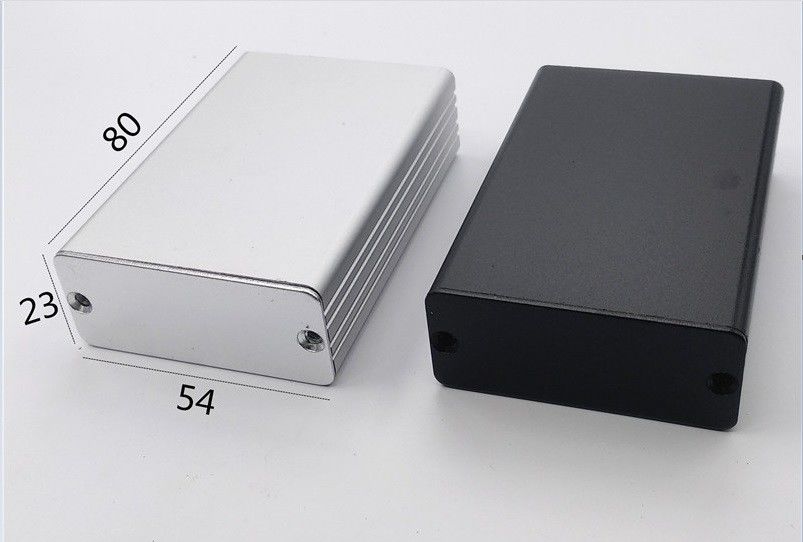

54*23*80mm Extruded Aluminum Box Enclosures
Product Description of this Aluminum extrusion box
| Model NO. | AB011 |
| Structure | one body |
| Section Size | 54*23mm |
| PCB size | <51*1.9mm |
| Surface in stock | sandblasting;Anodizing |

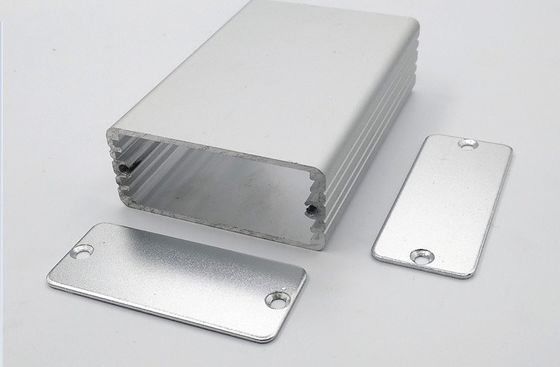

| Components | 1 body, Front end plate, Rear end plate, Screws M2.5*8 |
| Material | Extrusion Aluminum Profile 6063-T5 |
| Cusomization | color ,cutout, laser silkscreen,label, drill holes, change length |
Drawing
More sizes
| Model NO. | Section outer size (mm) |
Length in stock (mm) |
Surface & Color | PCB Slot Width (mm) |
Structure | Remark |
| 001 | 25*25 | 80 | Sandblast Anodizing white & Black |

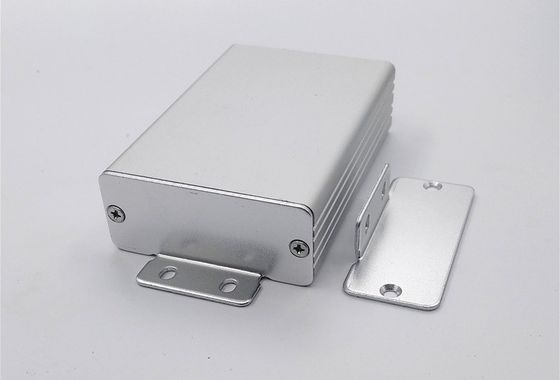

22 | Divided body | flanged end plate is option |
| 002 | 35*26 | 80 | Sandblast Anodizing white & Black |
32 | Divided body | flanged end plate is option |
| 003 | 32*32 | 80/100 | Sandblast Anodizing white & Black |
29.2 | one body | |
| 004 | 42*42 | 80 | Sandblast Anodizing white & Black |
39.2 | one body | |
| 005 | 52*52 | 80 | Sandblast Anodizing white & Black |
49.2 | one body | |
| 006 | 46*19 | 60 | Sandblast Anodizing white & Black |
43.3 | one body | flanged end plate is option |
| 007 | 50*20 | 80 | Sandblast Anodizing white & Black & Blue |
47.7 | Divided body | flanged end plate is option |
| 009 | 50*21 | 80 | Sandblast Anodizing white |
47.7 | one body | |
| 010 | 50*40 | 80 | Sandblast Anodizing white |
46 | one body | flanged end plate is option |
| 011 | 54*23 | 80 | Sandblast Anodizing white & Black |
51 | one body | flanged end plate is option |
| 012 | 55*30 | 80 | Sandblast Anodizing white & Black |
51.2 | one body | flanged end plate is option |
| 013 | 56*56 | 100 | Sandblast Anodizing white & Black |
53.5 | one body | |
| 014 | 58*25 | 80 | Sandblast Anodizing white & Black |
53.3 | one body | flanged end plate is option |
| 015 | 60*21 | 100 | Sandblast Anodizing white |
50.3 | one body | |
| 016 | 70*24 | 100 | Sandblast Anodizing white & Black |
61 | one body | |
| 017 | 108*26 | 100 | Sandblast Anodizing white & Black |
99 | one body | |
| 018 | 115*24 | 100 | Sandblast Anodizing white & Black |
107.2 | one body | |
| 019 | 66*27 | 100 | Sandblast Anodizing white |
60.4 | one body | flanged end plate is option |
| 020 | 67*53 | 100 | Sandblast Anodizing white |
62 | one body | |
| 021 | 67*30 | 80 | Sandblast Anodizing white & Black |
49 | one body,flanged | |
| 022 | 71*25 | 80 | Sandblast Anodizing white & Black |
42.9 | one body,flanged | |
| 023 | 71*27 | 100 | Sandblast Anodizing white |
68 | Divided body | flanged end plate is option |
| 024 | 74*29 | 100 | Sandblast Anodizing white & Black |
70.7 | one body | flanged end plate is option |
| 025 | 78*24 | 85 | Sandblast Anodizing white & Black |
60.6 | one body,flanged | |
| 026 | 85*26 | 80 | Sandblast Anodizing white & Black |
53 | one body,flanged | |
| 027 | 88*30 | 120 | Sandblast Anodizing white & Black |
85 | Divided body | flanged end plate is option |
| 028 | 88*38 | 120 | Sandblast Anodizing white & Black |
84 | Divided body | flanged end plate is option |
| 029 | 90*40 | 100 | Sandblast Anodizing white & Black |
70.4 | one body,flanged | |
| 030 | 90*90 | 130 | Sandblast Anodizing white & Black |
86.8 | one body | |
| 031 | 90*73 | 130 | Sandblast Anodizing white & Black |
88 | Divided body | |
| 032 | 95*45 | 120 | Sandblast Anodizing white |
82.6 | one body | flanged end plate |
| 033 | 97*84 | 125 | Sandblast Anodizing white & Black |
93 | one body | |
| 034 | 98*48 | 120 | Sandblast Anodizing white |
93.2 | one body | flanged end plate |
| 035 | 105*22 | 80/130 | Sandblast Anodizing white & Black |
101 | one body | |
| 036 | 122*29 | 100/150 | Sandblast Anodizing white |
116.3 | one body | |
| 037 | 130*31 | 120 | Sandblast Anodizing white & Black |
101 | one body,flanged | |
| 038 | 104*28 | 120 | Sandblast Anodizing white |
76.4 | one body,flanged | |
| 039 | 147*36 | 155 | Sandblast Anodizing white & Black |
115 | Divided body,flanged | |
| 040 | 147*61 | 155 | Sandblast Anodizing white & Black |
115.2 | Divided body,flanged | |
| 041 | 190*6 | 155 | Sandblast Anodizing white & Black |
156.3 | Divided body,flanged | |
| 042 | 190*72 | 155 | Sandblast Anodizing white & Black |
155.5 | Divided body,flanged |
