Product Details:
Payment & Shipping Terms:
|
| Type: | Aluminum Enclosure | Color In Stock: | White， Black |
|---|---|---|---|

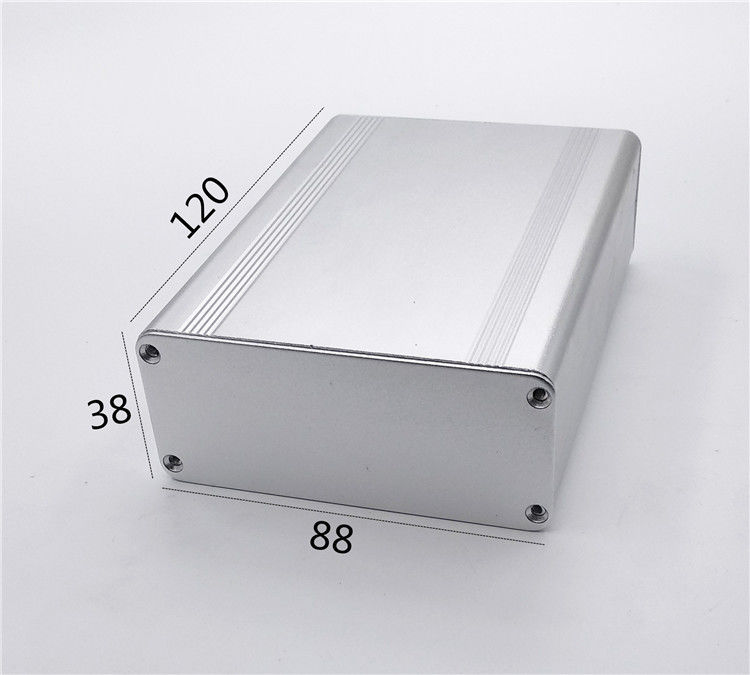

| External Size: | 88*38*120mm In Stock | Length: | Can Be Changed |
| Application: | Electric | Material: | Extrution Alunimum Profile 6063-T5 |
| Highlight: | Anodizing Aluminum Extrusion Enclosure,120mm Aluminum Extrusion Enclosure,Electronic Aluminum Extrusion Enclosure |
||

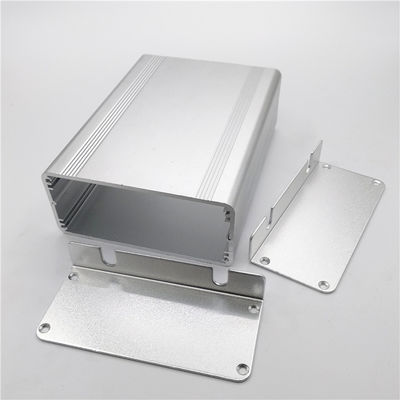

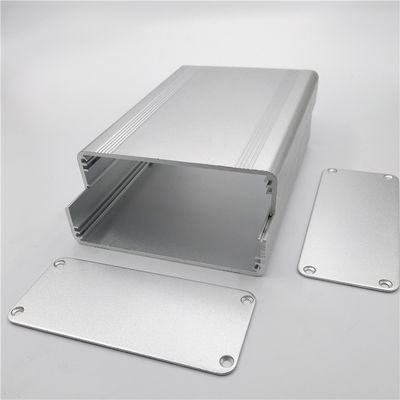

Product Description of this Extruded Aluminum Enclosures
| Model NO. | E8838 |
| Structure | divided body |
| Section Size | 88*38mm |
| PCB size | <85*2mm |
| Surface in stock | sandblasting;Anodizing |
| Components | Top cover, Bottom cover, Front end plate, Rear end plate, Screws M3*8 |
| Material | Extrusion Aluminum Profile 6063-T5 |
| Cusomization | color ,cutout, laser silkscreen,label, drill holes, change length |
Drawing
More sizes
| Model | Size(W*H*L) | Structure | Color & Surface | Remark |
| E-2525 | 25*25*40/50/60/80/90/100 | devided | Anodized Blue/ sliver/black | L60 silver, others black |
| E3232 | 32*32*80/100 | one body | Anodized black/silver | |
| E3526 | 35*26*80 | devided | Anodized black/silver | silver L plate option |
| E-3830 | 38*30*50/60 | one body | Anodized black/gold | L60 anodized black only |
| E4025 | 40*25*80 | one body | anodized sliver | |
| E4025D | 40*25*80/110 | devided | Anodized black/silver | L80 black only |
| E4242 | 42*42*80 | one body | Anodized black/silver | |
| E4314 | 43*14*30 | one body | anodized black | no plate |
| E4423 | 44*23*60/65/80 | one body | anodized black/red | L80 black |
| E4518 | 45*18.5*45/60 | one body | 45 gold, L60 grey | |
| E4619 | 46*19*60 | one body | Anodized black/silver | silver L plate option |
| E4924 | 49*24*80/85 | one body | L80 black, L85 silver | wall mount |
| E-5020 | 50*20*80 | devided | Anodized black/silver | 2 plates |
| E5025 | 50*25*70/80*100 | one body | 70gold,L80L100black | |
| E5035 | 50*35*80 | one body | silver | L plate |
| E-5040 | 50*40*60/80 | one body | 60 black/80 grey | bend plate for L60 |
| E5130 | 51*30*80 | one body | anodized black | wall mount |
| E-5213 | 52*13*110 | one body | anodized silver | |
| E5219 | 52*19.6*110 | one body | anodized sliver | |
| E5238 | 52*38*100 | devided | anodized sliver | 2 plates |
| E5252 | 52*52*80 | one body | anodized black/silver | |
| E5330 | 53x30x100 | one body | anodized sliver | |
| E5325 | 53.5*25*80 | one body | anodized black | |
| E5423 | 54*23*80 | one body | anodized black/silver | |
| E5530 | 55*30*80 | one body | anodized sliver | 2 plates |
| E5628 | 56*28*80 | one body | anodized sliver | |
| E5656 | 56*56*100 | one body | anodized black/silver | |
| E5724 | 57*24*110 | one body | anodized sliver | |
| E5824 | 58*24*50 | one body | Anodized Blue | |
| E5825 | 58*25*85 | one body | anodized sliver | |
| E6021 | 60*21*100 | one body | anodized sliver |
.............
