Product Details:
Payment & Shipping Terms:
|
| External Size: | 120x90x70mm / 4.72"x3.54"x2.75" | Protection Level: | IP65 |
|---|---|---|---|
| Material: | ABS, PC | Type: | Outdoor, Watertight |
| High Light: | IP65 Watertight Hinged Plastic Enclosures,Abrasion Resistant Hinged Plastic Enclosures,PC Watertight Hinged Plastic Enclosures |
||

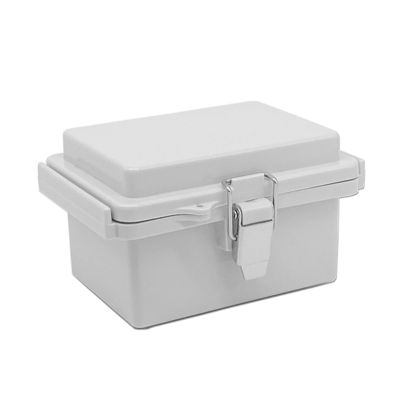

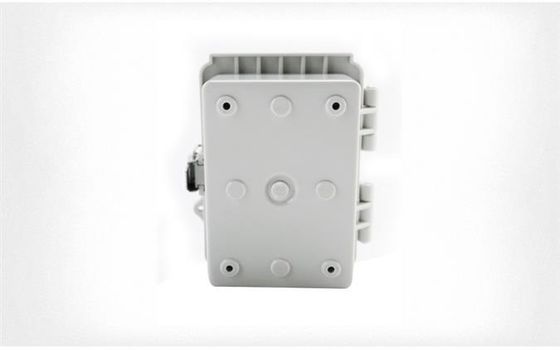

Product description
The safe electric supply with waterproof body is resistant to corrosion and abrasion.
The light gray finish with sturdy construction fits large amount of electrical supplies with ease.
The hinge pins and latches are stainless steel to prevent corrosion over time.
Case and lid both have a small hole intended for a Seal or lock.
This is to prevent tampering with the contents of the enclosure after it is installed. (seal or lock not included)
Holes for conduit connections need to be made to suit your needs.

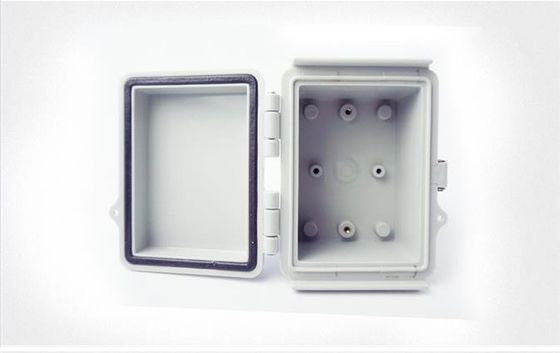

Cover is gasketed for a water-tight seal. No additional screws are needed for mounting meters.
Features
Other sizes
| Model | Size | Remark |
| AB-BG-129070 | 120*90*70 | SS lock and key |
| AB-KG-151070 | 150*100*70 | with lock and key |
| AB-BG-101570 | 150*100*70 | SS lock and key |
| AB- BG-151090 | 150*100*90 | SS lock and key |
| AB-KG-151590 | 150*150*90 | with lock and key |
| AB-BG-151590 | 150*150*90 | SS lock and key |
| AB-BG-171290 | 175*125*90 | SS lock and key |
| AB-KG-201070 | 200*100*70 | with lock and key |
| AB-MG-201510 | 200*150*100 | with lock, No key |
| AB-BG-211175 | 210*110*75 | SS lock and key |
| AB-BG-211610 | 210*160*100 | SS lock and key |
| AB-KG-221711 | 220*170*110 | with lock and key |
| AB-MG-251710 | 250*170*100 | with lock, No key |
| AB-BG-261175 | 260*110*75 | SS lock and key |
| AB-BG-261610 | 260*160*100 | SS lock and key |
| AB-BG-271711 | 275*175*110 | SS lock and key |
| AB-BG-281914 | 280*190*140 | SS lock and key |
| AB-KG-291914 | 290*190*140 | with lock and key |
| AB-BG-302013 | 300*200*130 | SS lock and key |
| AB-MG-302016 | 300*200*160 | with lock, No key |
| AB-KG-302017 | 300*200*170 | with lock and key |
| AB-KG-302018 | 300*200*180 | with lock and key |
| AB-KG-302515 | 300*250*150 | with lock and key |
| AB-KG-303017 | 300*300*170 | with lock and key |
| AB-DG-303018 | 300*300*180 | with lock, No key |
| AB-KG-333313 | 330*330*130 | with lock and key |
| AB-KG-352513 | 350*250*130 | with lock and key |
| AB-BG-352515 | 350*250*150 | SS lock and key |
| AB-BG-382813 | 380*280*130 | SS lock and key |
| AB-KG-392916 | 390*290*160 | with lock and key |
| AB-KG-403017 | 400*300*170 | with lock and key |
| AB-DG-403018 | 400*300*180 | with lock, No key |
| AB-BG-403018 | 400*300*180 | SS lock and key |
| AB-KG-403020 | 400*300*200 | with lock and key |
| AB-BG-453520 | 450*350*200 | SS lock and key |
| AB-KG-463516 | 460*350*165 | with lock and key |
| AB-DG-4504020 | 500*400*200 | with lock, No key |
| AB-BG-504020 | 500*400*200 | SS lock and key |
| AB-AH-604019 | 600*400*195 | with lock, No key |
| AB-DG-604022 | 600*400*220 | with lock, No key |
| AB-AH-605019 | 600*500*195 | with lock, No key |
| AB-BG-635325 | 630*530*250 | SS lock and key |
