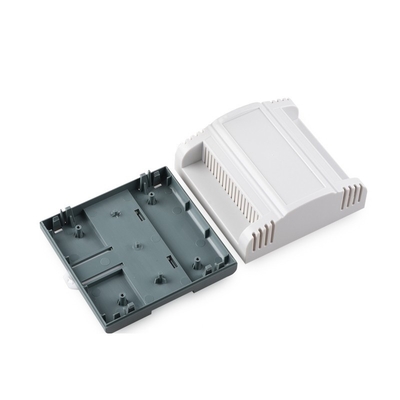

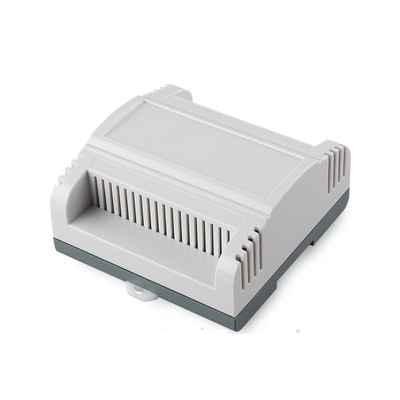

108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box

108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box
108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box 108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box 108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box 108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box

Large Image :  108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: ROHS
Model Number: BRT80010
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD11.25
Packaging Details: cartons
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs / day
Contact Now
Detailed Product Description
External Size: 174*139*57mm Operating Temperature: -20°C~80°C
Application: Industrial Control Shell Material: Fire Retardant ABS
FIRE RESISTANCE LEVEL: UL 94 V0 Color: Light Grey
High Light:

56mm Din Rail Enclosure

,

UL 94 V0 Din Rail Enclosure

,

Fireproof Plastic Housing Distribution Box Enclosure

108*112*56mm High Quality Din Rail Enclosure For Electronic Diy Fireproof Material Plastic Housing Distribution Box

DIN Rail Enclosures

DIN rail enclosures are designed to internally mount complex circuit controls on custom-cut Polycase DIN rail kits.
The kits can be mounted horizontally or vertically within the base of the 35mm DIN Rail enclosure.
Meeting several NEMA and IP ratings, our electrical enclosures with DIN rail are suitable for use in harsh environments.
Made from durable polycarbonate or ABS plastic, DIN rail enclosures are available in a range of sizes to accommodate electrical or electronic applications.



Features of the din rail enclosure



  • BRT80010 is Durable UL94V-0 rated ABS blend plastic housing
  • Suggested service temperature -20C to +80
  • Three levels of PC board mounting locations – PC boards not supplied
  • Bottom level accepts PC board with modular type terminals on 0.2″ centers
  • Removable terminal guards have snap-off tabs to match number of terminals used
  • Snap-fit design allows tool-less assembly of all parts including PC boards
  • Snap-fit front cover is easily removable for machining or silk-screening
  • Optional clear and infra red polycarbonate covers available
  • Fits standard 35mm DIN rail
  • Finish: Light Gray









Product name
Din rail plastic enclosure
Products model
BRT80010
Product specification

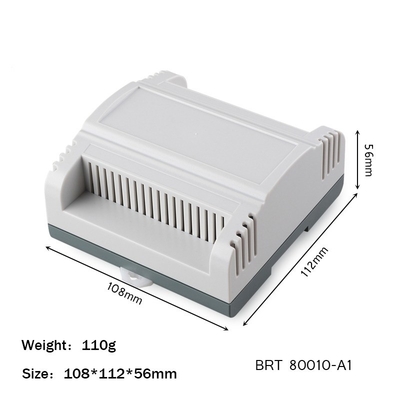

112*108*56mm [4.41*4.25*2.20inch ]
Material
abs raw material
Net weight
110g



Flame retardant grade



  UL 94 V0

 Application
Electronic & Instrument Enclosures
Costom service
color, cut holes, print ,open new mold. etc

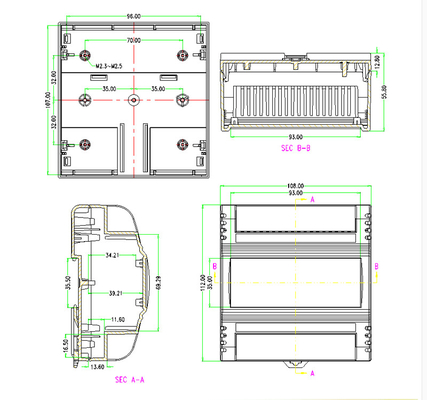

Drawing



108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box 0
