Product Details:
Payment & Shipping Terms:
|
Specification: | 180x80x70mm | Weight: | 240g |
---|---|---|---|
Cover Color: | Gray Or Transparent | Material: | ABS |
Protection Level: | IP66 | Usage: | Indoor And Outdoor |
High Light: | 180x80x70mm Plastic Housing For Electronics,IP66 Plastic Housing For Electronics,180x80x70mm abs plastic housing |

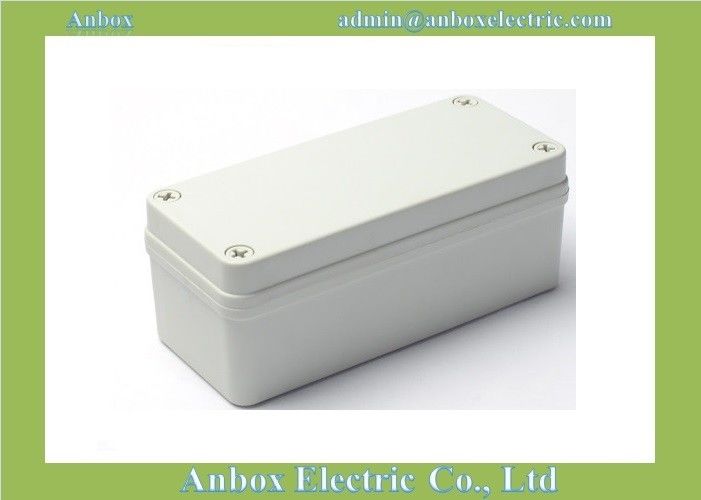

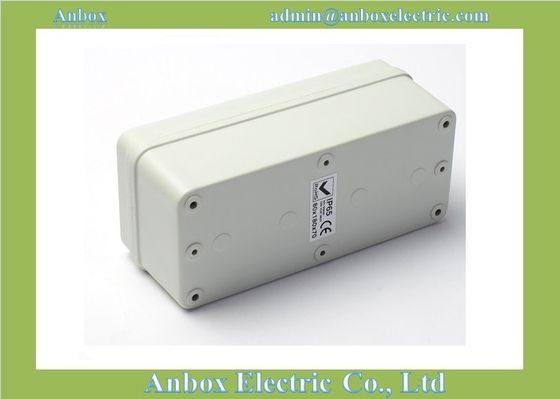

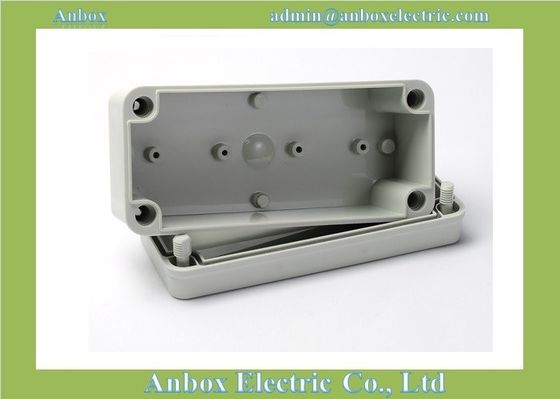

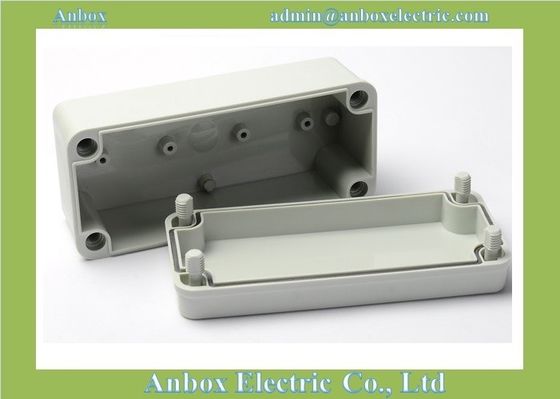

180x80x70mm IP66 ABS plastic housings for electronics enclosure boxes
Product Introduction
Waterproof plastic enclosure adopts quality ABS engineering plastic or polycarbonate (PC) material, suitable for
electrical and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories,
terminal water treatment facilities, all kinds of natural disaster prevention equipment in harsh industrial environment.
Widely used as outdoor electric junction box, enclosure for electronic PCB.
Product adopt plastic bolt design, prevent loss effectively, 1/4 weight of metal box, impact resistance, corrosion
resistance, long life, good insulation performance, easy processing.
Product Description of 180x80x70mm IP66 ABS plastic housings for electronics enclosure boxes
Model Number | 180A-1 |
External size | 180x80x70mm |
Material | ABS, 100% raw material |
Protection Level | IP66 |
colour | Grey, can be customzied |
component | enclosure, gasket, screws |
MOQ | 10pcs |
OEM/ODM | cut holes, print logo, develop new enclosure as per your design |
Lead time | 3-15days for different order |
Delivery terms | FEDEX/TNT/UPS/DHL/China air post/ Sea,etc. |
Payment terms | T/T,Paypal,Western Union |
Reference Drawing
Other sizes
P.N | Model No. | Dimension |
1 | 63A-1 | 63*58*35 |
2 | 65A-1 | 65*50*55 |
3 | 83A-1 | 83*58*33 |
4 | 83B-1 | 83*81*56 |
5 | 95A-1 | 95*65*55 |
6 | 96A-1 | 96*96*60 |
7 | 100A-1 | 100*68*50 |
8 | 100B-1 | 100*100*50 |
9 | 100C-1 | 100*100*75 |
10 | 100D-1 | 100*100*90 |
11 | 110A-1 | 110*80*45 |
12 | 110B-1 | 110*80*70 |
13 | 110C-1 | 110*80*85 |
14 | 115A-1 | 115*90*55 |
15 | 120A-1 | 120*120*90 |
16 | 125A-1 | 125*85*60 |
17 | 125B-1 | 125*125*75 |
18 | 125C-1 | 125*125*100 |
19 | 130A-1 | 130*80*70 |
20 | 130B-1 | 130*80*85 |
21 | 135A-1 | 135*80*90 |
22 | 140A-1 | 140*105*45 |
23 | 140B-1 | 140*105*63 |
24 | 145A-1 | 145*102*31 |
25 | 145B-1 | 145*145*60 |
26 | 145C-1 | 145*145*90 |
27 | 150A-1 | 150*150*120 |
28 | 155A-1 | 155*115*75 |
29 | 158A-1 | 158*90*40 |
30 | 158B-1 | 158*90*60 |
31 | 158C-1 | 158*90*75 |
32 | 160A-1 | 160*45*55 |
33 | 160B-1 | 160*80*55 |
34 | 160D-1 | 160*110*90 |
35 | 160F-1 | 160*160*60 |
36 | 160E-1 | 160*160*90 |
37 | 160C-1 | 160*160*120 |
38 | 170C-1 | 170*120*21 |
39 | 170A-1 | 170*120*100 |
40 | 170B-1 | 170*140*95 |
41 | 175A-1 | 175*125*75 |
42 | 175B-1 | 175*125*100 |
43 | 175C-1 | 175*175*100 |
44 | 180A-1 | 180*80*70 |
45 | 180B-1 | 180*80*85 |
46 | 180C-1 | 180*130*60 |
47 | 180D-1 | 180*130*90 |
48 | 190A-1 | 190*140*70 |
49 | 192A-1 | 192*188*100 |
50 | 194A-1 | 194*80*56 |
51 | 200A-1 | 200*120*56 |
52 | 200B-1 | 200*120*75 |
53 | 200C-1 | 200*120*90 |
54 | 200D-1 | 200*120*113 |
55 | 200E-1 | 200*150*100 |
56 | 200F-1 | 200*150*130 |
57 | 200H-1 | 200*200*95 |
58 | 200I-1 | 200*200*130 |
59 | 210A-1 | 210*120*110 |
60 | 210B-1 | 210*155*65 |
61 | 210C-1 | 210*155*94 |
62 | 210D-1 | 210*155*112 |
63 | 230A-1 | 230*150*60 |
64 | 230B-1 | 230*150*85 |
65 | 235A-1 | 235*165*45 |
66 | 240A-1 | 240*160*90 |
67 | 240B-1 | 240*160*120 |
68 | 240D-1 | 240*175*68 |
69 | 240E-1 | 240*175*117 |
70 | 240C-1 | 240*190*90 |
71 | 248A-1 | 248*77*85 |
72 | 248B-1 | 248*148*100 |
73 | 250A-1 | 250*80*70 |
74 | 250B-1 | 250*80*85 |
75 | 250C-1 | 250*150*100 |
76 | 250D-1 | 250*150*130 |
77 | 250E-1 | 250*170*120 |
78 | 250F-1 | 250*190*99 |
79 | 263A-1 | 263*182*60 |
80 | 263B-1 | 263*182*95 |
81 | 263C-1 | 263*182*125 |
82 | 280A-1 | 280*190*130 |
83 | 280B-1 | 280*190*180 |
84 | 280E-1 | 280*195*86 |
85 | 280C-1 | 280*195*135 |
86 | 280D-1 | 280*280*130 |
87 | 280E-1 | 280*280*180 |
88 | 290A-1 | 290*200*130 |
89 | 290B-1 | 290*210*60 |
90 | 290C-1 | 290*210*100 |
91 | 295A-1 | 295*155*56 |
92 | 295B-1 | 295*155*96 |
93 | 295C-1 | 295*155*112 |
94 | 300B-1 | 300*200*125 |
95 | 300A-1 | 300*280*140 |
96 | 320B-1 | 320*240*60 |
97 | 320A-1 | 320*240*110 |
98 | 320B-1 | 320*240*140 |
99 | 320C-1 | 320*240*155 |
100 | 340A-1 | 340*270*60 |
101 | 340B-1 | 340*280*130 |
102 | 340C-1 | 340*280*180 |
103 | 380A-1 | 380*190*130 |
104 | 380B-1 | 380*190*180 |
105 | 380C-1 | 380*260*105 |
106 | 380D-1 | 380*260*120 |
107 | 380E-1 | 380*260*140 |
108 | 380F-1 | 380*280*130 |
109 | 380G-1 | 380*280*180 |
