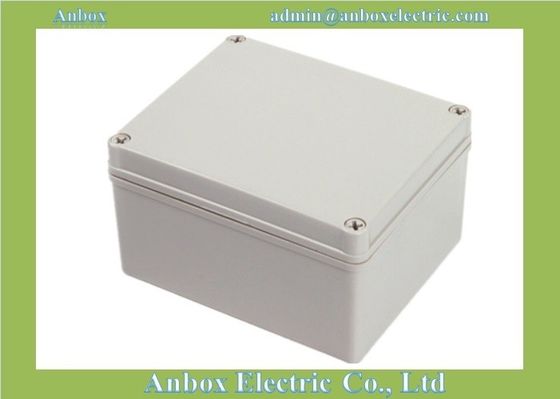

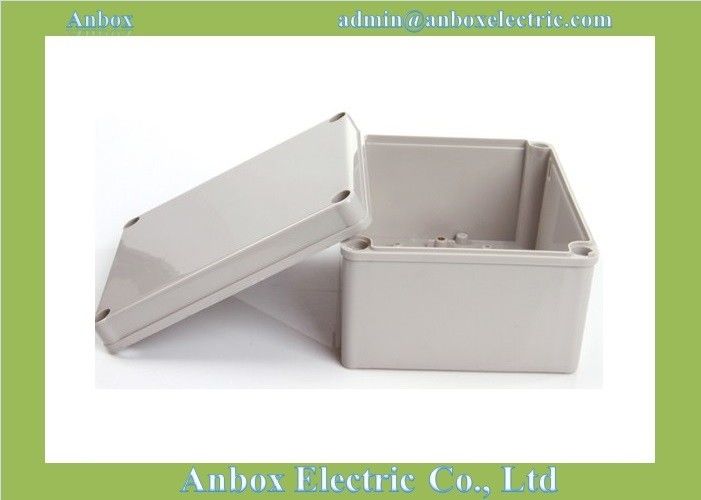

UL94 360g 170x140x95mm Weatherproof Electrical Junction Box

UL94 360g 170x140x95mm Weatherproof Electrical Junction Box
UL94 360g 170x140x95mm Weatherproof Electrical Junction Box UL94 360g 170x140x95mm Weatherproof Electrical Junction Box UL94 360g 170x140x95mm Weatherproof Electrical Junction Box

Large Image :  UL94 360g 170x140x95mm Weatherproof Electrical Junction Box Get Best Price

Product Details:
Place of Origin: China
Brand Name: Anbox
Certification: CE
Model Number: 170B-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pc
Price: $3~$10
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000pcs/day
Detailed Product Description
Material: ABS Waterproof Rating: IP67
Color: Gray Weight: 342g
Option: Gray Lid Or Clear Lid Screws: Plastic Screws
High Light:

170x140x95mm Weatherproof Electrical Junction Box

,

360g weatherproof electrical junction box

,

UL94 waterproof electrical boxes outdoor

170x140x95mm Waterproof Plastic Enclosure junction boxes electrical enclosure boxes



Anbox electric Co., Ltd, providing you various size of enclosure, electrical junction box, diy project boxes, waterproof case, plastic enclosures, weatherproof enclosures, etc.



Features:

  1. Designed to IP67 of IEC60529.
  2. Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  3. Captive plastic screws thread into brass inserts for cover on/cover off applications

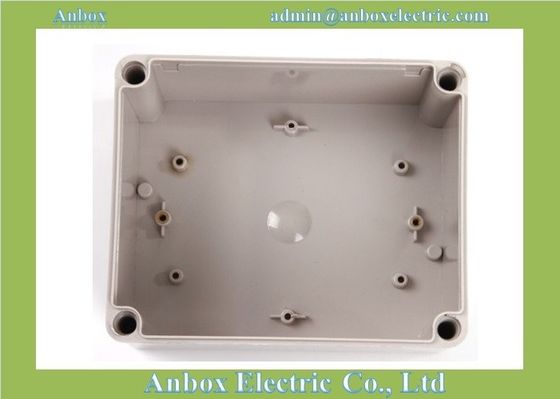

  4. Plastic PCB mounting bosses are standard
  5. Durable, high impact ABS, PC raw material
  6. The Min.average wall thickness is 3mm
  7. Gray cover and transparent cover are available
  8. Assembly includes base, gasket, cover, and 4 plastic enclosure screws
  9. Custom requirements are available.
  10. Accept OEM order as per your design.

Specifications:



Model No. 170B-1
External Size 170*140*95mm
Net weight 342g
Protection Level IP67
Material ABS, PC, Flame retardant, UV stabilized
Flame rating UL94-HB, UL94-V2, UL94-V0, UL94-5VA
Temperature Range -20°C~80°C(ABS), -40°C~100°C (PC)
Impact resistant IK07(ABS), IK08(PC)





Drawing reference

( the measurement might have tolerence)



UL94 360g 170x140x95mm Weatherproof Electrical Junction Box 0



Other Sizes





P.N Model No. Dimension
1 63A-1 63*58*35
2 65A-1 65*50*55
3 83A-1 83*58*33
4 83B-1 83*81*56
5 95A-1 95*65*55
6 96A-1 96*96*60
7 100A-1 100*68*50
8 100B-1 100*100*50
9 100C-1 100*100*75
10 100D-1 100*100*90
11 110A-1 110*80*45
12 110B-1 110*80*70
13 110C-1 110*80*85
14 115A-1 115*90*55
15 120A-1 120*120*90
16 125A-1 125*85*60
17 125B-1 125*125*75
18 125C-1 125*125*100
19 130A-1 130*80*70
20 130B-1 130*80*85
21 135A-1 135*80*90
22 140A-1 140*105*45
23 140B-1 140*105*63
24 145A-1 145*102*31
25 145B-1 145*145*60
26 145C-1 145*145*90
27 150A-1 150*150*120
28 155A-1 155*115*75
29 158A-1 158*90*40
30 158B-1 158*90*60
31 158C-1 158*90*75
32 160A-1 160*45*55
33 160B-1 160*80*55
34 160D-1 160*110*90
35 160F-1 160*160*60
36 160E-1 160*160*90
37 160C-1 160*160*120
38 170C-1 170*120*21
39 170A-1 170*120*100
40 170B-1 170*140*95
41 175A-1 175*125*75
42 175B-1 175*125*100
43 175C-1 175*175*100
44 180A-1 180*80*70
45 180B-1 180*80*85
46 180C-1 180*130*60
47 180D-1 180*130*90
48 190A-1 190*140*70
49 192A-1 192*188*100
50 194A-1 194*80*56
51 200A-1 200*120*56
52 200B-1 200*120*75
53 200C-1 200*120*90
54 200D-1 200*120*113
55 200E-1 200*150*100
56 200F-1 200*150*130
57 200H-1 200*200*95
58 200I-1 200*200*130
59 210A-1 210*120*110
60 210B-1 210*155*65
61 210C-1 210*155*94
62 210D-1 210*155*112
63 230A-1 230*150*60
64 230B-1 230*150*85
65 235A-1 235*165*45
66 240A-1 240*160*90
67 240B-1 240*160*120
68 240D-1 240*175*68
69 240E-1 240*175*117
70 240C-1 240*190*90
71 248A-1 248*77*85
72 248B-1 248*148*100
73 250A-1 250*80*70
74 250B-1 250*80*85
75 250C-1 250*150*100
76 250D-1 250*150*130
77 250E-1 250*170*120
78 250F-1 250*190*99
79 263A-1 263*182*60
80 263B-1 263*182*95
81 263C-1 263*182*125
82 280A-1 280*190*130
83 280B-1 280*190*180
84 280E-1 280*195*86
85 280C-1 280*195*135
86 280D-1 280*280*130
87 280E-1 280*280*180
88 290A-1 290*200*130
89 290B-1 290*210*60
90 290C-1 290*210*100
91 295A-1 295*155*56
92 295B-1 295*155*96
93 295C-1 295*155*112
94 300B-1 300*200*125
95 300A-1 300*280*140
96 320B-1 320*240*60
97 320A-1 320*240*110
98 320B-1 320*240*140
99 320C-1 320*240*155
100 340A-1 340*270*60
101 340B-1 340*280*130
102 340C-1 340*280*180
103 380A-1 380*190*130
104 380B-1 380*190*180
105 380C-1 380*260*105
106 380D-1 380*260*120
107 380E-1 380*260*140
108 380F-1 380*280*130
109 380G-1 380*280*180
