Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Grey |
|---|---|---|---|
| Hole Quantity: | 8 | Hole Size: | ø25mm |
| IP Rating: | IP65 | ||
| High Light: | IP65 Waterproof Junction Box,Waterproof Junction Box 150X150X70mm,IP65 Stepped Gland Enclosure |
||
Product Despription
Body material: ABS
Stopper material: PVC
Material characteristics:
Impact heat low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Application:
Suitable for indoor and outdoor eledria communicartion, fire lighting apparatus, iron and steel smelling, petrochemical industry, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation:

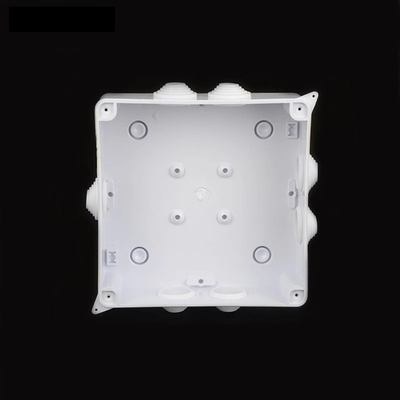

1. lnside: There are the installation holes in the base for drcuit board ordin rail.

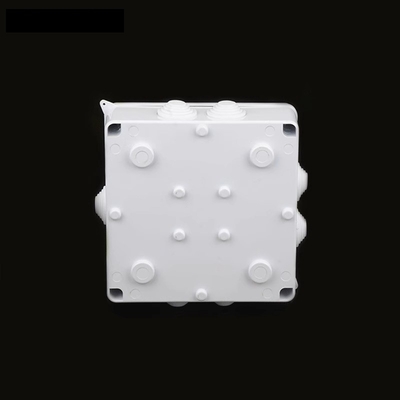

2. Outside: The products can be directly fixed on the wall or other flat board with screws or nails via the screw holes In the base.
Outlet hole:
Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.
Product Drawing
More Models
| Model Code | LxWxH | Hole Qty | Hole Size | Protection | PCS/CTN |
| (mm) | (mm) | ||||
| RA 50x50 | 50x50mm | 4 Entry | 25mm | IP55 | 300 |
| RA 80x50 | 80x50mm | 4 Entry | 240 | ||
| RA 85x85x50 | 85x85x50mm | 7 Entry | 200 | ||
| RA 100x100x70 | 100x100x70mm | 7 Entry | IP65 | 100 | |
| RA 150x110x70 | 150x110x70mm | 10 Entry | 60 | ||
| RA 150x150x70 | 150x150x70mm | 8 Entry | 60 | ||
| RA 200x100x70 | 200x100x70mm | 8 Entry | 60 | ||
| RA 200x155x80 | 200x155x80mm | 10 Entry | 36mm | 40 | |
| RA 200x200x80 | 200x200x80mm | 12 Entry | 40 | ||
| RA 255x200x80 | 255x200x80mm | 12 Entry | 40 | ||
| RA 255x200x120 | 255x200x120mm | 12 Entry | 30 | ||
| RA 300x250x120 | 300x250x120mm | 12 Entry | 20 | ||
| RA 400x350x120 | 400x350x120mm | 16 Entry | 10 |
