Product Details:
Payment & Shipping Terms:
|
| External Size: | 200*120*67mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Application: | Electric | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
| Payment: | Western Union, T/T，paypal | ||
| High Light: | 200*120*67mm Wall Mounting Enclosure,IP65 Wall Mounting Enclosure,3mm thinkness flanged enclosure |
||

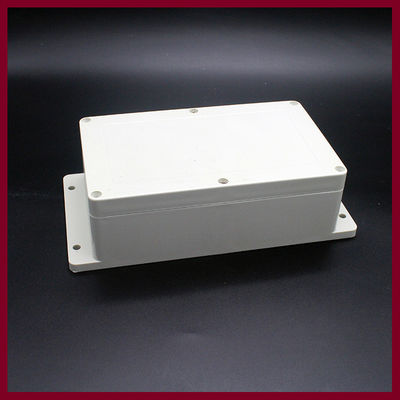

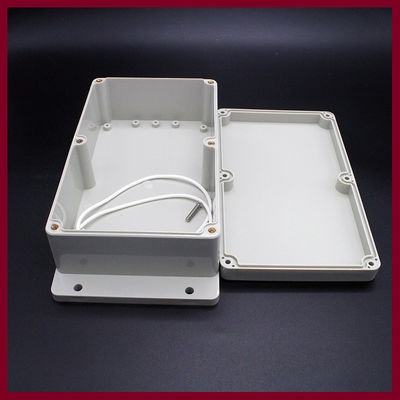

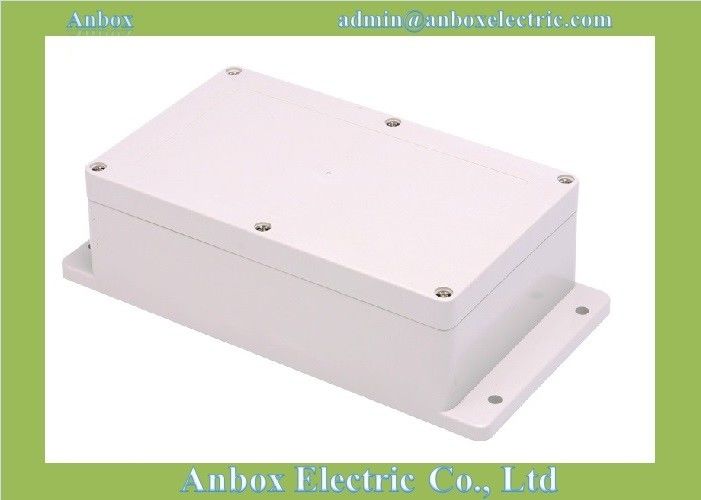

200*120*67mm IP65 Wall Mounting Electrical Enclosure with flange
1, Model:200A-13
2, Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:200*120*67mm
6, Assembly screws included.
7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.
Reference Drawing
Other sizes
| P.N | Model No. | Size with wall mounting |
| 1 | 63A-13 | 63*58*35 |
| 2 | 76A-13 | 76*70*38 |
| 3 | 83A-13 | 83*58*33 |
| 4 | 100A-13 | 100*68*40 |
| 5 | 100B-13 | 100*68*50 |
| 6 | 115A-13 | 115*85*35 |
| 7 | 115B-13 | 115*90*55 |
| 8 | 115C-13 | 115*90*68 |
| 9 | 120A-13 | 120*81*65 |
| 10 | 125A-13 | 125*100*52 |
| 11 | 145A-13 | 145*120*60 |
| 12 | 158A-13 | 158*90*46 |
| 13 | 158B-13 | 158*90*64 |
| 14 | 160A-13 | 160*90*80 |
| 15 | 160B-13 | 160*100*56 |
| 16 | 160C-13 | 160*110*96 |
| 17 | 160D-13 | 160*160*90 |
| 18 | 180A-13 | 180*150*70 |
| 19 | 192A-13 | 192*100*45 |
| 20 | 192B-13 | 192*100*62 |
| 21 | 192C-13 | 192*188*70 |
| 22 | 200A-13 | 200*120*67 |
| 23 | 200B-13 | 200*120*75 |
| 24 | 200C-13 | 200*120*113 |
| 25 | 215A-13 | 215*185*85 |
| 26 | 230A-13 | 230*150*87 |
| 27 | 255A-13 | 255*230*100 |
| 28 | 300A-13 | 300*270*110 |
| 29 | 320A-13 | 320*240*110 |
| 30 | 330A-13 | 330*300*90 |
FAQ
1. Material and color can be customized.
2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.
3. For modification, there will be surcharge.
4. Drawings from website is just for reference .
5. Making toolings will charge tooling cost.
6. For such waterproof case, we can produce 2 types, one with non-transparent case and another one with transparent lid case.
