Product Details:
Payment & Shipping Terms:
|
| External Size: | 192*188*70mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Application: | Electric | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
| Payment: | Western Union, T/T，paypal | ||
| High Light: | 192*188*70mm Wall Mount Plastic Enclosure,IP65 Wall Mount Plastic Enclosure,192C wall mount electrical enclosure |
||

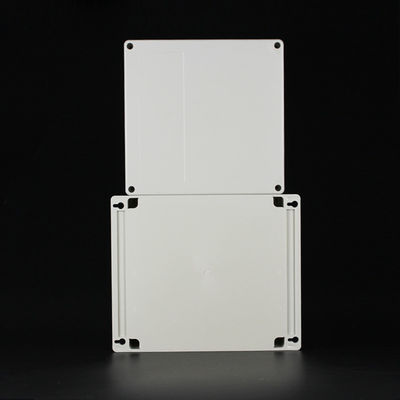

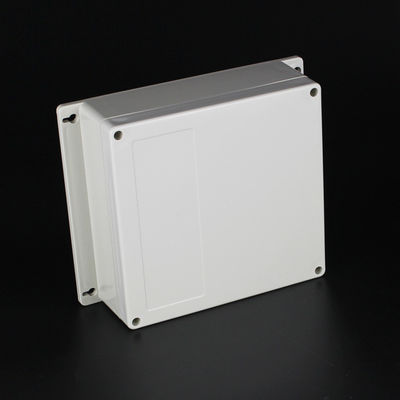

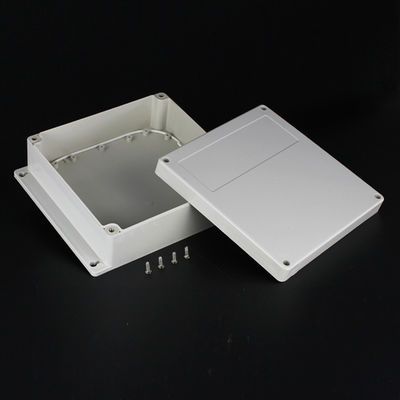

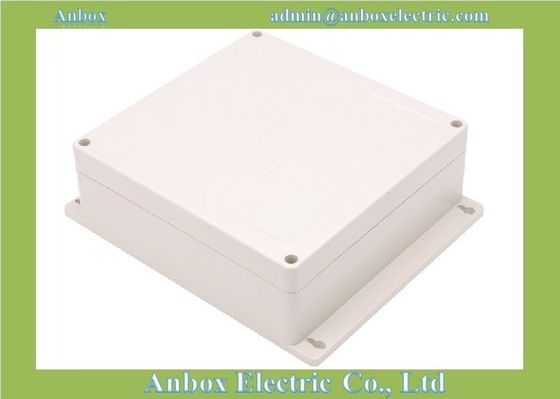

192*188*70mm IP65 waterproof enclosure with flange wall mounting
1. Material :ABS,PC,or ABS+PC with flame retardant.
2. IP65 rating
3. Operating Temperature:-40℃ to 80℃

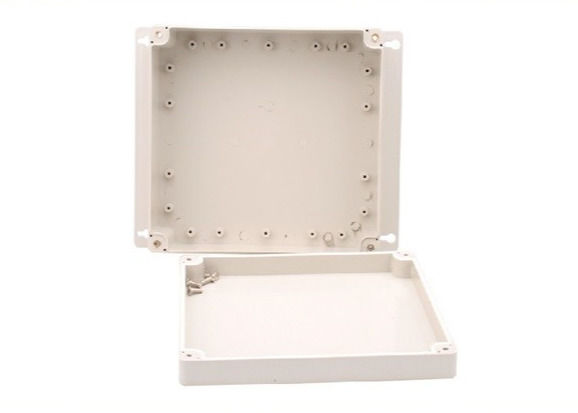

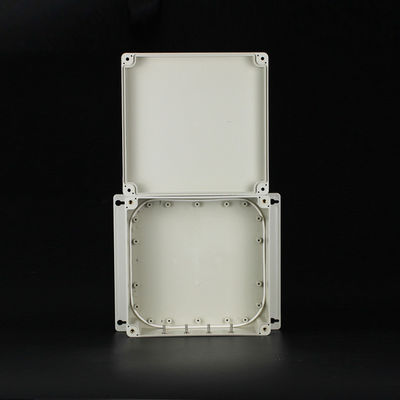

4. Bosses on internal base allow fixing PCB horizontally or connection of terminals ,etc into threaded brass
5. Higher intensity, and more durable.
6. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
7. Color and material can be changed as your requirement
8. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc ,
9. Your design is welcome
Reference Drawing
Other sizes
| P.N | Model No. | Size with wall mounting |
| 1 | 63A-13 | 63*58*35 |
| 2 | 76A-13 | 76*70*38 |
| 3 | 83A-13 | 83*58*33 |
| 4 | 100A-13 | 100*68*40 |
| 5 | 100B-13 | 100*68*50 |
| 6 | 115A-13 | 115*85*35 |
| 7 | 115B-13 | 115*90*55 |
| 8 | 115C-13 | 115*90*68 |
| 9 | 120A-13 | 120*81*65 |
| 10 | 125A-13 | 125*100*52 |
| 11 | 145A-13 | 145*120*60 |
| 12 | 158A-13 | 158*90*46 |
| 13 | 158B-13 | 158*90*64 |
| 14 | 160A-13 | 160*90*80 |
| 15 | 160B-13 | 160*100*56 |
| 16 | 160C-13 | 160*110*96 |
| 17 | 160D-13 | 160*160*90 |
| 18 | 180A-13 | 180*150*70 |
| 19 | 192A-13 | 192*100*45 |
| 20 | 192B-13 | 192*100*62 |
| 21 | 192C-13 | 192*188*70 |
| 22 | 200A-13 | 200*120*67 |
| 23 | 200B-13 | 200*120*75 |
| 24 | 200C-13 | 200*120*113 |
| 25 | 215A-13 | 215*185*85 |
| 26 | 230A-13 | 230*150*87 |
| 27 | 255A-13 | 255*230*100 |
| 28 | 300A-13 | 300*270*110 |
| 29 | 320A-13 | 320*240*110 |
| 30 | 330A-13 | 330*300*90 |
