Product Details:
Payment & Shipping Terms:
|
External Size: | 160*160*90mm | Protection Level: | IP65 |
---|---|---|---|
Type: | Junction Box | Material: | ABS |
Color: | Grey | Wall Thinkness: | About 3mm |
OEM: | Available | Lead Time: | 7 Days |
Application: | Electric | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
Payment: | Western Union, T/T,paypal | ||
High Light: | 160*160*90mm Plastic Electrical Junction Box,ABS Plastic Electrical Junction Box,80℃ ABS plastic junction box |

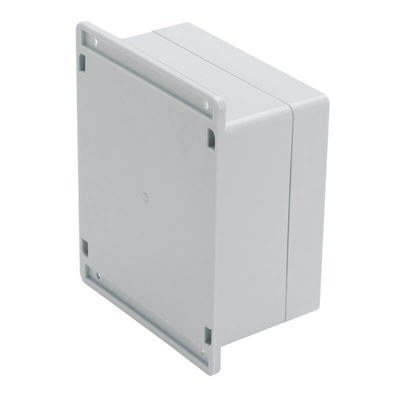

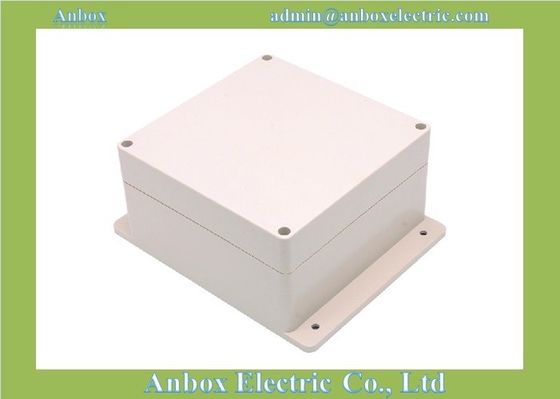

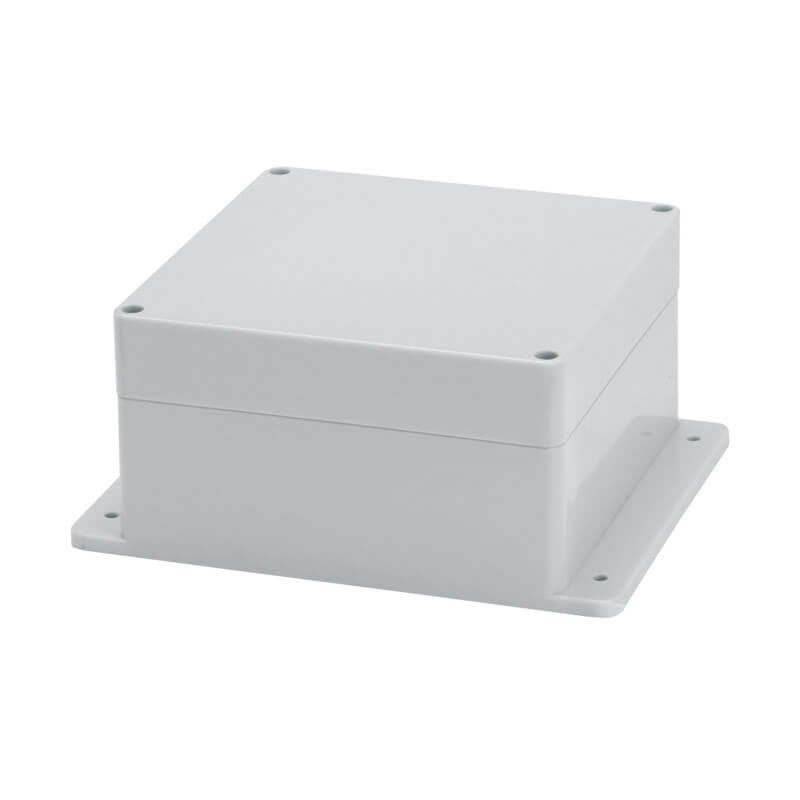

160*160*90mm IP65 ABS plastic junction box with flange wall-mounted box factory
1. Material :ABS,PC,or ABS+PC with flame retardant.
2. IP65 rating
3. Operating Temperature:-40℃ to 80℃

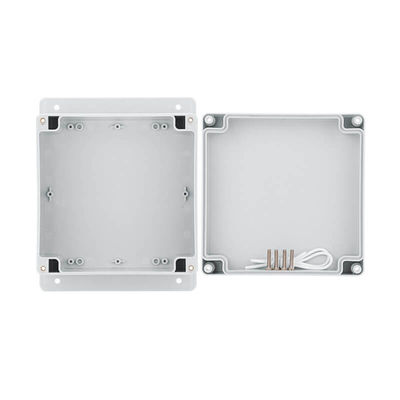

4. Bosses on internal base allow fixing PCB horizontally or connection of terminals ,etc into threaded brass
5. Higher intensity, and more durable.
6. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
7. Color and material can be changed as your requirement
8. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc ,
9. Your design is welcome

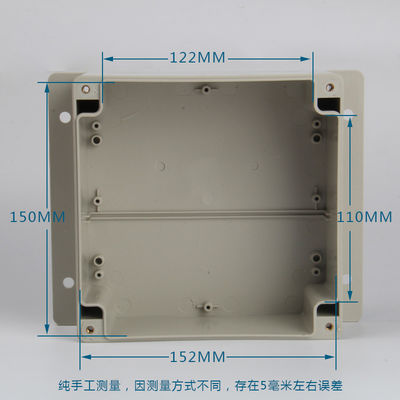

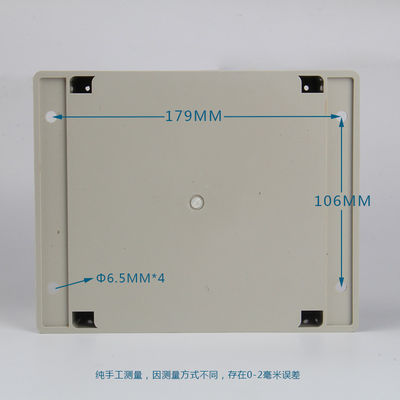

Reference Drawing
Other sizes
P.N | Model No. | Size with wall mounting |
1 | 63A-13 | 63*58*35 |
2 | 76A-13 | 76*70*38 |
3 | 83A-13 | 83*58*33 |
4 | 100A-13 | 100*68*40 |
5 | 100B-13 | 100*68*50 |
6 | 115A-13 | 115*85*35 |
7 | 115B-13 | 115*90*55 |
8 | 115C-13 | 115*90*68 |
9 | 120A-13 | 120*81*65 |
10 | 125A-13 | 125*100*52 |
11 | 145A-13 | 145*120*60 |
12 | 158A-13 | 158*90*46 |
13 | 158B-13 | 158*90*64 |
14 | 160A-13 | 160*90*80 |
15 | 160B-13 | 160*100*56 |
16 | 160C-13 | 160*110*96 |
17 | 160D-13 | 160*160*90 |
18 | 180A-13 | 180*150*70 |
19 | 192A-13 | 192*100*45 |
20 | 192B-13 | 192*100*62 |
21 | 192C-13 | 192*188*70 |
22 | 200A-13 | 200*120*67 |
23 | 200B-13 | 200*120*75 |
24 | 200C-13 | 200*120*113 |
25 | 215A-13 | 215*185*85 |
26 | 230A-13 | 230*150*87 |
27 | 255A-13 | 255*230*100 |
28 | 300A-13 | 300*270*110 |
29 | 320A-13 | 320*240*110 |
30 | 330A-13 | 330*300*90 |
