Product Details:
Payment & Shipping Terms:
|
| External Size: | 160*90*80mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Application: | Electric | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
| Payment: | Western Union, T/T，paypal | ||
| High Light: | 160*90*80mm Waterproof Electrical Junction Boxes,IP65 waterproof electrical junction boxes,160*90*80mm plastic weatherproof electrical box |
||

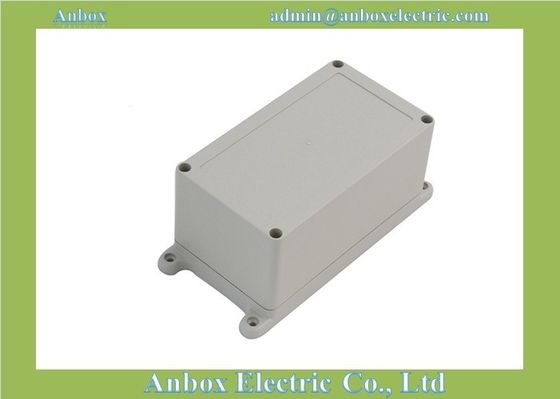

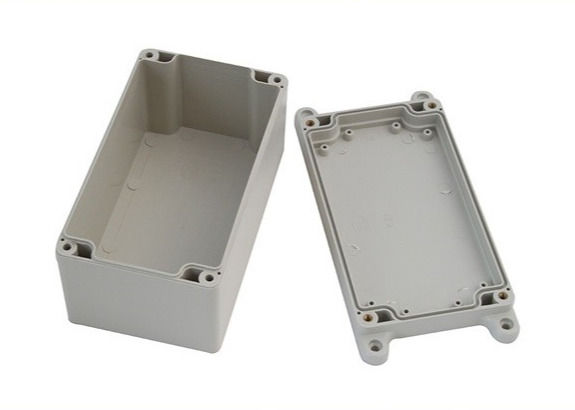

160*90*80mm IP65 plastic pcb waterproof enclosure wall mount
Application
Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation

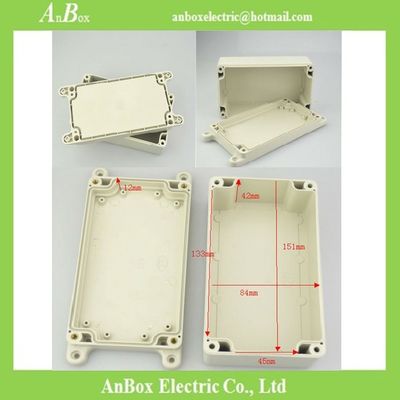

Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.
1, Model:160A-13
2, Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:160*90*80mm
6, Assembly screws included.
7, Custom service is acceptable
Other sizes
| P.N | Model No. | Size with wall mounting |
| 1 | 63A-13 | 63*58*35 |
| 2 | 76A-13 | 76*70*38 |
| 3 | 83A-13 | 83*58*33 |
| 4 | 100A-13 | 100*68*40 |
| 5 | 100B-13 | 100*68*50 |
| 6 | 115A-13 | 115*85*35 |
| 7 | 115B-13 | 115*90*55 |
| 8 | 115C-13 | 115*90*68 |
| 9 | 120A-13 | 120*81*65 |
| 10 | 125A-13 | 125*100*52 |
| 11 | 145A-13 | 145*120*60 |
| 12 | 158A-13 | 158*90*46 |
| 13 | 158B-13 | 158*90*64 |
| 14 | 160A-13 | 160*90*80 |
| 15 | 160B-13 | 160*100*56 |
| 16 | 160C-13 | 160*110*96 |
| 17 | 160D-13 | 160*160*90 |
| 18 | 180A-13 | 180*150*70 |
| 19 | 192A-13 | 192*100*45 |
| 20 | 192B-13 | 192*100*62 |
| 21 | 192C-13 | 192*188*70 |
| 22 | 200A-13 | 200*120*67 |
| 23 | 200B-13 | 200*120*75 |
| 24 | 200C-13 | 200*120*113 |
| 25 | 215A-13 | 215*185*85 |
| 26 | 230A-13 | 230*150*87 |
| 27 | 255A-13 | 255*230*100 |
| 28 | 300A-13 | 300*270*110 |
| 29 | 320A-13 | 320*240*110 |
| 30 | 330A-13 | 330*300*90 |
Custom Services
1, Change Color, Materail to PC or flame retardant
2, Drill holes
3, Silk Screen
4, Install terminal block
5, Connecting cable gland
6, Install metal/plastic wall mount
7, Developing new moulds
