Product Details:
Payment & Shipping Terms:
|
| External Size: | 145*120*60mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Material: | ABS |
| Color: | Grey | Wall Thinkness: | About 3mm |
| OEM: | Available | Lead Time: | 7 Days |
| Application: | Electric | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
| Payment: | Western Union, T/T，paypal | ||
| Highlight: | 60mm Plastic Electrical Junction Box,145*120mm Plastic Electrical Junction Box,145A Plastic Wall Mount Box |
||

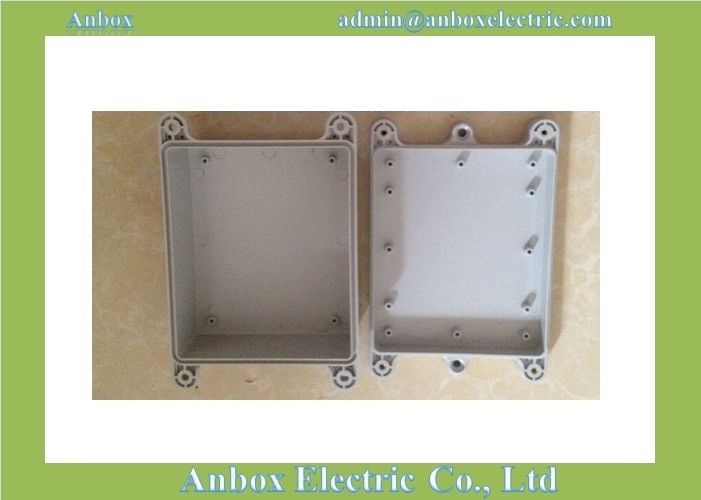

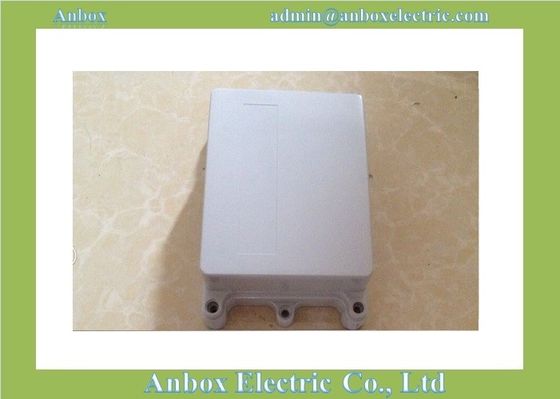

145*120*60mm High Quality Plastic Box Wall Mount Products manufacturer
1, Model:145A-13
2, Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:145*120*60mm
6, Assembly screws included.
7, Custom service is acceptable.
Box material : ABS
Material characteristics : Impact , heat , low temperature and chemical resistance , excellent electrical performance and surface gloss , etc .
Certificates : CE
Application : Suitable for indoor and outdoor etectric , communication , fire fighting apparatus , iron and steel smelting , petrochemical industry , electron , power system , railway , building , mine , air and sea port , hotel , ship , works , waste water treatment equipment , environmental eauipment and so on .
Reference Drawing
Other sizes
| P.N | Model No. | Size with wall mounting |
| 1 | 63A-13 | 63*58*35 |
| 2 | 76A-13 | 76*70*38 |
| 3 | 83A-13 | 83*58*33 |
| 4 | 100A-13 | 100*68*40 |
| 5 | 100B-13 | 100*68*50 |
| 6 | 115A-13 | 115*85*35 |
| 7 | 115B-13 | 115*90*55 |
| 8 | 115C-13 | 115*90*68 |
| 9 | 120A-13 | 120*81*65 |
| 10 | 125A-13 | 125*100*52 |
| 11 | 145A-13 | 145*120*60 |
| 12 | 158A-13 | 158*90*46 |
| 13 | 158B-13 | 158*90*64 |
| 14 | 160A-13 | 160*90*80 |
| 15 | 160B-13 | 160*100*56 |
| 16 | 160C-13 | 160*110*96 |
| 17 | 160D-13 | 160*160*90 |
| 18 | 180A-13 | 180*150*70 |
| 19 | 192A-13 | 192*100*45 |
| 20 | 192B-13 | 192*100*62 |
| 21 | 192C-13 | 192*188*70 |
| 22 | 200A-13 | 200*120*67 |
| 23 | 200B-13 | 200*120*75 |
| 24 | 200C-13 | 200*120*113 |
| 25 | 215A-13 | 215*185*85 |
| 26 | 230A-13 | 230*150*87 |
| 27 | 255A-13 | 255*230*100 |
| 28 | 300A-13 | 300*270*110 |
| 29 | 320A-13 | 320*240*110 |
| 30 | 330A-13 | 330*300*90 |
Custom Services
1, Change Color, Materail to PC or flame retardant
2, Drill holes
3, Silk Screen
4, Install terminal block
5, Connecting cable gland
6, Install metal/plastic wall mount
7, Developing new moulds
Application
Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation
Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.
