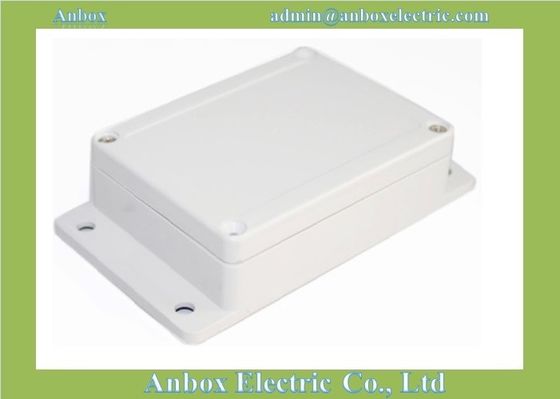

115*85*35mm Waterproof Electrical Enclosures Plastic

115*85*35mm Custom Enclosures IP65 Waterproof Plastic Boxes For Electronic In Grey

Features

Multiple Install methods:

1, Fix the boxes to the designated location directly through the screws

2, Install hangers, make it flexible and convenient to install on the places needed

Erection Column

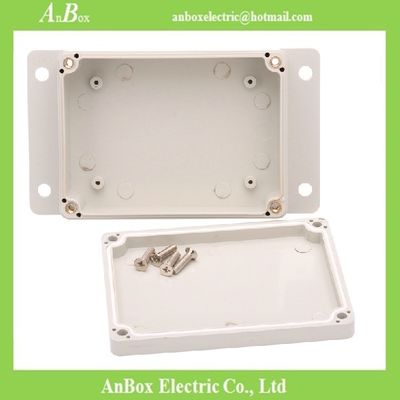

Setted with several bosses inside of the box,

very convience to install the PCB,DIN Rail, etc.

Brass thread inserts

We molded the brass thread inserts into the enclosure, make the box fit better.

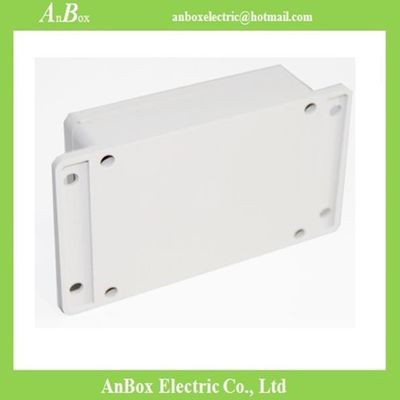

Wall mounting ears

With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency

Specifications

1, Model:115A-13

2,Material: ABS

3, Color: Grey

4, Weatherproofing via user-fitted O-ring (supplied)

5, Size:115*85*35mm

6, Assembly screws included.

7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.

Reference Drawing
