ABS 100*68*50mm IP65 Plastic Electrical Junction Box

I'm Online Chat Now
Good quality and good service.Very professional supplier, we will have nice cooperation in the near future.

—— Kim

Product was good quality! Fast Shipping! Service was excellent and very helpful. Item arrive quickly.

—— Pierre

Good company with nice service and high quality.One of our reliable supplier.Goods are delivered in time and nice package.

—— Houston

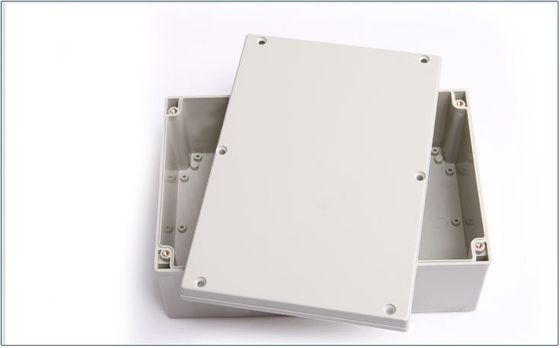

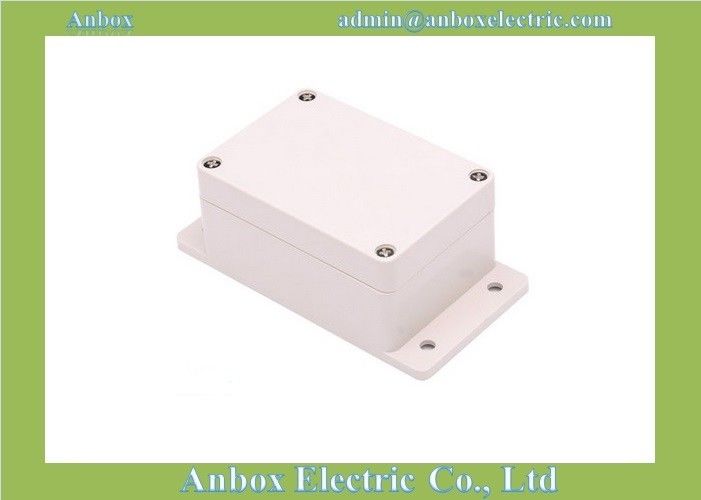

ABS 100*68*50mm IP65 Plastic Electrical Junction Box

ABS 100*68*50mm IP65 Plastic Electrical Junction Box
ABS 100*68*50mm IP65 Plastic Electrical Junction Box ABS 100*68*50mm IP65 Plastic Electrical Junction Box ABS 100*68*50mm IP65 Plastic Electrical Junction Box ABS 100*68*50mm IP65 Plastic Electrical Junction Box ABS 100*68*50mm IP65 Plastic Electrical Junction Box ABS 100*68*50mm IP65 Plastic Electrical Junction Box

Large Image :  ABS 100*68*50mm IP65 Plastic Electrical Junction Box Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: 100B-13
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $1~$10
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
External Size: 100*68*50mm Protection Level: IP65
Type: Junction Box Material: ABS
Color: Grey Wall Thinkness: About 3mm
OEM: Available Lead Time: 7 Days
Packing: Pp Bag For Each Box, Several Boxes To A Carton Shipping: DHL/UPS/TNT/Fedex/China Post/sea/etc.
Payment: Western Union, T/T
High Light:

50mm Plastic Electrical Junction Box

,

100*68mm Plastic Electrical Junction Box

,

100B plastic box for electronic projects



100*68*50mm IP65 projector wall mount plastic project enclosures

Specifications

1, Model:100B-13

2,Material: ABS

3, Color: Grey

4, Weatherproofing via user-fitted O-ring (supplied)

5, Size:100*68*50mm

6, Assembly screws included.

7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.



Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screw
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime

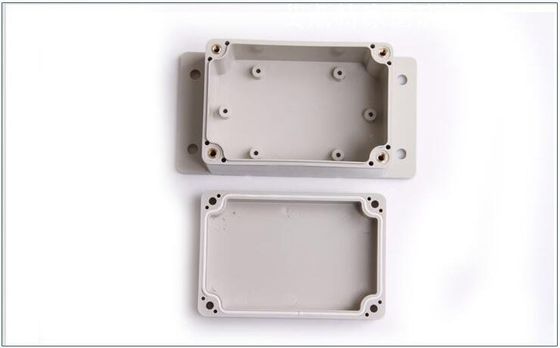

Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better

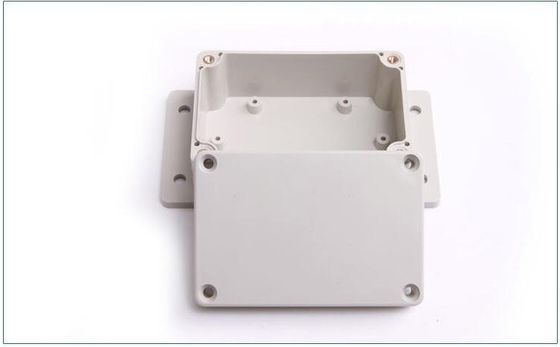

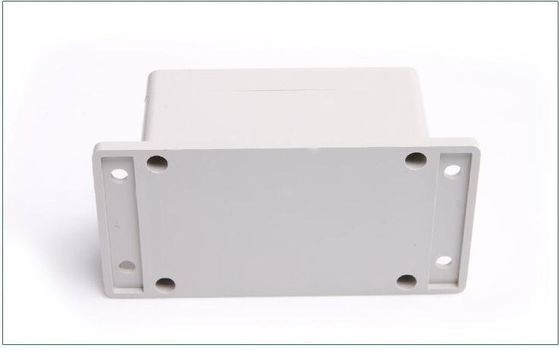

Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency



Reference Drawing

ABS 100*68*50mm IP65 Plastic Electrical Junction Box 0



Other sizes



P.N Model No. Size
with wall mounting
1 63A-13 63*58*35
2 76A-13 76*70*38
3 83A-13 83*58*33
4 100A-13 100*68*40
5 100B-13 100*68*50
6 115A-13 115*85*35
7 115B-13 115*90*55
8 115C-13 115*90*68
9 120A-13 120*81*65
10 125A-13 125*100*52
11 145A-13 145*120*60
12 158A-13 158*90*46
13 158B-13 158*90*64
14 160A-13 160*90*80
15 160B-13 160*100*56
16 160C-13 160*110*96
17 160D-13 160*160*90
18 180A-13 180*150*70
19 192A-13 192*100*45
20 192B-13 192*100*62
21 192C-13 192*188*70
22 200A-13 200*120*67
23 200B-13 200*120*75
24 200C-13 200*120*113
25 215A-13 215*185*85
26 230A-13 230*150*87
27 255A-13 255*230*100
28 300A-13 300*270*110
29 320A-13 320*240*110
30 330A-13

330*300*90
