| External Size: | 192*100*62mm | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Junction Box | Function: | Install Circuit Board |
| Application: | Electric | Fittings: | Din Rail,cable Gland |
| High Light: | 192x100x62mm Plastic Electrical Junction Box,CE Plastic Electrical Junction Box,Rectangular small din rail enclosure |
||

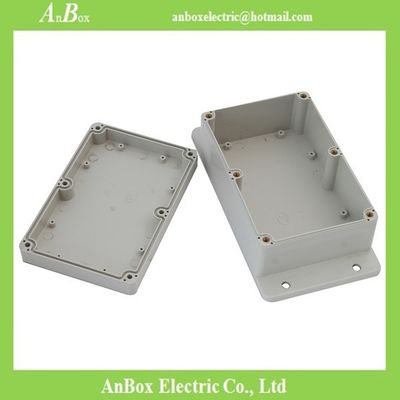

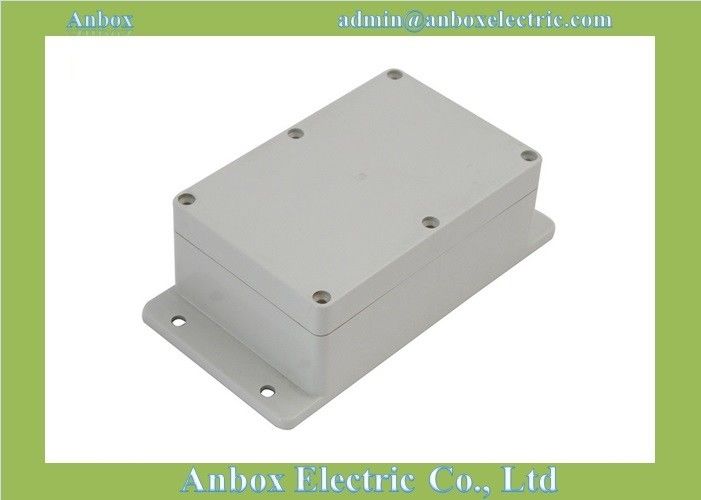

192x100x62mm IP65 Grey Colour Rectangular Junction Box For Din Rail Enclosure With Flange
1, Model:192B-13
2,Material: ABS
3, Color: Grey
4, Components: Lid, base, O-ring, screws.
5, Size:192*100*22mm
6, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.
Reference Drawing
Other sizes
| P.N | Model No. | Size with wall mounting |
| 1 | 63A-13 | 63*58*35 |
| 2 | 76A-13 | 76*70*38 |
| 3 | 83A-13 | 83*58*33 |
| 4 | 100A-13 | 100*68*40 |
| 5 | 100B-13 | 100*68*50 |
| 6 | 115A-13 | 115*85*35 |
| 7 | 115B-13 | 115*90*55 |
| 8 | 115C-13 | 115*90*68 |
| 9 | 120A-13 | 120*81*65 |
| 10 | 125A-13 | 125*100*52 |
| 11 | 145A-13 | 145*120*60 |
| 12 | 158A-13 | 158*90*46 |
| 13 | 158B-13 | 158*90*64 |
| 14 | 160A-13 | 160*90*80 |
| 15 | 160B-13 | 160*100*56 |
| 16 | 160C-13 | 160*110*96 |
| 17 | 160D-13 | 160*160*90 |
| 18 | 180A-13 | 180*150*70 |
| 19 | 192A-13 | 192*100*45 |
| 20 | 192B-13 | 192*100*62 |
| 21 | 192C-13 | 192*188*70 |
| 22 | 200A-13 | 200*120*67 |
| 23 | 200B-13 | 200*120*75 |
| 24 | 200C-13 | 200*120*113 |
| 25 | 215A-13 | 215*185*85 |
| 26 | 230A-13 | 230*150*87 |
| 27 | 255A-13 | 255*230*100 |
| 28 | 300A-13 | 300*270*110 |
| 29 | 320A-13 | 320*240*110 |
| 30 | 330A-13 | 330*300*90 |
