Product Details:
Payment & Shipping Terms:
|
External Size: | 120*81*65mm | Protection Level: | IP65 |
---|---|---|---|
Type: | Junction Box | Material: | ABS |
Color: | Grey | Wall Thinkness: | About 3mm |
OEM: | Available | Lead Time: | 7 Days |
High Light: | 65mm Plastic Electrical Junction Box,81mm Plastic Electrical Junction Box,IP65 Plastic Electrical Junction Box |

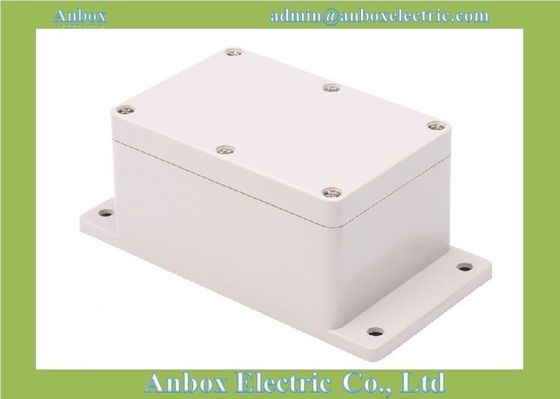

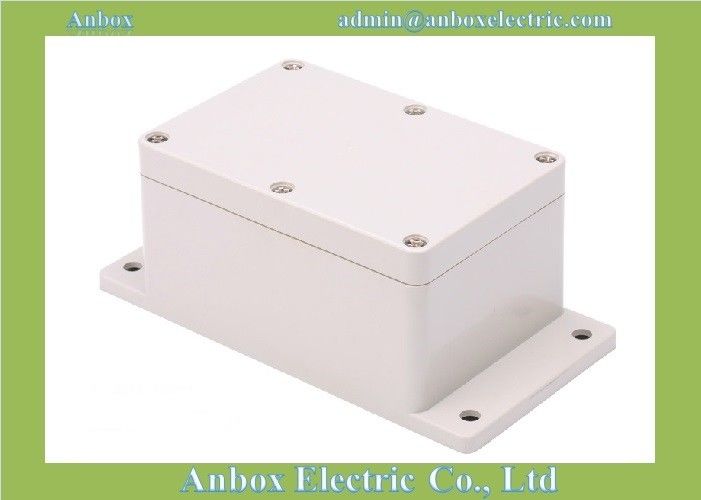

120*81*65mm IP65 Waterpoof Outdoor Electrical Box Enclosure In Grey
1, Model:120A-13
2,Material: ABS
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied)
5, Size:120*81*65mm

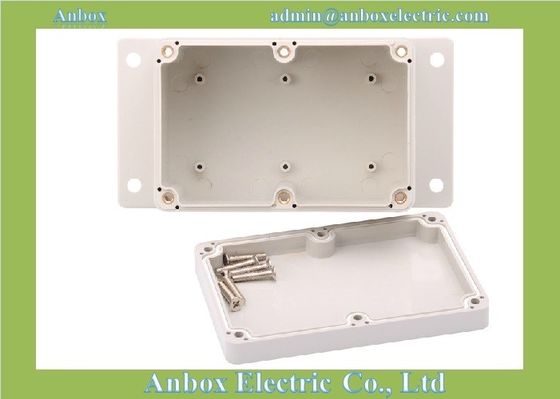

6, Assembly screws included.
7, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.
Reference Drawing
Other sizes
P.N | Model No. | Size with wall mounting |
1 | 63A-13 | 63*58*35 |
2 | 76A-13 | 76*70*38 |
3 | 83A-13 | 83*58*33 |
4 | 100A-13 | 100*68*40 |
5 | 100B-13 | 100*68*50 |
6 | 115A-13 | 115*85*35 |
7 | 115B-13 | 115*90*55 |
8 | 115C-13 | 115*90*68 |
9 | 120A-13 | 120*81*65 |
10 | 125A-13 | 125*100*52 |
11 | 145A-13 | 145*120*60 |
12 | 158A-13 | 158*90*46 |
13 | 158B-13 | 158*90*64 |
14 | 160A-13 | 160*90*80 |
15 | 160B-13 | 160*100*56 |
16 | 160C-13 | 160*110*96 |
17 | 160D-13 | 160*160*90 |
18 | 180A-13 | 180*150*70 |
19 | 192A-13 | 192*100*45 |
20 | 192B-13 | 192*100*62 |
21 | 192C-13 | 192*188*70 |
22 | 200A-13 | 200*120*67 |
23 | 200B-13 | 200*120*75 |
24 | 200C-13 | 200*120*113 |
25 | 215A-13 | 215*185*85 |
26 | 230A-13 | 230*150*87 |
27 | 255A-13 | 255*230*100 |
28 | 300A-13 | 300*270*110 |
29 | 320A-13 | 320*240*110 |
30 | 330A-13 | 330*300*90 |
FAQ
1. Material and color can be customized.
2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.
3. For modification, there will be surcharge.
4. Drawings from website is just for reference .
5. Making toolings will charge tooling cost.
6. For such waterproof case, we can produce 2 types, one with non-transparent case and another one with transparent lid case.
