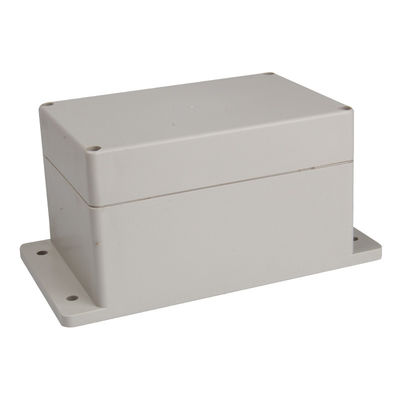

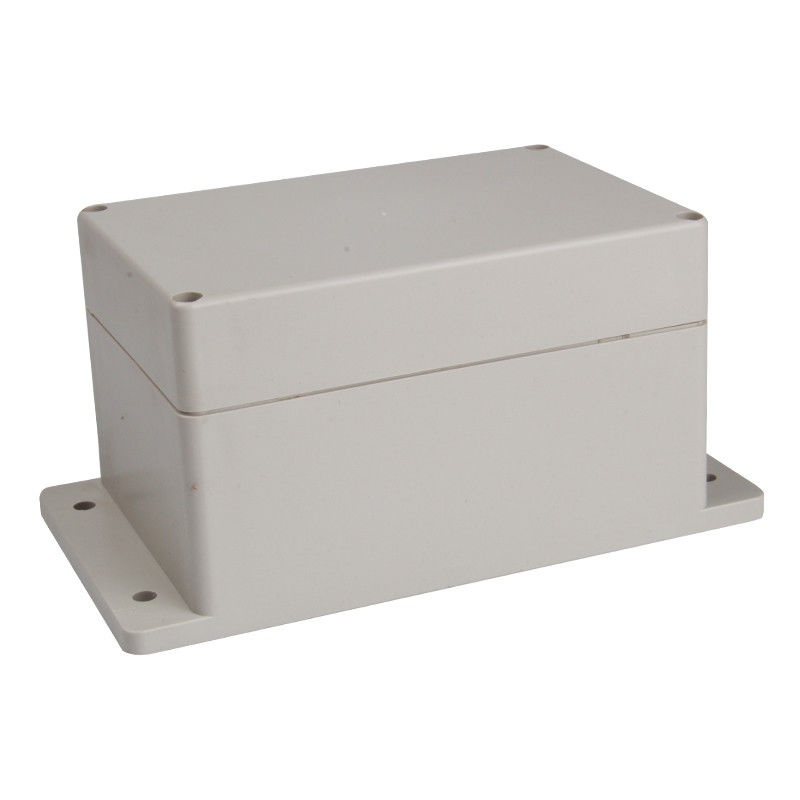

Rectangular 160x110x96mm Custom Plastic Cases For Electronics

Rectangular 160x110x96mm Custom Plastic Cases For Electronics
Rectangular 160x110x96mm Custom Plastic Cases For Electronics Rectangular 160x110x96mm Custom Plastic Cases For Electronics Rectangular 160x110x96mm Custom Plastic Cases For Electronics Rectangular 160x110x96mm Custom Plastic Cases For Electronics

Large Image :  Rectangular 160x110x96mm Custom Plastic Cases For Electronics Get Best Price

Product Details:
Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: 160C-13
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $2~$5
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: ABS Color: Grey
Wall Thinkness: About 3mm OEM: Available
Type: Junction Box Usage: Electric
High Light:

160x110mm Custom Plastic Cases

,

96mm Custom Plastic Cases

,

41.5mm custom plastic cases for electronics



160x110x96mm Rectangular Watertight Junction Box For Industrial

Specifications

1, Model: 160C-13

2, Material: ABS

3, Color: Grey

4, Components: Lid, base, O-ring, screws.

5, Size:160x110x96mm

6, Print/laser logo, dril holes, Fireproof, UV reisitance, etc. is acceptable.



Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screw
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime

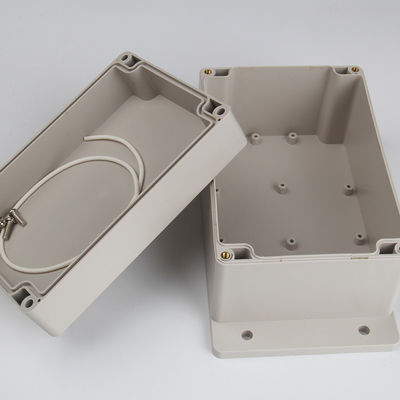

Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better

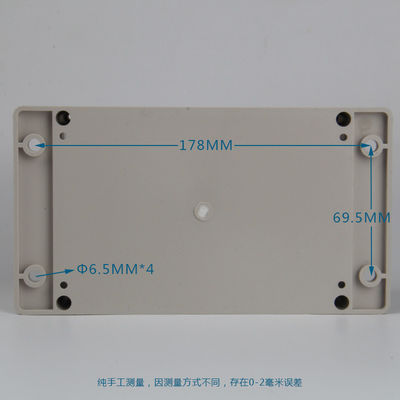

Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency

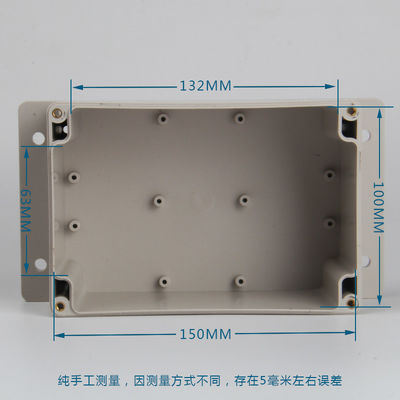

Reference Drawing



Rectangular 160x110x96mm Custom Plastic Cases For Electronics 0







Other sizes



P.N Model No. Size
with wall mounting
1 63A-13 63*58*35
2 76A-13 76*70*38
3 83A-13 83*58*33
4 100A-13 100*68*40
5 100B-13 100*68*50
6 115A-13 115*85*35
7 115B-13 115*90*55
8 115C-13 115*90*68
9 120A-13 120*81*65
10 125A-13 125*100*52
11 145A-13 145*120*60
12 158A-13 158*90*46
13 158B-13 158*90*64
14 160A-13 160*90*80
15 160B-13 160*100*56
16 160C-13 160*110*96
17 160D-13 160*160*90
18 180A-13 180*150*70
19 192A-13 192*100*45
20 192B-13 192*100*62
21 192C-13 192*188*70
22 200A-13 200*120*67
23 200B-13 200*120*75
24 200C-13 200*120*113
25 215A-13 215*185*85
26 230A-13 230*150*87
27 255A-13 255*230*100
28 300A-13 300*270*110
29 320A-13 320*240*110
30 330A-13 330*300*90






Custom Services

1,  Change Color, Materail to PC or flame retardant



2, Drill holes



3, Silk Screen



4, Install terminal block



5,  Connecting cable gland



6, Install metal/plastic wall mount



7, Developing new moulds
